                 Professional Vacuum Enema Twisting Production Line High Productivity

1.Product introduction of Vacuum Enema Twisting Production Line:

1. Main function: It is suitable for filling small-diameter kink products such as protein casings (kissing sausage, table roast) nylon casings.

2. Main features

1) The machine is made of high-quality stainless steel, easy to clean, and in line with national hygiene standards.

2) The main pneumatic control units are all imported components, which improves the operation accuracy and service life of the equipment, and is safe and reliable.

3) The various actions and parameters of the machine are all modified on the control box in front of the machine, which is simple and clear, and the operation is very convenient.

4) The running speed can be adjusted steplessly according to the needs of users.

5) The quantitative size of the length is set by the user changing the timing belt.

6) Casing automatic detection system (automatic stop without casing).

7) Kinker automatic flip system.

8) On-line with the filling machine to realize continuous automatic production.

9) High efficiency and low cost.

3. The main technical parameters

1) The various actions and parameters of the machine are all modified in the filling machine, which is simple and clear, and the operation is very convenient.

2) The running speed can be adjusted steplessly according to the needs of users.

3) On-line with the filling machine to realize continuous automatic production.

4) High efficiency and low cost.

High Speed Kinking Machine WM-GSNJ-II

Size

600*1250*1400mm

Weight

450kg

Voltage

380V-400V 50HZ

Power

4KW

Speed

Stepless speed regulation 0-200rpm

Capacity

300-500pcs/min

Air Compressor Need

0.5---0.8MPa

Transfer Method

servo drive

Suitable For Specifications

Length40-200mm diameter 16-30mm

Control

Man-machine interface matching filling machine

Induction Method

Pneumatic sensor switch, proximity switch

Electrical Components

Inovance//Hitec//Kunlun Tongtai

Waterproof Level

Main IP65





WM-XG2250 Sausage Hanging Machine

1) The various actions and parameters of the machine are all modified in the filling machine, which is simple and clear, and the operation is very convenient.

2) The running speed can be adjusted steplessly according to the needs of users.

3) On-line with the filling machine to realize continuous automatic production.

4) High efficiency and low cost.



Power

1.5KW

Voltage

AC380V-400V 50HZ

Capacity

3600kg/h

Running Speed

Stepless speed regulation 0-1000

Twisting Speed

Stepless speed regulation 0-450 times/min

Weight

160L

Size

3000*635*1144mm



WM-ZKGC3600 Vacuum quantitative filling machine

Voltage

380v   50HZ

power

8KW

Capacity

3600kg/h

Filling Speed

Stepless speed regulation 0-450 times/min

Twisting Speed

Stepless speed regulation 0-450 times/min

Hopper Capacity

220L

Vacuum Pump

German Puxu 2.0 series

Vacuum Degree

2×102mbar

Agitator Device

Directional spiral auger

Single Irrigation Pipe

Φ22mm   Φ28mm  Φ35mm

Twister (optional)

Standard configuration of kink tube: Φ10, Φ12, Φ15, Φ19mm (standard configuration)

(Material: 316L)     Φ8 , Φ9mm (special customization)

Rubber gasket:  Φ13, Φ16, Φ19mm (standard configuration)

Stop ring:    Φ10, Φ12, Φ15, Φ19mm (standard configuration)

Adjustment sleeve:    Φ14, Φ20, Φ26 (standard configuration)

Hand-held sleeve:    Φ10, Φ12, Φ15, Φ19mm (standard configuration)

Follow-up sleeve:    Φ10, Φ12, Φ15, Φ19mm (standard configuration)

Synchronous belt:

T10-530-17 Magodix (standard configuration) rear box

T10-500-10 Magodix (standard configuration) front box

T10-530-25 Magodix (standard configuration) kink motor

Lifting Device (optional)

Hydraulic

Electrical Configuration

KP700---Siemens human-machine interface (global European version)

SINAMICS-V90-3.5KW Siemens servo drive (filling)

SINAMICS-V90-1.5KW Siemens servo drive (kink)

PLC-CPU1214C  Siemens PLC

PSU100L      Siemens switching power supply

KM AC contactor  Siemens series

Emergency stop switch---German Mueller

Reducer

Imported--SITI-2 (standard)

Machine Weight

Approximately 780 kg (without lift)

Approximately 1260 kg (fully equipped)

Size

1130X1150X1850(mm) without lifting

1960X1450X1850(mm) fully equipped

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586
Whatsapp/Wechat: +8618838002509
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.


2.Pictures  of Vacuum Enema Twisting Production Line:

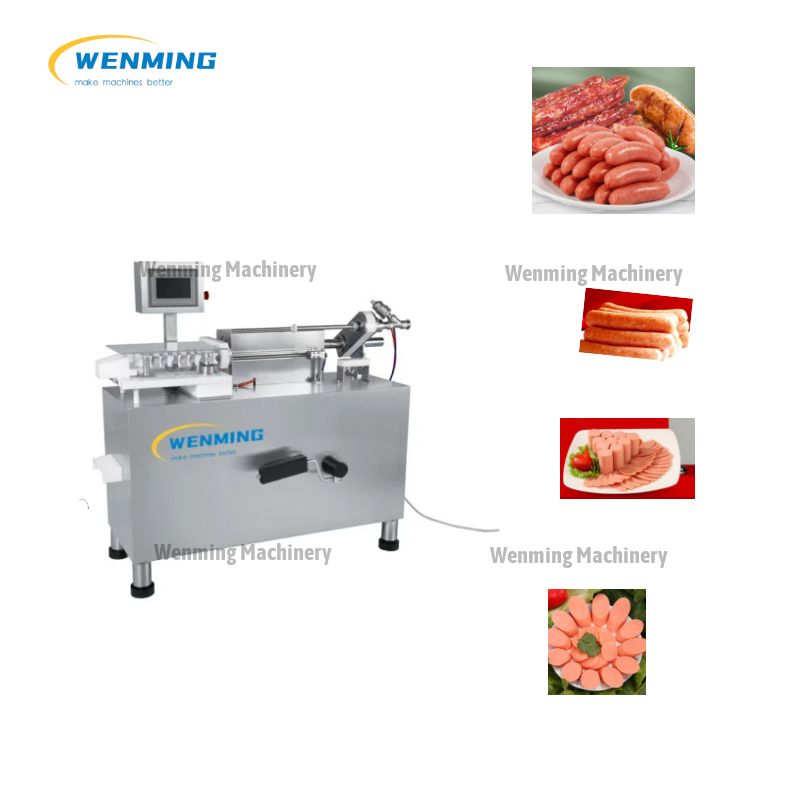

Vacuum Enema Twisting Production Line
Vacuum Enema Twisting Production Line
Vacuum Enema Twisting Production Line
Vacuum Enema Twisting Production Line
Vacuum Enema Twisting Production Line

Vacuum Enema Twisting Production Line
