Automatic Cherry Pitting Machine Cherry Corer Machine

1.Product introduction of Automatic Cherry Pitting Machine:

1. Core Features
  1. High Automation & Efficiency
The automatic cherry pitter features high automation. Equipped with a mold conveyor belt for automatic feeding and core-punching, it only requires pouring cherries into the hopper to complete pit-flesh separation. It can work continuously without interruption, completely solving the problems of low efficiency, high labor cost and time consumption of manual pitting.
  1. Stable Structure & Easy Maintenance
The machine structure is welded with 304 stainless steel thick-walled square tubes and channel steels, which enhances stability during operation. All parts are assembled with bolts, making operation and maintenance more convenient and efficient.
  1. Food-Grade Material & Durability
High-quality 304 stainless steel is adopted for the machine, fully complying with the hygiene standards for food processing equipment. The conveyor belt is wear-resistant, tensile and tear-resistant, ensuring a longer service life.
  1. Easy Operation & Precise Pitting
The pitter is easy to operate and does not require long-term supervision—one person can manage multiple machines at the same time. The transmission system adopts advanced design concepts and standardized components, and the core-punching principle follows machine tool technology. Each machine meets the highest design standards with high precision, achieving a 100% pitting rate while keeping the cherries in their original shape.
2. Working Principle Overview

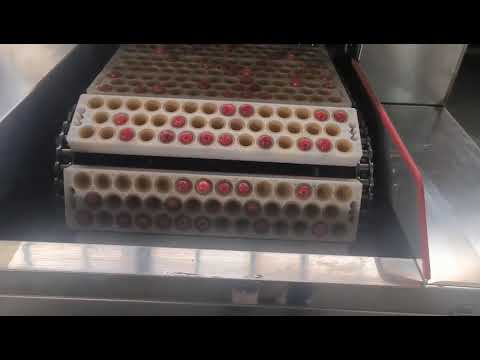

The storage hopper is directly connected to the conveyor belt. First, select the template according to the shape and diameter of the cherries, then pour the cherries into the storage hopper to realize automatic feeding and conveying. After falling onto the conveyor belt, the cherries automatically enter the template holes; excess cherries are brushed into other holes by a brush, ensuring a feeding efficiency of over 95% and greatly improving work efficiency.
The positioned cherries are further conveyed forward, and during the conveying process, core-punching is completed using machine tool technology. The pits fall into the pit-discharging dustpan and flow out automatically for centralized collection. The pitted cherries are then conveyed to the next stage for automatic fruit-dropping via water flushing, ensuring the discharged cherries remain in their original shape. Finally, the cherries fall into the dustpan and flow out automatically for collection, achieving complete separation of cherries and pits.
For inquiries about customization, pricing or after-sales service, please contact Zhengzhou Wenming Machinery Co.,Ltd—your reliable partner for high-quality food processing equipment.

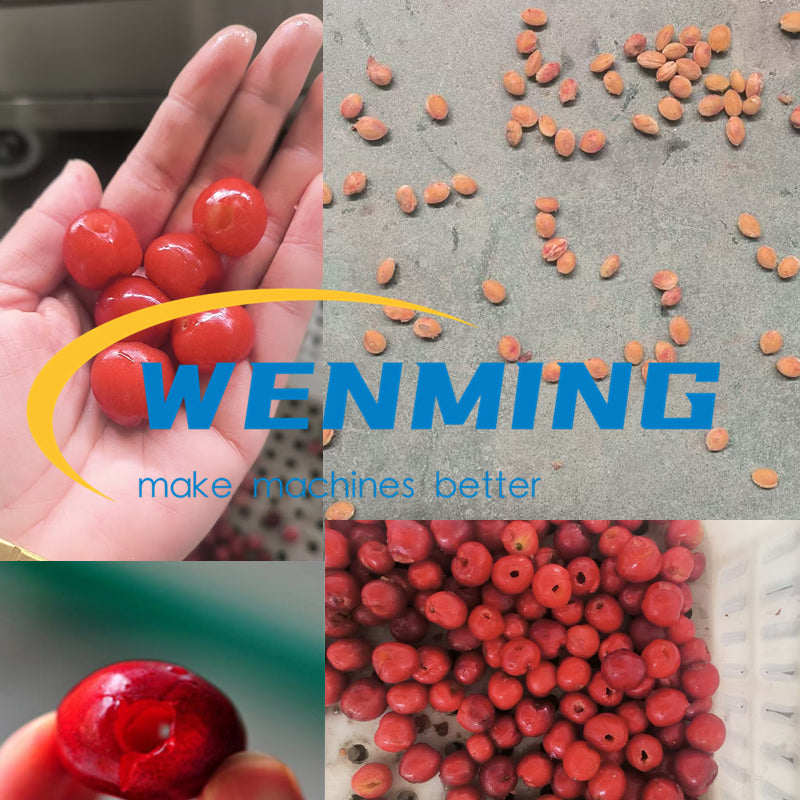

See the Pitting result:

Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine

2.Technical parameters of Automatic Cherry Pitting Machine:

Model

WM-QHL1435

Capacity

1435pcs/min

86100pcs/h

About 360-600kg/h

Different Fruits Diameter

small（∅13—∅16）
middle（∅16—∅20）
big（∅20—∅25）

Voltage

380V

Power

1.5Kw

Machine Size

2000*1080*1230mm

Weight

420kg

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586
Whatsapp/Wechat：  +8615937826701 +8617505235613
Email:  info@wmmachinery.com  wm01@wmmachinery.com
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.
Click to leave your information and requirements

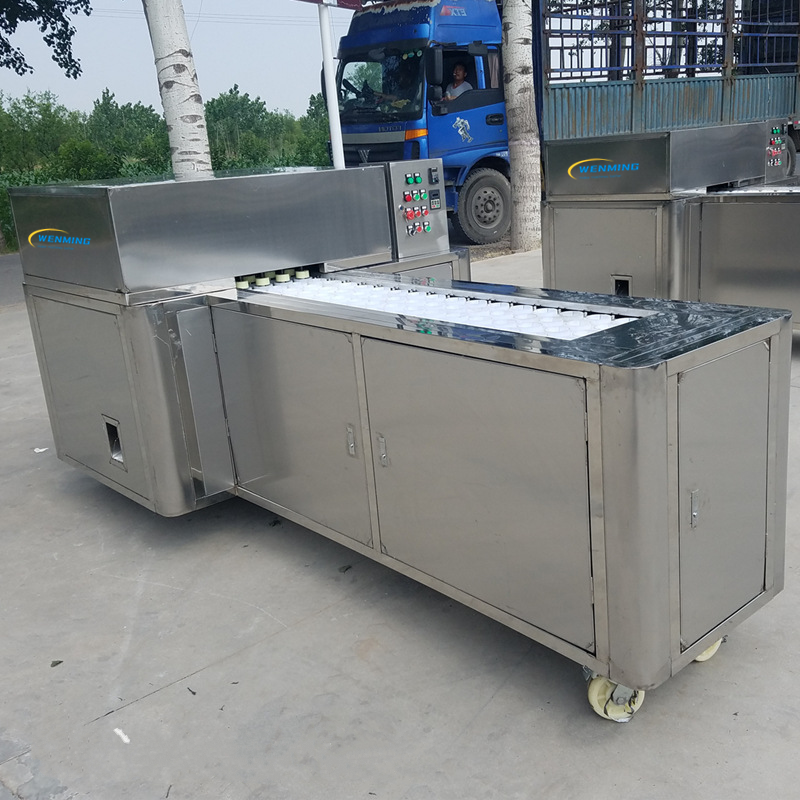

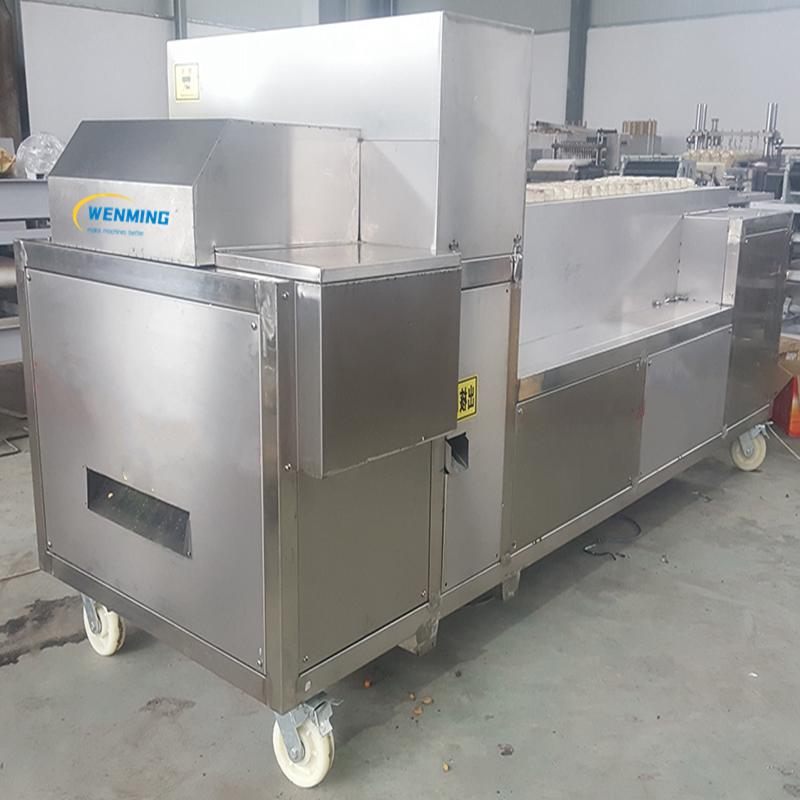

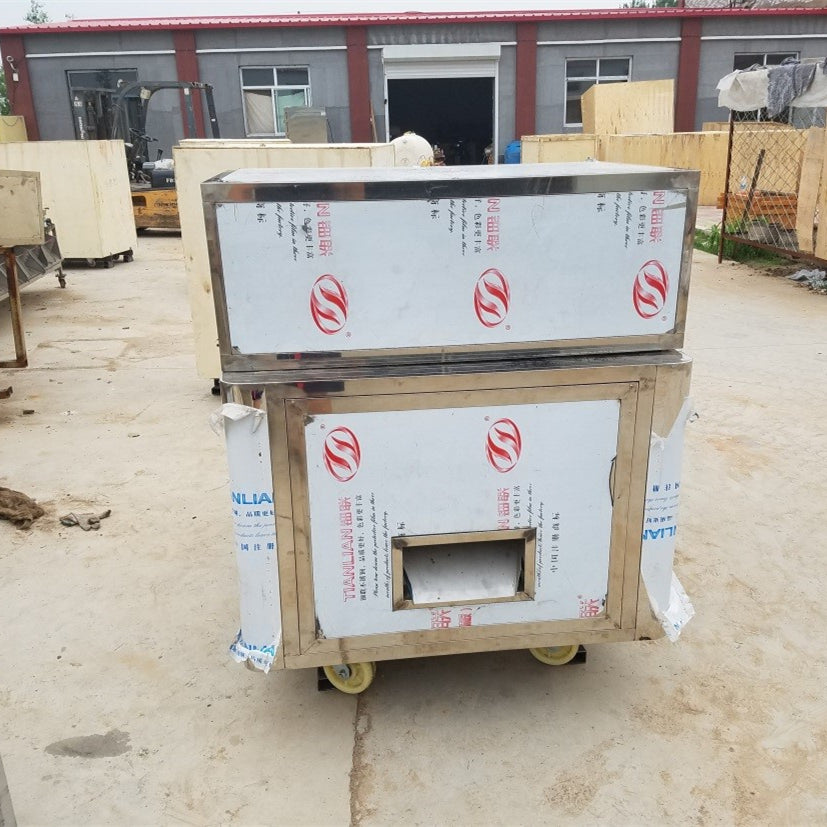

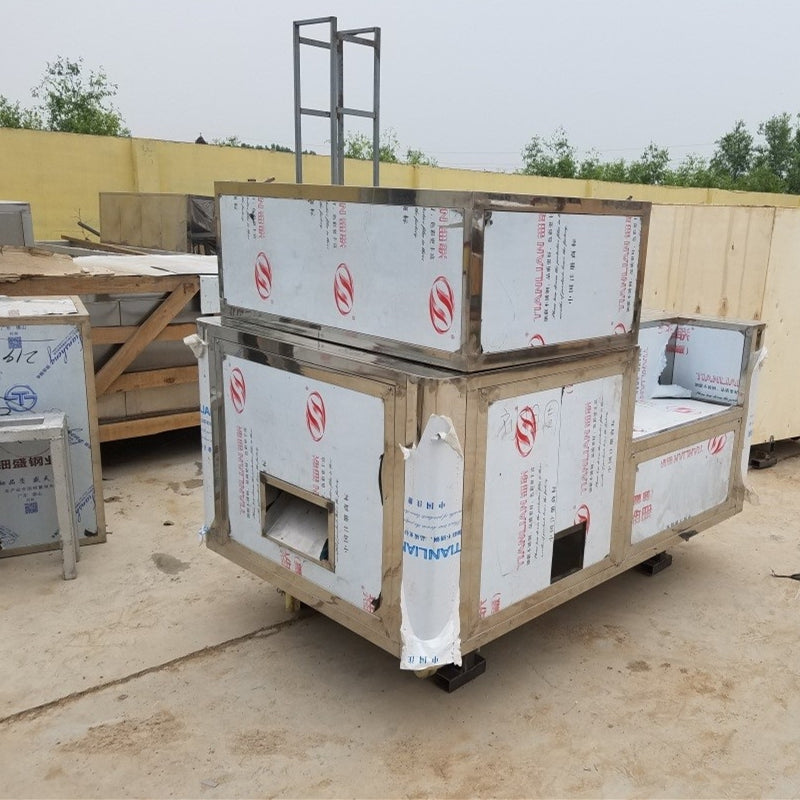

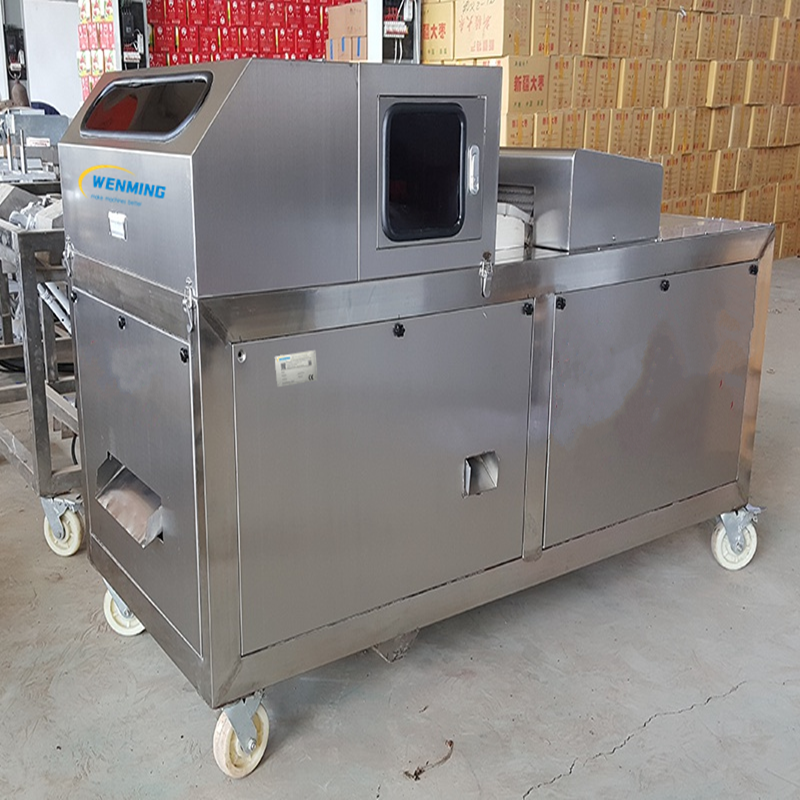

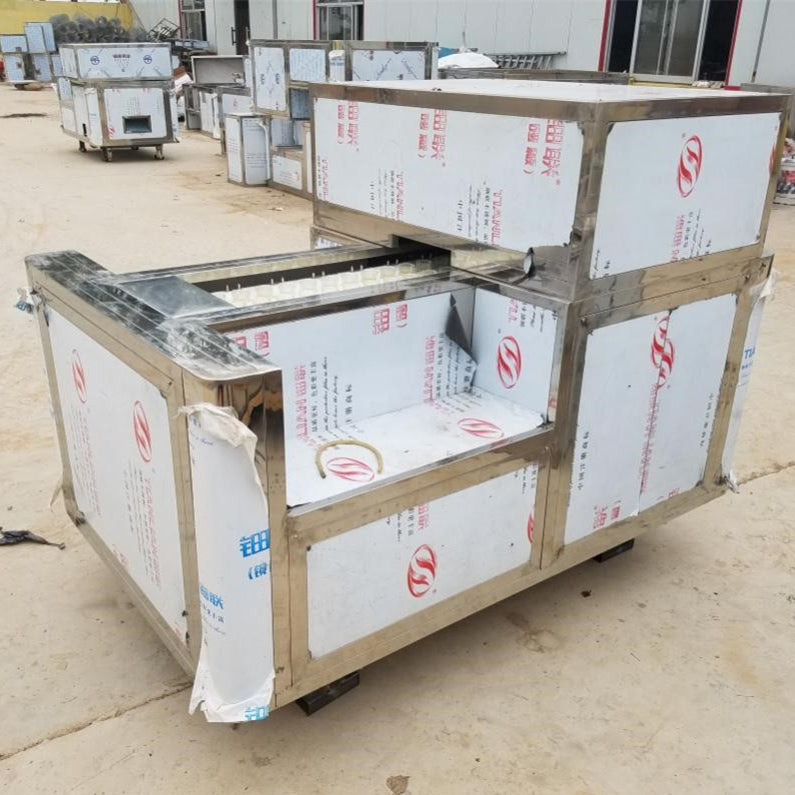

3.Automatic Cherry Pitting Machine:

Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine

Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine
Automatic Cherry Pitting Machine
