20 Years of Experience Gold Coating Machine Metal Coating Machine
1:Product Description of Metal Coating Machine
Arc spray machine to melt the metal material by arc that between two pieces of conductive wire, and then send the molten metal atomization to the product surface with high speed. The arc spray machine is consist of power supply, control device, arc spray gun, wire feeding machine and compressed air supply system, etc. It has reliable performance, low failure rate, material select widely, easy to know the spraying process, and coating stable,etc. It is the most widely application of thermal spraying technology currently, widely used in: power plant boiler corrosion wear resistant coating; steel structure spraying zinc aluminum coating to anti-corrosion; ship hydraulic equipment anti-corrosion spray coating,petrochemical tank anti-corrosion spray coating; and repair all kinds of hardware, axial,rolls, iron products spraying zinc and aluminum coating to anti-corrosion ; paper dryer wear repair; printing roller pressure wound repair, etc. It consist of power supply, controal device, arc spray gun, wire feeding machine. Auxiliary equipments: Sand blast machine and air compressor machine.
2:Techncial Parameter of Metal Coating Machine
| Model | WM-ASP300 | WM-ASP400 | WM-ASP600 |
| Voltage | AC 380V 50Hz 3phase | AC 380V 50Hz 3phase | AC 380V 50Hz 3phase |
| Power | 15.8KVA | 18.8KVA | 32.6KVA |
| Input current | AC 22A | AC 22A | AC 22A |
| OCV | DC 20—45 V | DC 20—45 V | DC 20—45 V |
| Voltage adjust class | thick,fine each 3 class total 9class | thick,fine each 3 class total 9class | thick,fine each 3 class total 9class |
| Voltage characteristic | Flat characteristic | Flat characteristic | Flat characteristic |
| Output current | DC 300A | DC 400A | DC600A |
| Load rate | 60% (300A) | 60% (400A) | 60% ( 400A ) |
| Insulation grade | E | E | 乙 |
| Dimension (mm) | 700×500×1010 | 700×500×1010 | 700×500×1010 |
| Gross Weight | 176kg | 195kg | 235Kkg |
| Pressure | >=0.6 MPa | >=0.6 MPa | >=0.6 MPa |
Zhengzhou Wenming Machinery Co.,Ltd
Sales Manager：Ms. Audrey
Office:0086-13-303-831586
Whatsapp/Wechat： +8618703678018
Email: wm18@wmmachinery.com
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.
Click to leave your information and requirements

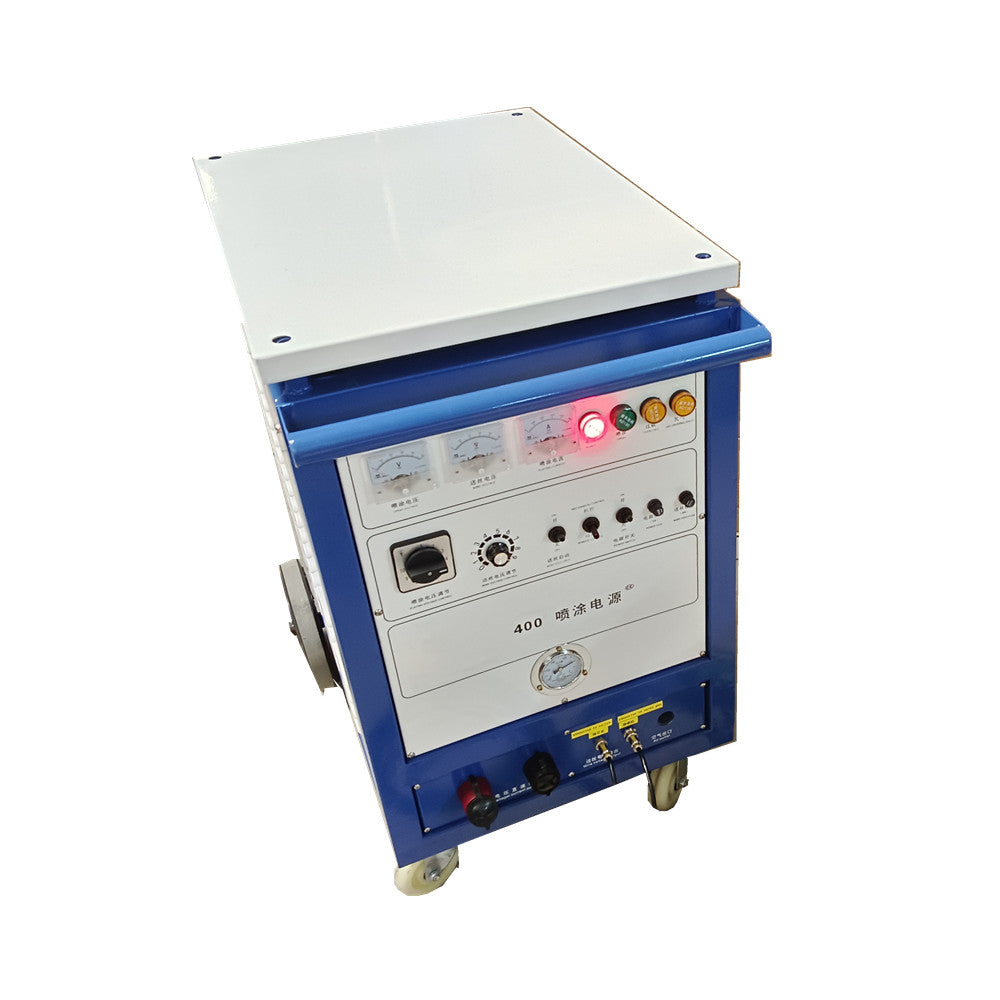

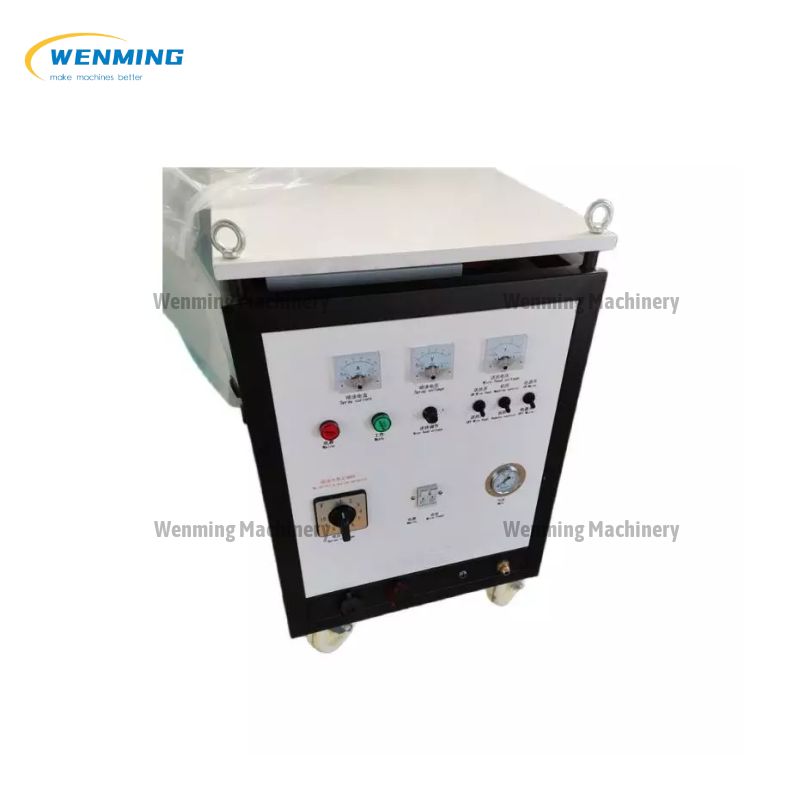

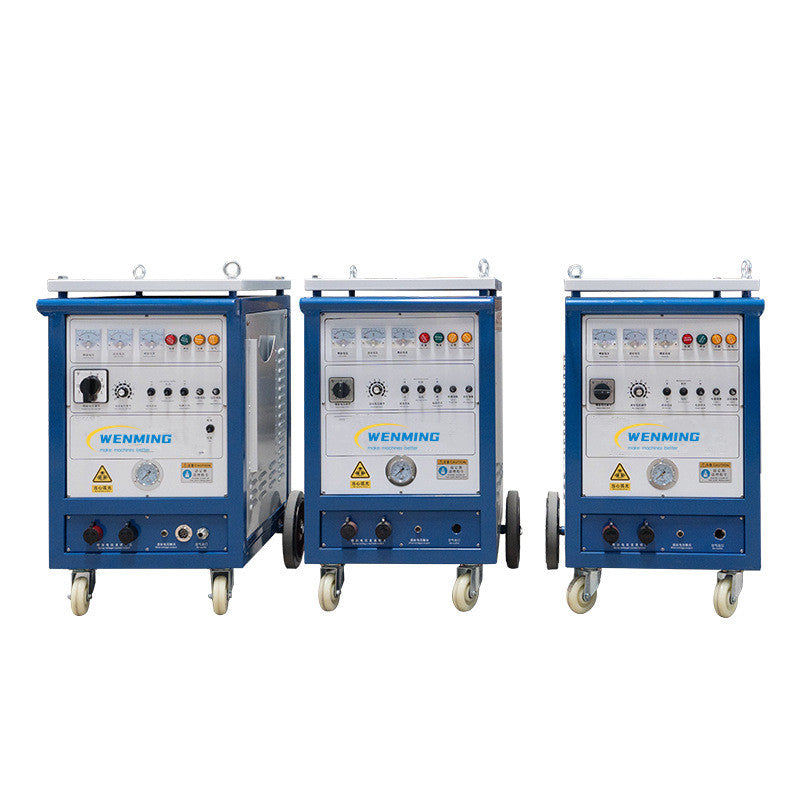

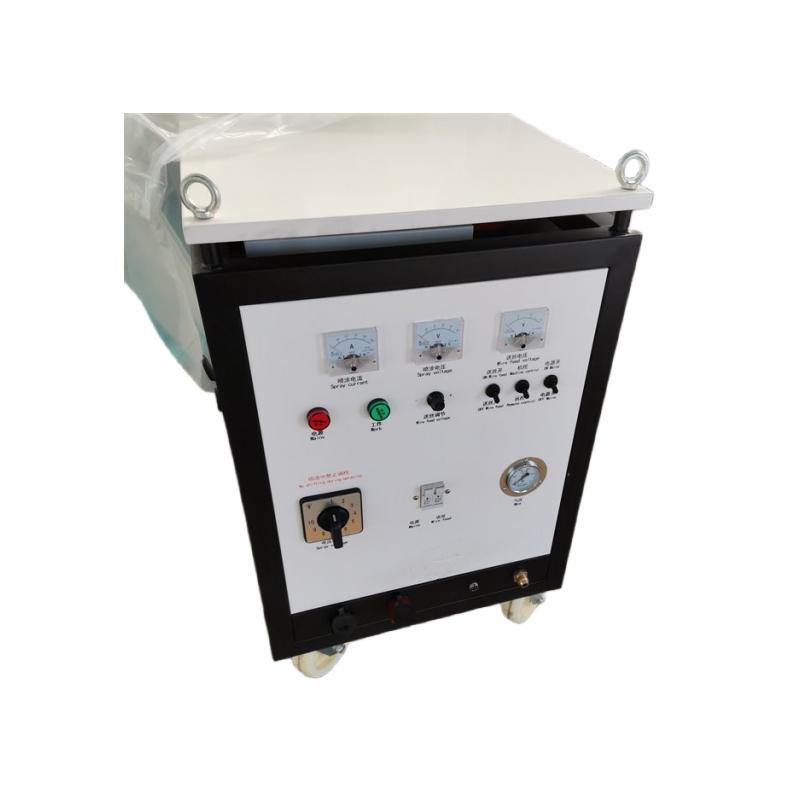

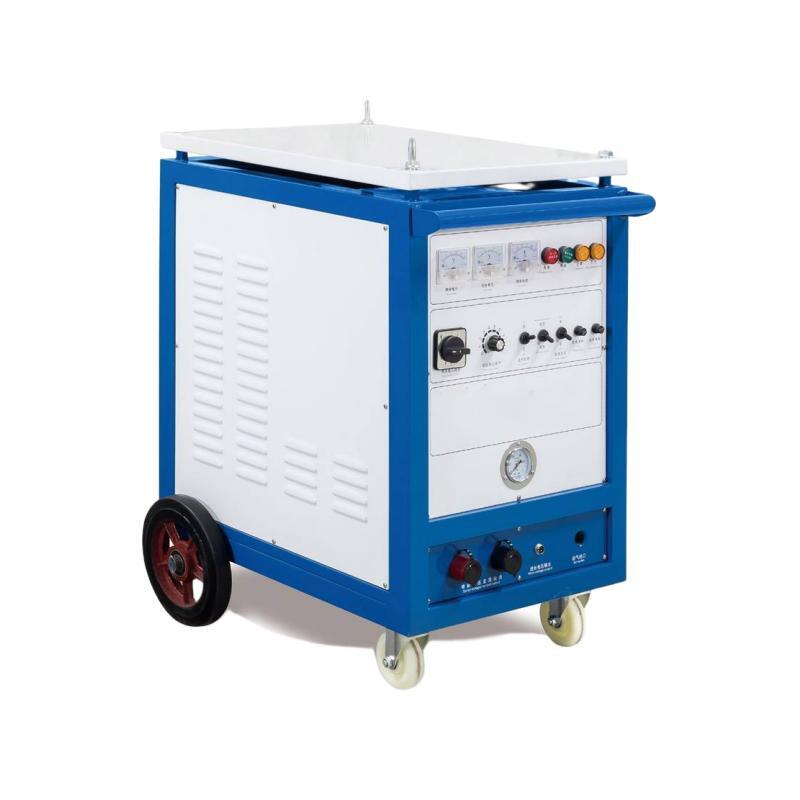

3: Picture of Metal Coating Machine
 |
 |
 |
 |
 |
 |

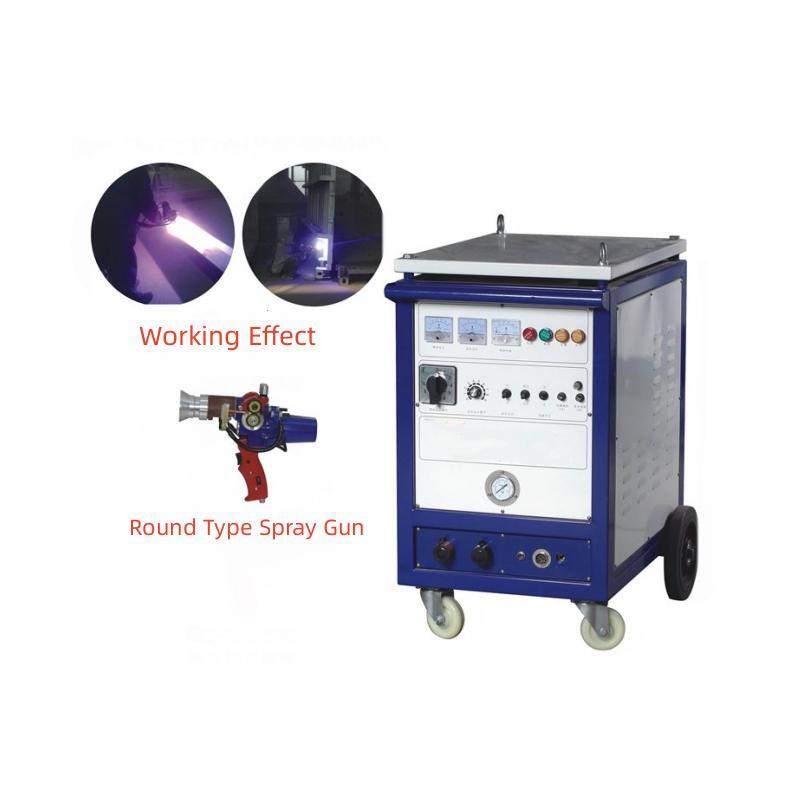

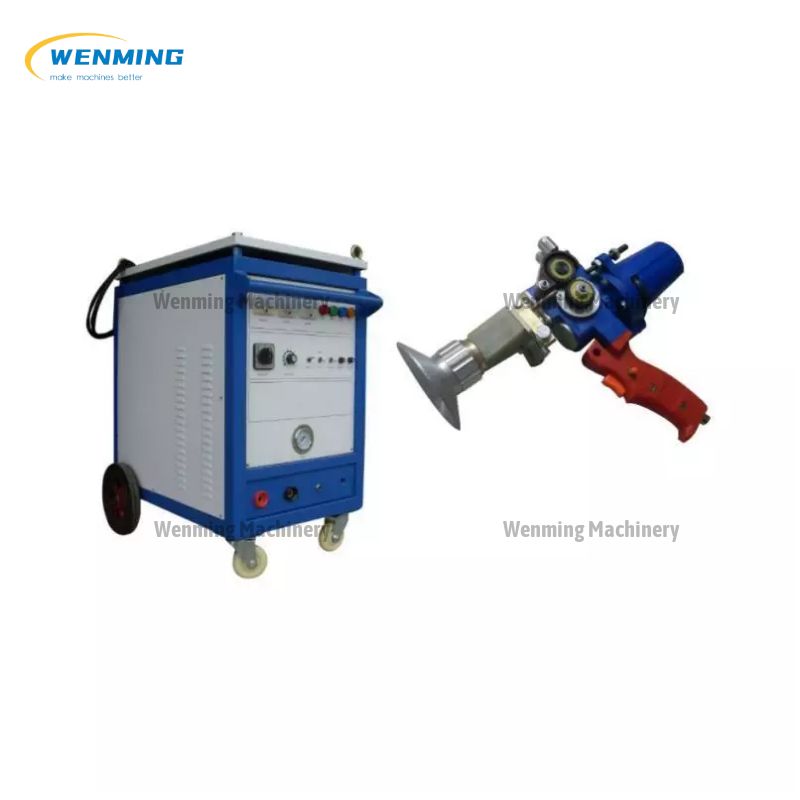

Spray Gun
 |
|
Final Product and Quality Testing  |
