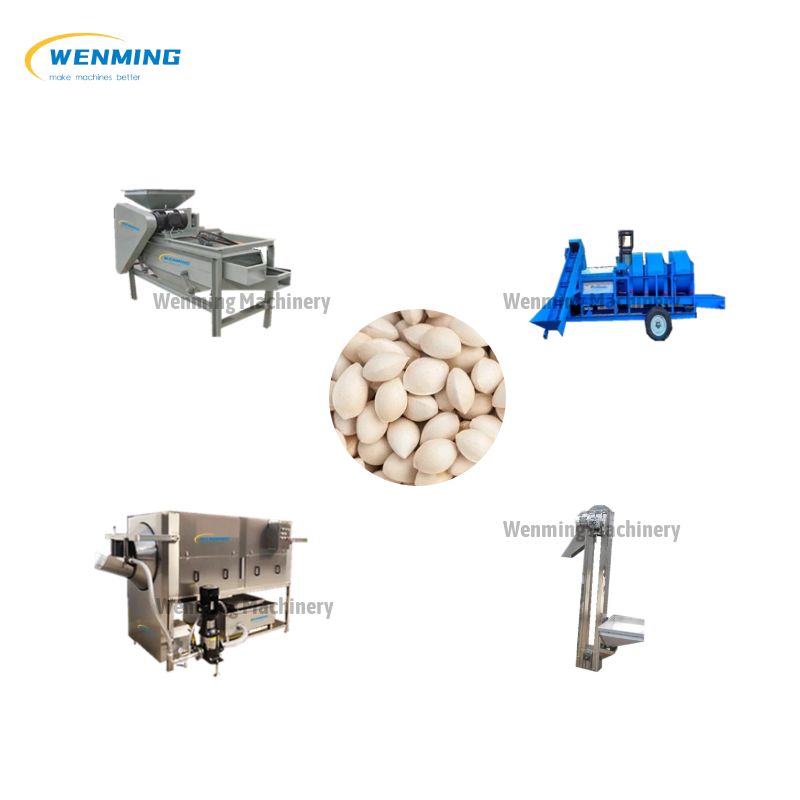

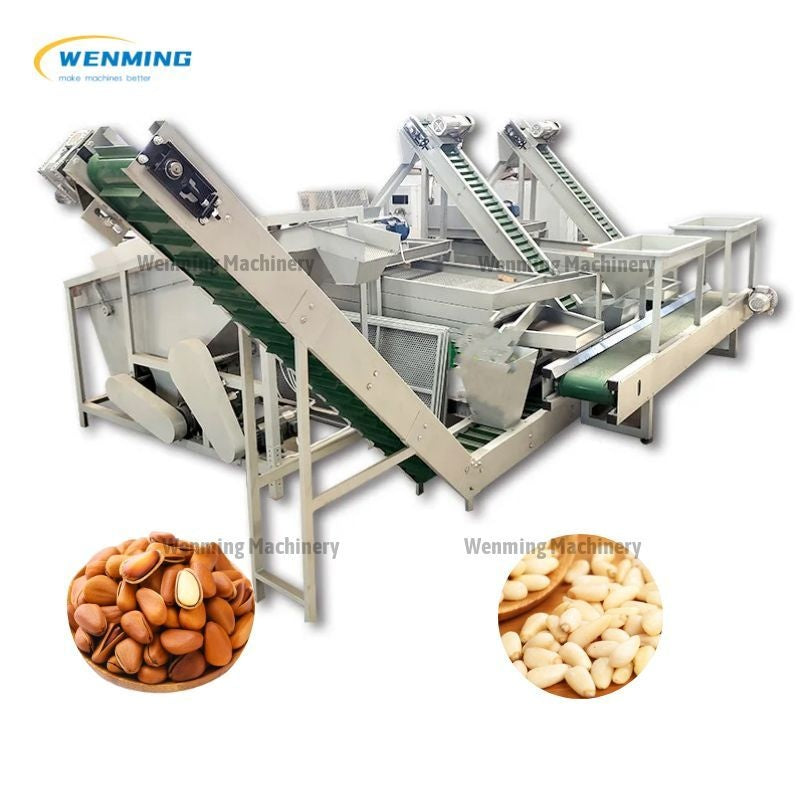

Automatic Pine Nut Shelling Machine Production Line Widely used
1.Product introduction of pine nut shelling machine production line：
Simple production process: raw pine nuts are first graded, from one to three or one to six. Several levels are equipped with several shelling equipment. The graded raw fruit are lifted by an elevator to a shelling machine that meets the size level. For shelling, there are several levels equipped with several lifting and shelling machines; (the finer the classification, the better the shelling effect). After shelling, the shelled kernels are separated by a separator for a second time. The kernels are dried, humidified, and peeled to obtain Finished white nuts.
It can also be equipped with a shelling machine and an elevator. After peeling off one level of specifications, adjust the gap, and then peel off another specification, and so on. This is more troublesome! Not suitable for mass production.
2. Technical parameters & Quotation of pine nut shelling machine production line:
150KG Hourly Output Pin Nut Shelling Machine Production Line Equipment：
|
Production Line Equipment |
Power |
Device Details |
|
Hoist
|
0.75kw/380V/50HZ |
Size:0.5*0.3*3.5m Material: stainless steel, carbon steel for transmission parts |
|
Screening 4-stage Machine (4Thfloor) |
2.2kw/380V/50hz
|
Size:3.2*1*2m Material:carbon steel |
|
Hoist
|
0.75kw |
Size:0.5*0.3*2m Material: stainless steel, carbon steel for transmission parts |
|

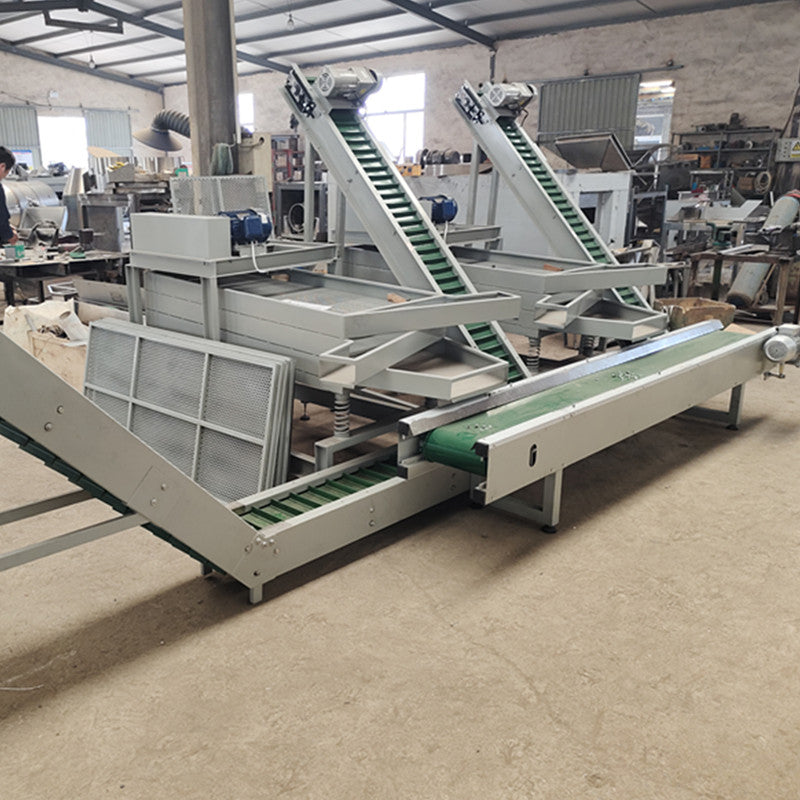

pine nuts Shelling machine contains: Feed hopper - feeding elevator - shelling machine equipped with three-layer screen and spare replacement screen
This picture is a photo of the all-in-one shelling machine and separator. |
Pine Nuts Shelling machine contains: Feeding to the grading pine nut machine - entering the shelling machine for shelling - after shelling - 1st layer sieves out the unshelled ones and then goes to the 2nd level for shelling - 2nd layer sieves out a small amount of kernels The shells are separated by a vertical wind turbine to obtain the kernels - 3-layer sieve to remove the shells
|
Material: carbon steel Shelling motor power: 1.1KW--4 sets, vibration motor 0.18KW--2 sets, secondary wind lifting motor power 1.5KW, secondary centrifugal shelling motor power 0.75KW, separation and separation motor 0.75KW--2 sets Movable screen , 1 spare screen piece is replaceable, Output 200-300kg/h Voltage 380v 50hz. Material: carbon steel |
|
Nut Grading Machine |
Motor power: 0.75kw Voltage:380v Frequency:50hz |
Drum type grading: fixed gap, first divided into broken kernels, half kernels, and then divided into grades below 8 mm 8--10, 10--12 mm 12 mm Size: 2.4*0.6*1.1m Output:150kg/h Weight 180kg |
500KG Hourly Output Pin Nut Shelling Machine Production Line Equipment：
|
Production Line Equipment |
Power |
Device Details |
|

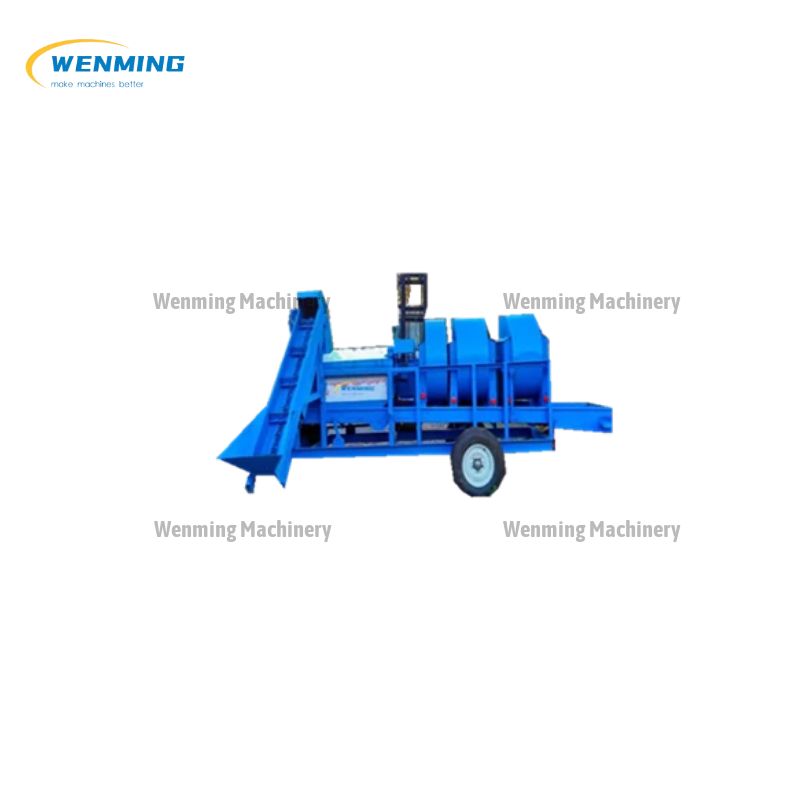

Pine Cone Threshing Machine |
22kw |
Size:4.4*0.8*1.5m Output:1100kg/h Weight: 600kg Diesel engine weight:260kg
Including matching motor, diesel engine and hoist |
|
Hoist
|
0.75kw |
Size:0.5*0.3*3.5m |
|
You can choose one type of grad Large Screen Classifier (6 layers)
|
2.2kw/380V/50hz
|
Size:3.2*1*3.2m Output:2000kg/h |
|
Wind Conveyor Elevator
|
1.5kw |
0.5*0.3*3.5m |
|
Shelling Machine for Multiple Sets Shelling Machine 30-40kg Single Machine
|
Motor: 2.6kw/380V/50hz Output: 30-40kg |
Size:0.65*0.65*1.2m 5% broken, 95% shell opened Packing size: 3.2*1*1.9m Weight: 600kg |
|
|
|
|
|
Vertical Double Blower Shell and Kernel Separator
|
Fan:2.2kw/380V/50hz
Output: 150kg |
Size:1.2*1.5*2.2m Weight:150kg
|
|
You can choose one type of drying box
Use for drying and peeling nuts:
|
Circulation Fan Power: 0.75---4 units |
Automatically set constant temperature One time loading: 800 kg Size: 3.2*1.8*2.3 m Pallet stainless steel: 0.6*0.4 m Cart size: 0.65*0.45*1700, equipped with 8 pieces Material: trolley, pallet stainless steel Other carbon steel Weight: 1200kg
Drying box price: Size: 3.2*1.8*2.3 m
|
|
You can choose one type of peeling machine: rubber roller, air peeling Rubber Roller Peeling Machine
|
Motor power: 0.75KW--2 units Fan power: 2.2KW Matching sakron dust collector Vibrating screen machine power: 0.18kw Voltage: 380V |
Yield:300KG/H Stripping rate: >97% Overall size： 1.6*0.9*1.4m Skin suction fan： 0.7*0.7*1.4m Weight:400kg
Materials: upper and lower hoppers, casing, screen machine, stainless steel for food contact, carbon steel for frame transmission parts |
|
Color Sorter, Packaging Machine, Outsourced and Self-produced |
||
Contact Us to Get a Quote
