Automatic Noodle Making Machine Noodle Maker Machine for Vegetable Noodle Factory Price

1.Automatic Noodle Making Machine Product introduction:

This noodle making machine is widely used to make rice, wheat and other kinds of noodles. It can make different shape noodle by changing the molds. Built from stainless steel and galvanized iron which ensures a trouble free services. Noodles making machine is designed according to the construction feature of fresh noodle. Vacuum flour mix improves the quality of dough. Curing system is designed as the "first in, first out" principle. Rollers with ripple improves the gluten net structure which makes the noodle more delicious. It is suitable for fresh and fine dried noodles manufacturers.

Features Noodle Making Machine:

1.The noodle making machine can make many kinds of noodles, such as pancake, roundness.

2.Small volume, compact structure, simple operation, convenient maintenance.

3.Flexible operation, stable performance, high production efficiency.

4.It is absolutely the first choice of the noodle making machine.

Noodle Making Machine Working Principe:

By the power, the retarding mechanism, through the sprocket chain unit is passed to each roll straight knife section, on the pole.putting the mixed surface into the surface bucket, use the conveyor to send main roll forming to wrapper, and solid, sequential analogy, rolling solid, rolling thin, calendering into the cutting knife after the panel cut into noodles, then to the pole automatic.

The Noodle Making Machine Out let Method have two options

 Climbing pole collecting Noodle Making Machine Climbing pole noodle Making Machine

Convery belt collecting Noodle Making MachineNoodle Making Machine

2.Automatic Noodle Making Machine Technical parameters

Model

WM-MTJ250-5

WM-MTJ260-5

WM-MTJ300-5

Rollers

5

5

5

Capacity

150-170kg/h

170-200kg/h

200-230kg/h

Power

3kw

3kw

3kw

Weight

380kg

510kg

580kg

Main roller size

96*250mm

140*260mm

140*300mm

Dimension

1600*570*1225mm

1600*580*1250mm

1800*530*1370mm



Model

WM-MTJ250-6

WM-MTJ260-6

WM-MTJ300-6

WM-MTJ330-6

WM-MTJ360-6

Rollers

6

6

6

6

6

Capacity

180-210kg/h

240-260kg/h

240-280kg/h

280-300kg/h

260-330kg/h

Power

4kw

4kw

4kw

4kw

5.5kw

Weight

520kg

620kg

820kg

900kg

960kg

Main roller size

96*250mm

140*260mm

140*300mm

140*330mm

140*360mm

Dimension

2000*650*1225mm

2300*600*1370mm

2300*650*1370mm

2300*633*1370mm

2300*660*1370mm



Model

WM-MTJ300-7

WM-MTJ330-7

WM-MTJ360-7

Rollers

7

7

7

Capacity

260-300kg/h

280-320kg/h

300-360kg/h

Power

5.5kw

5.5kw

5.5kw

Weight

1000kg

1200kg

1350kg

Main roller size

140*300mm

140*330mm

140*360mm

Dimension

3400*720*1350mm

3000*680*1420mm

3000*760*1500mm

3.Automatic Noodle Making Machine Videos & Pictures :

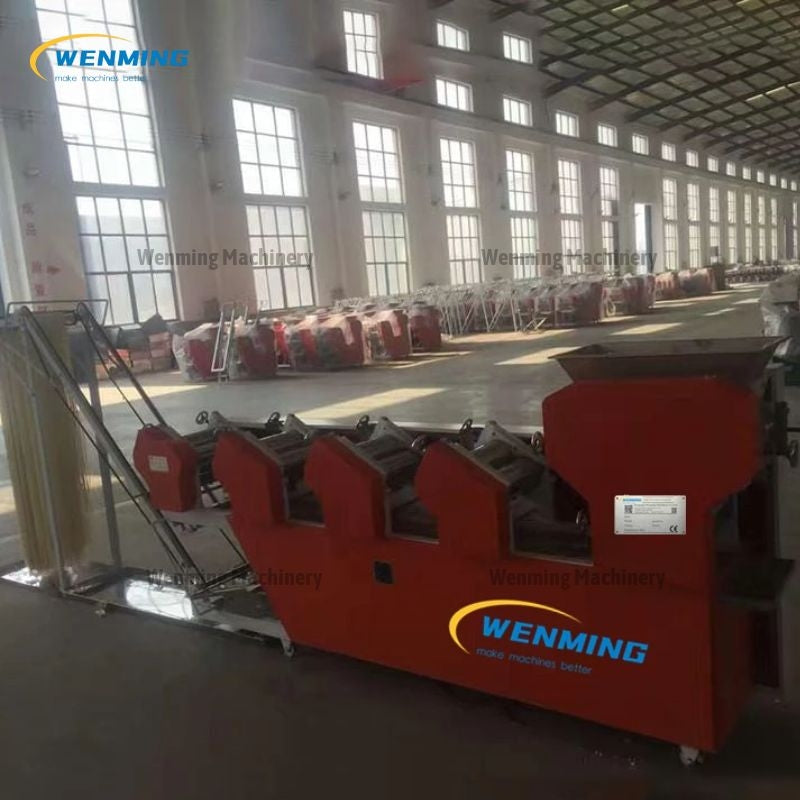

Automatic Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
Noodle Making Machine
