High Quality Electric Cigarette Box Wrap Packing Machine

High Quality Electric Cigarette Box Wrap Packing Machine

1.Product introduction of Electric Cigarette Box Wrap Packing Machine：

Product Description：

I. Suitable for transparent film packaging of cosmetics, health products, and similar items. This packaging machine is a general-purpose device that uses environmentally friendly OPP or BOPP film for three-dimensional packaging of cardboard boxes of various sizes. It is suitable for transparent film packaging of various sizes of pharmaceuticals/food/cosmetics/tea/health products/cigarettes/playing cards/VCDs, etc. Three-dimensional packaging with transparent film offers four advantages:

1. Excellent sealing, moisture-proof/dust-proof effect.

2. Easy opening; simply pull the pull tab (easy-open tab) and turn it once to open.

3. Anti-counterfeiting; graphics or trademarks can be printed on the easy-open tab for identification of authenticity.

4. Enhances product quality/value-added/grade and decoration quality after packaging.

II. Working Principle and Performance Characteristics: The machine's working principle is based on a mechanical linkage structure, relying on a series of cams inside the machine to drive various connecting rods and working parts to complete the process. Utilizing the principle of skin-wrapping and employing multi-functional digital display frequency conversion programmable control technology, this machine achieves functions such as heat sealing, shaping, automatic temperature adjustment, and emergency stop in case of malfunction.This machine is a highly intelligent packaging equipment integrating optics, mechanics, electronics, pneumatics, and instrumentation. It features a compact structure, beautiful appearance, small size, light weight, ultra-quiet operation, excellent energy and material savings, and advanced technology.

III. Process/Flow Description: The packaging machine automatically wraps the packaged items conveyed by the conveyor belt with BOPP transparent film according to requirements, and then transports the packaged items out. The packaging film is tight, without damage or deformation.

IV. Carton Packaging Dimensions and Packaging Form:

Packaging Dimensions: (40-150X20-100X20-50)mm Packaging Form: One box per package

V. Quality Requirements:

1) Appearance Quality Requirements:

① The outer surface of the packaging machine is flat and smooth, without defects such as dents, bumps, or marks.

② The stainless steel casing has been matte-finished, preventing glare and reflection.

③ Exposed mating surfaces have neat, uniform edges without obvious misalignment.

④ The plating color is consistent, without blistering, peeling, or scratches.

2) Hygiene Requirements:

① All parts of the packaging machine that come into contact with the packaged goods are made of non-toxic materials.

3) Overall Machine Performance Requirements:

① The packaging machine operates smoothly, with moving parts moving flexibly, coordinated, and accurately, without jamming or abnormal noise.

② Lubrication points have unobstructed oil passages, and there is no oil leakage at seals.

③ The operating noise of the packaging machine does not exceed 75dB(A).

4) Safety Requirements:

① The packaging machine is equipped with a clearly visible and reliable grounding device, and the insulation resistance between live parts (power electrical appliances, control electrical appliances, and signal circuits) and the casing is ≥1MΩ. ② The packaging machine's circuit control system is safe, reliable, and operates accurately. All electrical connectors are securely connected and numbered; operating buttons are flexible and include an emergency stop button; indicator lights function normally.

③ The packaging machine casing will not have sharp burrs or corners.

④ The packaging machine has clear and conspicuous safety warning signs for operation, lubrication, and heat prevention. Heat-generating parts that could cause injury to operators have protective devices.

⑤ The front turret of the packaging machine has a protective cover to protect operator safety.

⑥ The packaging machine has a standardized equipment nameplate and instruction signs, and operating instructions are displayed in Chinese.

5) Installation Requirements:

① The machine should be installed on a level surface. In addition to the machine's external dimensions (2800×970×1600 mm), there should be at least 2 meters of space around it for operation and maintenance.

② The packaging machine requires 220V 50Hz single-phase power, with an average power consumption of 2.1kW/hour.

6) Performance Requirements:

① The packaging machine can operate continuously for 24 hours/day, but must be stopped and the lubricating oil checked every week.

② Production capacity for cosmetics packaging: 25-60 packs/minute. Packaging integrity rate ≥ 98%.

2.Technical parameters  of Electric Cigarette Box Wrap Packing Machine：

Contact Us to Get a Quote

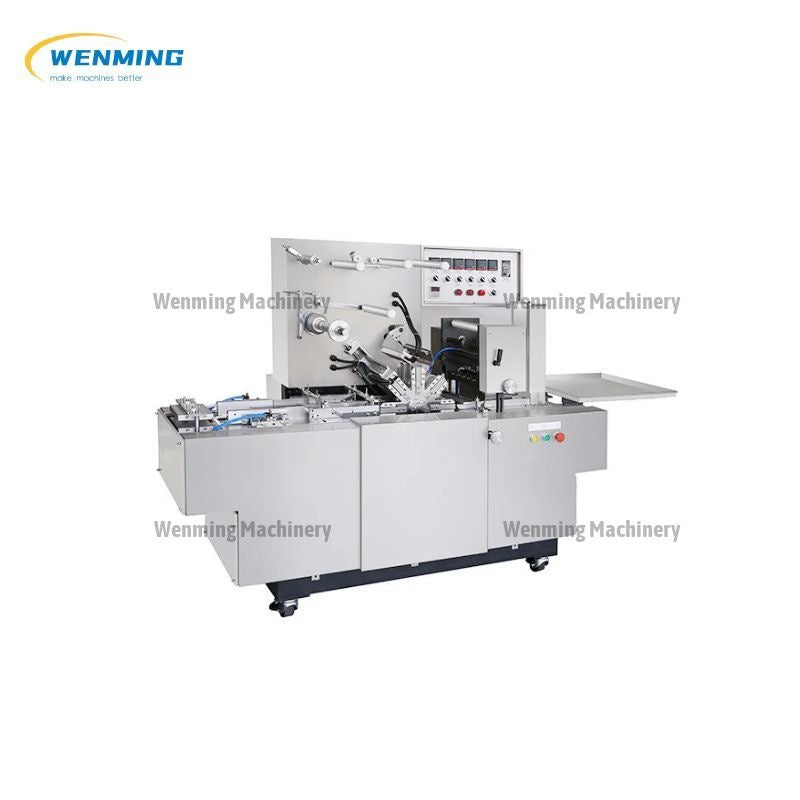

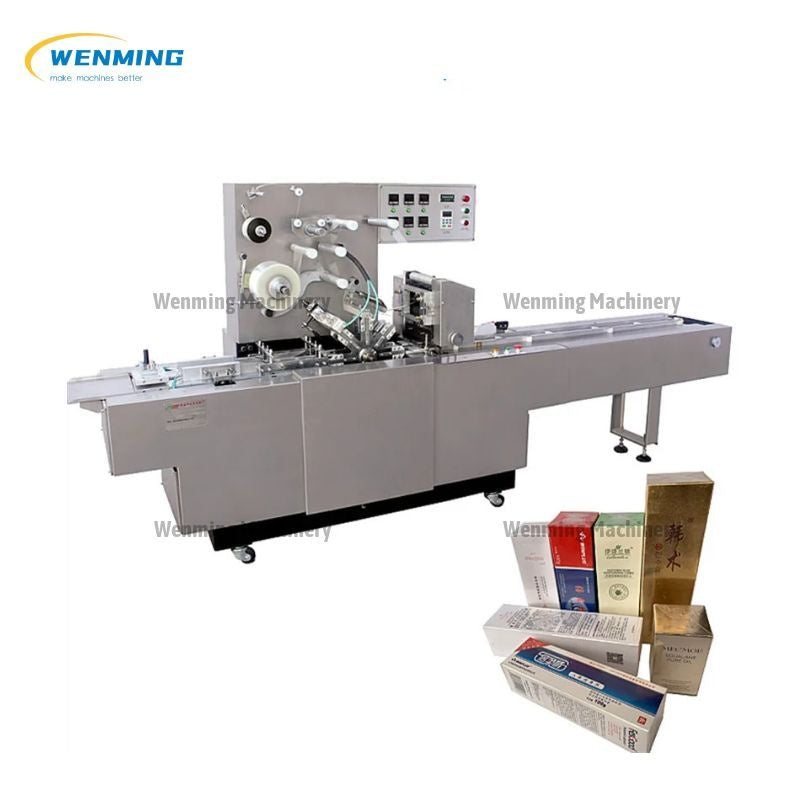

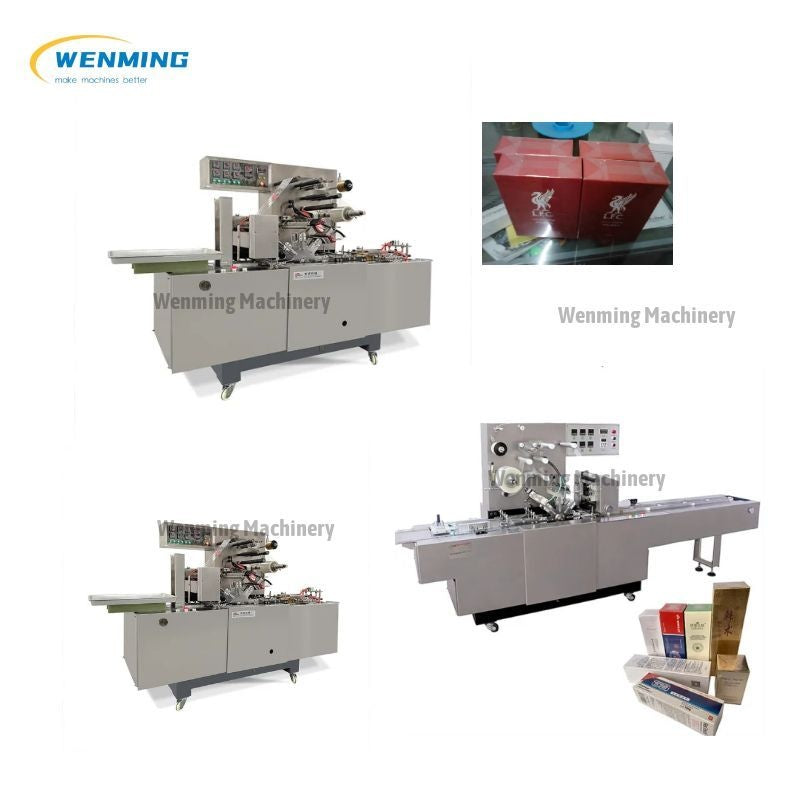

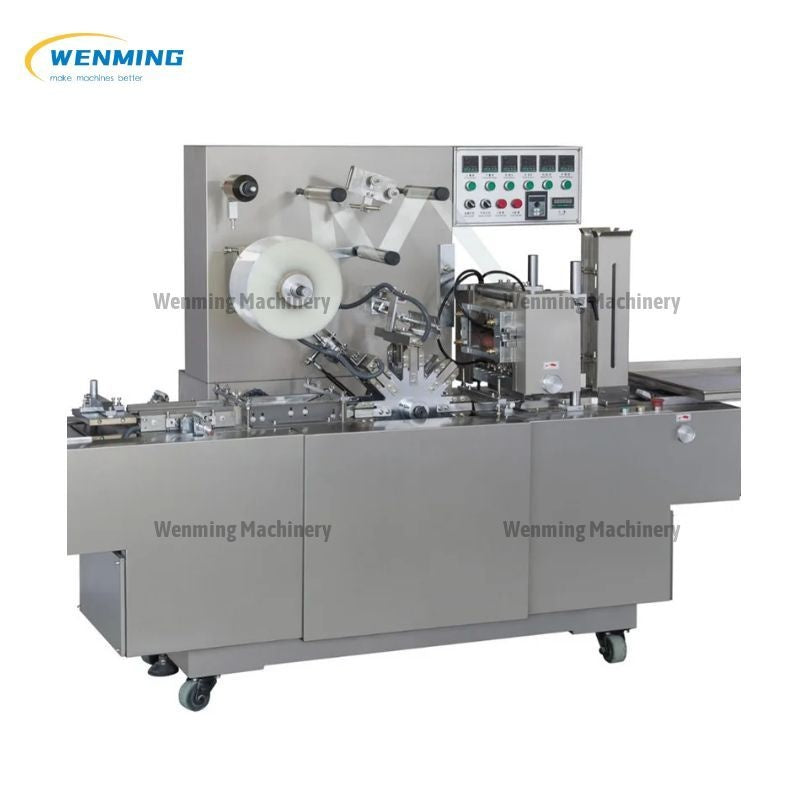

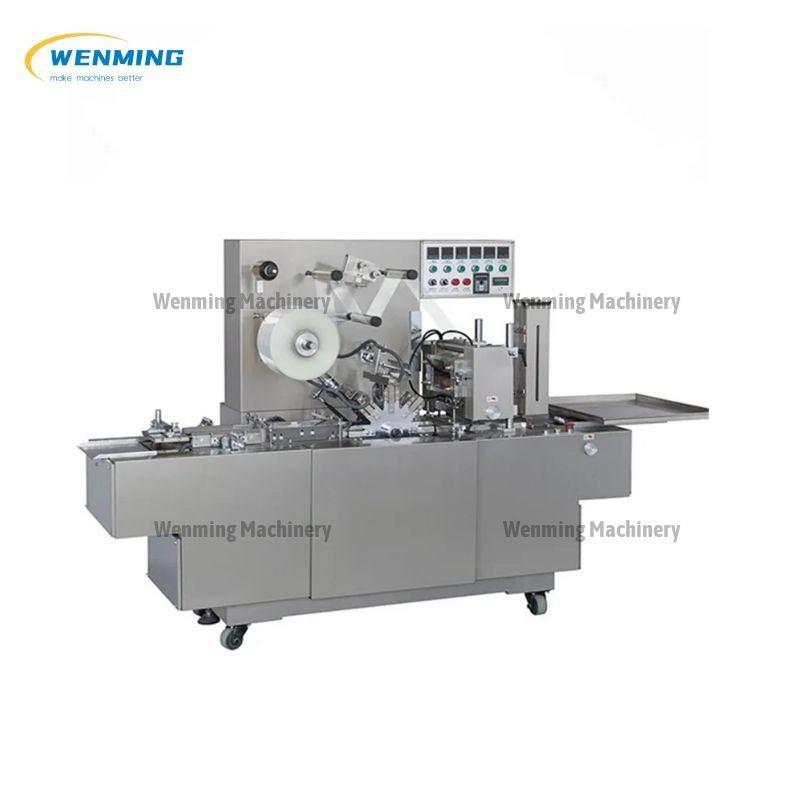

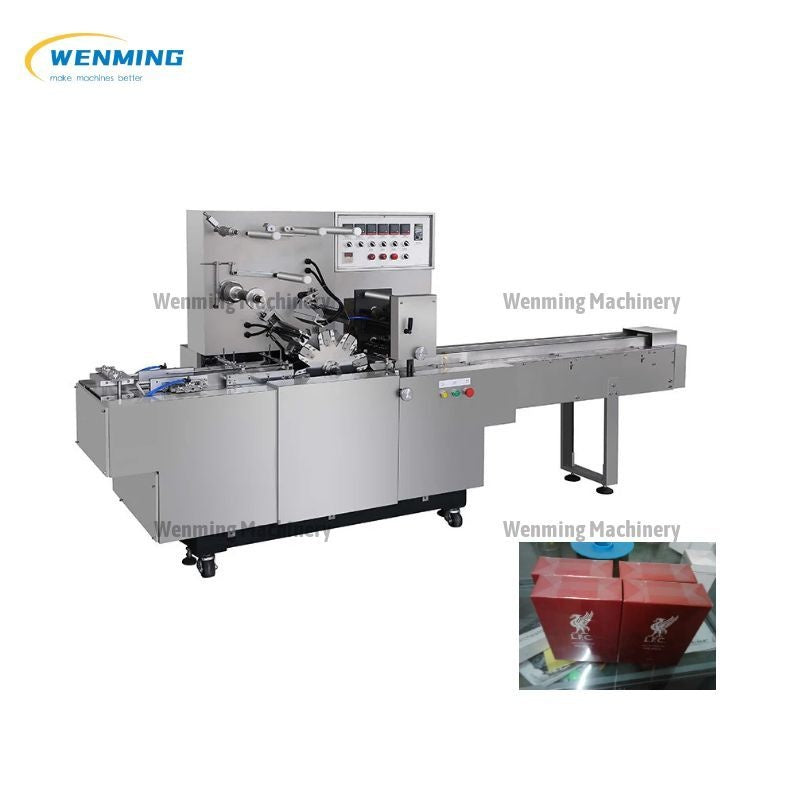

3.Pictures of Electric Cigarette Box Wrap Packing Machine :
