Stainless Steel Jacketed Mixer Cooking Pot

Fruit&Vegetable Processing Machines-Wenming Machinery

Regular price $0.50 USD
Regular price Sale price $0.50 USD
Sale Sold out
Shipping calculated at checkout.
Model
wenming-machinery-payment-guarantee

Tell us your requirements to get best quote

Zhengzhou Wenming Machinery Co Ltd.
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China
Office:0086-13-303-831586
Whatsapp/Wechat:  +8615937826701 +8617505235613
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

Warranty of our machines

All WM Machines will pass strict inspection before shipping, the guarantee period is two years, any part broken we can offer for free. And we will offer lifetime technical support.

Click to check details:Warranty.

Shipping cost checking.

Because machines are with bigger size and weight,
different machine modify, different Packing size and weight. Both the size/weight, and delivery address will affect much to the shipping cost.  Please confirm the shipping cost with us, we
will recommend you the best shipping methods and costs for choose.

Whatsapp/Wechat:+8615937826701

Email:wm01@wmmachinery.com

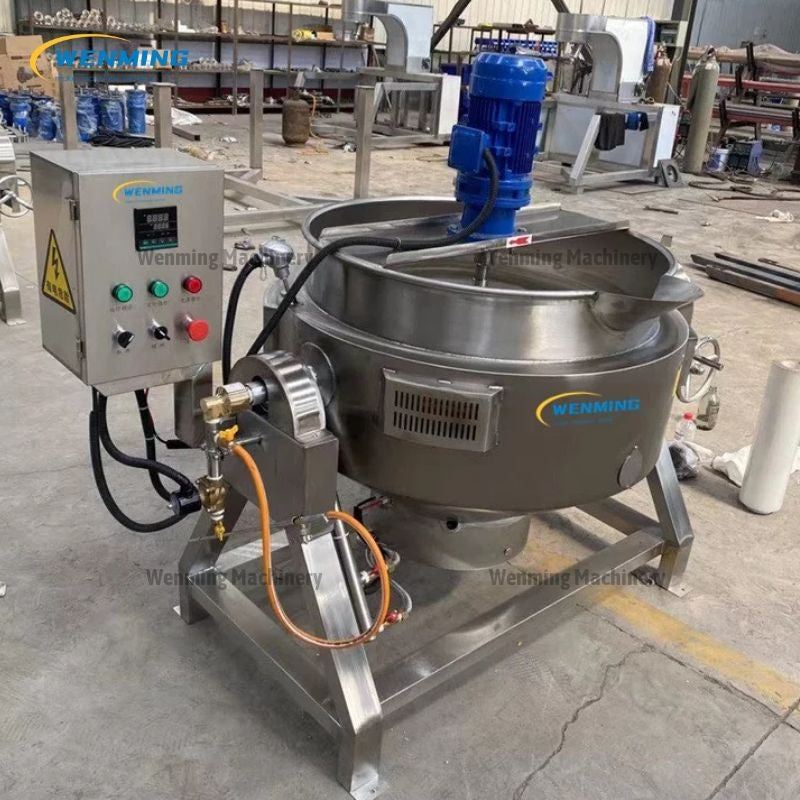

Autmatic Stainless Steel Jacketed  Mixer Cooking Pot for Tomato Sauce

1.Mixer Cooking Pot Product introduction:

This Cooking port is desgin for mixing and cooking of many kind fruits paste, liquid,etc. It can also be used in large restaurants or canteens to make soup, cooking, stewing and porridge. This cooking port is electrical heating, has the large heating area, high thermal efficiency, uniform heating temperature, heating time is short and easy to control; No dead Angle, material stirring evenly; Pot body shell made in stainless steel material, conform to the requirements of the health and safety, the attachment is complete, good appearance, convenient installation and simple operation, safe and reliable.

1, Control cabinet: Accurate temperature control;

2, reducer with direct-type reducer, the use of national standard motor, power 1.1KW, speed ratio: 1: 59, speed 30r per minute;

3, bracket: all stainless steel tilting, stirring shaft with a new bold design, higher strength, effectively eliminate the friction phenomenon of the mixing shaft, the turbine is ductile iron, the worm for the national standard 45 # carbon steel, hand wheel for Q235 carbon Structural steel chrome plated with stainless steel shield;

4, electric tube: 304 seamless steel pipe made of connection for the threaded connection, disassembly, easy maintenance.

5, stir cage: all stainless steel production.

2.Mixer Cooking Pot Technical Parameters

Model

WM-JCG100

WM-JCG200

WM-JCG300

WM-JCG400

WM-JCG500

Inner Pot Diameter

700mm

800mm

900mm

1000mm

1100mm

Outer Pot Diameter

800mm

900mm

1000mm

1100mm

1200mm

Thickness

Inner 3mm

Outer 3mm

Inner 3mm

Outer 3mm

Inner 3mm

Outer 3mm

Inner 3mm

Outer 3mm

Inner 3mm

Outer 3mm

Mixing motor Power

1.1KW

1.1KW

1.5KW

1.5KW

2.2KW

Mixing Speed

30r/min

30r/min

30r/min

30r/min

30r/min

Heating area

0.87m2

1.23m2

1.65m2

1.99m2

2.21m2

Heat transfer oil amount

35L

45L

56L

70L

85L

Total Power

15Kw

15Kw

18Kw

18Kw

27Kw

Dimension

1000*1000*1200mm

1100*1100*1200mm

1200*1200*1500mm

1400*1400*1500mm

1500*1500*1500mm

weight

105kg

135kg

160kg

195kg

250kg

Remarks,

if do not need mixer funcation, the price will be $275 cheaper.

if do not need pourable dump out fucntion, the price will be $200 cheaper.

3. Jacketed pot Pictures & Videos

Mixer Cooking Pot
Mixer Cooking Pot
Mixer Cooking Pot
Mixer Cooking Pot
Mixer Cooking Pot
Mixer Cooking Pot
Mixer Cooking Pot
Mixer Cooking Pot
