Commercial Garlic Peeler Machine Automatic Line
Commercial Garlic Peeler Line Iroduction:
This Automatic Industrial Garlic Peeling line can do 1000-1200kg per hour Garlic Processing ， includes Elevating vonveyor machine, Garlic clove separating machine, Picking line, Elevating machine,Garlic peeling machine,Picking line,also could be equiped slicing machine,dicing machine,bubble cleaning machine, Garlic dehydration machine, Vegetable drying machine and so on.
Industrial Garlic Peeler Machine has high processing speed,save labor.There is no damage to the garlic and is of high peeling rate 100%, suitable for large–scale production and process.
Commercial Garlic Peeler Line Technical parameters
1000 kg Garlic Peeling Production Line
|
|
Conveyor Power：0.75kw/380v Stainless steel and PVC conveyor belt Size: 2200*700*1500mm Adjustable speed |
|
|
Garlic Splitter Machine Power: 2 (KW) / 380 (V) weight: 120(KG) stainless steel capacity: 1000-1500 (KG/H) size: 1450*800*1200mm |
|
|
Conveyor Power：0.75kw/380v Stainless steel and PVC conveyor belt Size: 2300*700*1500mm Adjustable speed |
|
|
Garlic peeling machine Power :3.0(KW)/380(V) size:2500*1000*1800(MM) weight: 1000-1200(KG/H) Stainless steel
|
 |
Picking table Power：750w/380V Size：3500*700*800mm Stainless steel and PVC conveyor belt Adjustable speed |
|
|
Air Compressor（option，you can purhcase from your loacl market also,the price do not including this） Power: 55KW Air production: 8.5m3/min 10 kg pressure Dimension:1900*1200*1600（mm） Weight: 950kg
|
|
|
Air Tank（option，you can purhcase from your loacl market also,the price do not including this） Volume: 2m³ 10 kg pressure Dimension:2300*1500*1590（mm） Weight: 310kg |
|
|
Garlic clove grading machine (Optional for grading garlic by size) Size:2000*1000*1400mm Power1.5KW Capacity：1000kg/h Grade 4 grades |
Options for this line
Blanching Washing line
Size：4000*1300*1400mm
Power：2.57kw
Voltage：380v
Motor ：Copper wire motor
Introduction：Stainless steel wire mesh with automatic transmission, convenient operation, high efficiency. Heating parts, automatic temperature control, random setting, the heat source can use gas heating, electric heating, etc. Color can add food additives at the same time, to ensure that potato chips bright color, crispy, the body is stainless steel material, achieve the food sanitation standards.
Air drying dewatering machine
Size：4000*950*1600mm
Power：10.75kw
Voltage：380v
Motor ：Copper wire motor
Introduction：By repeated flip chips by mesh belt transmission, realize the many facets of the chips the uniformity of the wind and the wind, through high-pressure wind fan will food cooling and surface moisture to dry, the wind the wind blade shape, effectively increase the air pressure, the moisture of potato chips in a short period of time of material blown away or evaporation, effectively prevent the Fried oil jumped phenomenon and shorten the cooking time.
Semi automatic Packing machine
WM-SK-160B
|
Machine model |
WM-SK160B |
|
|
Max. width of coiled film |
320mm |
|
|
Bag length |
30-200mm |
|
|
Bag width |
50-150mm |
|
|
Measuring range |
50-500ml |
|
|
Packaging speed |
20-80bas/min |
|
|
External diameter of coiled material |
Max.300mm |
|
|
Packing film thickness |
0.05-0.08mm |
|
|
Power supply specification |
220B50Hz.2kw |
|
|
Machine weight |
350kg |
|
|
Packing Material |
OPP/CPP.OPP/CE.MST/PE/PET/PE |
|
Automatic Packing machine
New design with perfect fashion, more reasonable structure, more advanced technology.
The machine is equipped with PLC control system, colorful touch screen, easy operation, intuitionist and efficient.
Imported servo film drawing system and color sensors, accurate positioning, and superexcellent capability for complete machine, perfect packaging.
With auto warning protection function to minimized loss.
The machine completes the whole procedure of feeding, measuring, bag making, date printing, air charging (exhausting), outputting.
Suitable for various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
Configuration
Host machine Four-heads linear combination weigher
Vertical skip hoist products conveyor
Supporting platform
|
Model |
WM-L420 |
|
Max. film width |
Max. 420mm |
|
Bag length |
80-300mm |
|
Bag width |
60-200mm |
|
Packaging speed |
5-60bags/min |
|
Measuring range |
150-1500ml |
|
Film thickness |
0.04-0.08mm |
|
Power |
220v 50/60Hz 2.2Kw |
|
Size |
1217*1015*1343mm |
|
Net weight |
650kg |
|
Packaging material |
BOPP/CPP,BOPP/PE,PET/AL/PE,NY/PE,PAPER TEA FILTER PAPER,PLA,NON-WOVEN FABRICS |

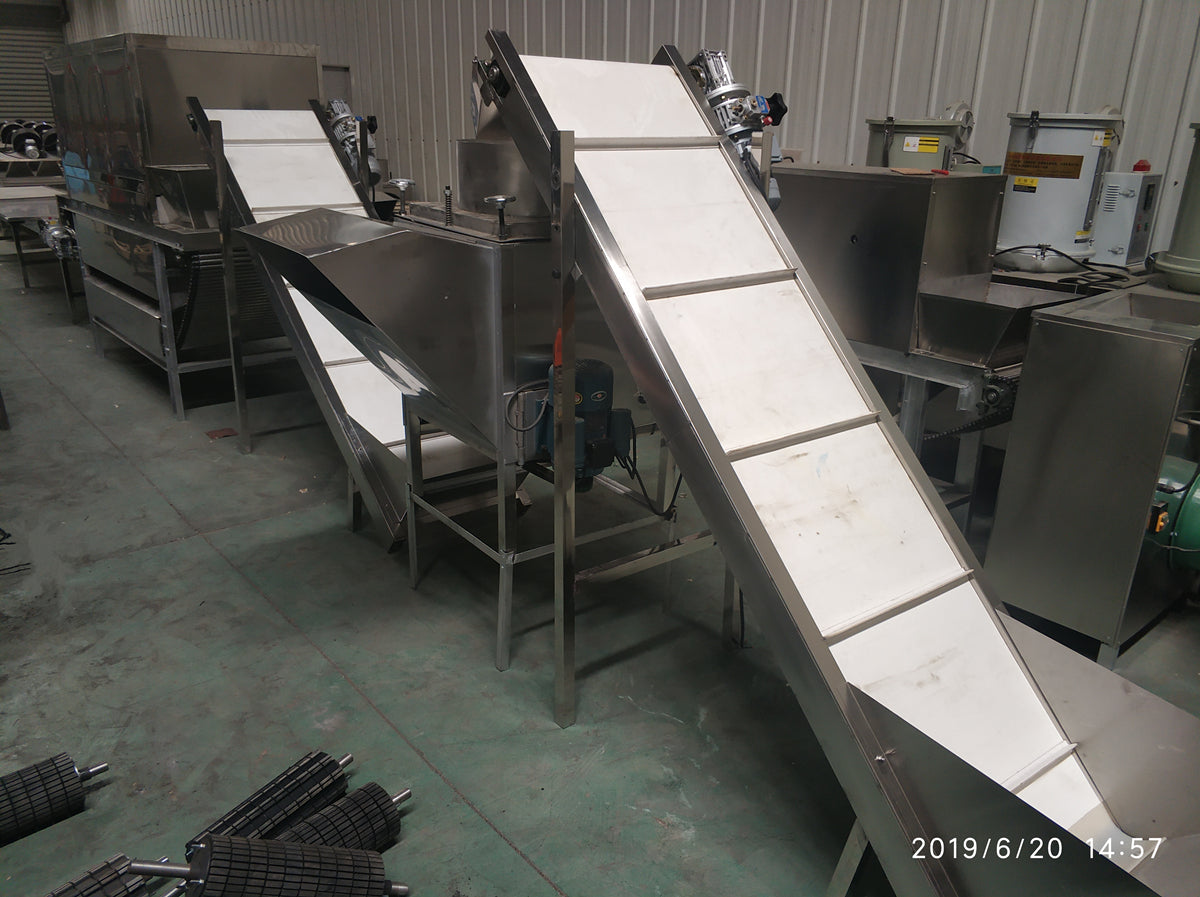

Garlic Peeling line Pictures in our Factory.
