Mobile Concrete Batching Plant Mobile Concrete Plant with Twin-shaft Concrete Mixer

Construction Machinery-WM machinery

$24,500.00 USD
$24,500.00 USD $24,500.00 USD
Sale Sold out
Shipping calculated at checkout.
Model
wenming-machinery-payment-guarantee

Tell us your requirements to get best quote

Zhengzhou Wenming Machinery Co Ltd.Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China

Office:0086-13-303-831586

Whatsapp/Wechat: +8613592678673

Email: wm31@wmmachinery.com

You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

Click to leave your information and requirements

Warranty of our machines

All WM Machines will pass strict inspection before shipping, the guarantee period is two years, any part broken we can offer for free. And we will offer lifetime technical support.

Click to check details：Warranty.

Shipping cost checking.

Because machines are with bigger size and weight,
different machine modify, different Packing size and weight. Both the size/weight, and delivery address will affect much to the shipping cost.  Please confirm the shipping cost with us, we
will recommend you the best shipping methods and costs for choose.

Whatsapp/Wechat：+8618337111429

Email:wm06@wmmachinery.com

Mobile Concrete Batching Plant Mobile Concrete Plant with Twin-shaft Concrete Mixer

1.Product Introduction of Mobile Concrete Batching Plant:

The twin-shaft mixing unit for mobile concrete batching plant is a core component featuring a twin-shaft compulsory mixing structure, specially designed for mobile concrete batching systems. With two counter-rotating mixing shafts, it ensures fast and uniform mixing, significantly improving concrete quality and production efficiency. The machine offers a compact structure and powerful performance, meeting the demands of frequent relocation and continuous operation. With high mixing efficiency, quick discharge, and stable performance, it is essential equipment for producing high-quality concrete on mobile construction sites.

2.Technical Parameters of Mobile Concrete Batching Plant:

Main

Batching Plant Model

YHZT25

YHZT35

YHZT60

YHZT90

Batching Capacity

25m3/h

35m3/h

60m3/h

90m3/h

Concrete Discharge Height

3.8m

3.8m

4.1m

4.1m

Max. Aggregates Size

60mm

80mm

80mm

80mm

Mixing Time per Batch

60-72s

60-72s

60-72s

60-72s

Raw Material Feeding

Belt Conveyor

Belt Conveyor

Belt Conveyor

Belt Conveyor

Batching Machine

Model

PLD800

PLD1200

PLD1600

PLD2400

Aggregates Feed Height

3.5m

3.1m

4.5m

4.8m

Twin Shaft Concrete Mixer

Model

JS500

JS750

JS1000

JS1500

Raw Material Feeding

Belt Conveyor

Belt Conveyor

Belt Conveyor

Belt Conveyor

Mixing Motor

18.5kw*1

30kw*1

22kw*2

30kw*2

Feeding Motor

7.5kw

7.5kw

11kw

11kw

Weighing

Cement Weighing

Yes

Yes

Yes

Yes

Water Weighing

Yes

Yes

Yes

Yes

Additive Weighing

Yes

Yes

Yes

Yes

Screw Conveyor

Model

219-6

219-6

219-8

219-8

Conveying Distance

6m

6m

8m

8m

Motor Power

7.5kw

7.5kw

11kw

11kw

Cement Silo

Type

Vertical Bolted

Vertical Bolted

Vertical Bolted

Vertical Bolted

Storage Capacity

50/100t

50/100t

100t*2

100t*2

Control System

Model

Both computer type full-auto control and button type semi-auto control are available, depending on the customers' needs.

Control Room

Yes

Yes

Yes

Yes

Note

Bigger mobile concrete batching plant such as 120m3/h 150m3/h 180m3/h are available.

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd

Sales Manager：Ms. Miki

Office:0086-13-303-831586

Whatsapp/Wechat：  +8613592678673

Email:  wm31@wmmachinery.com

You can contact us to get more details of machines or let us know your requirements. We can design and manufacture machines according to your needs.

Click to leave your information and requirements

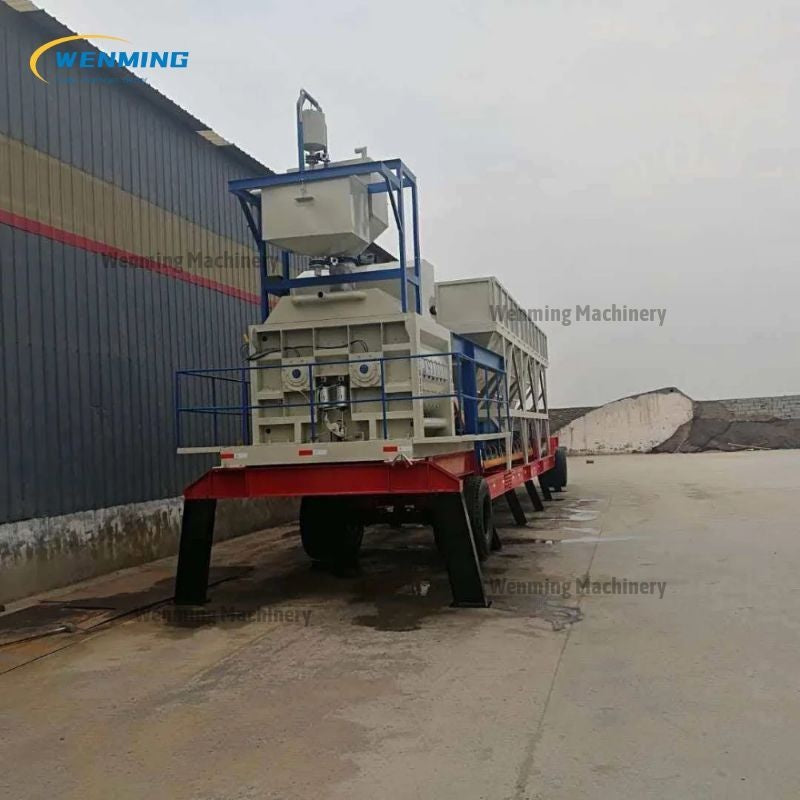

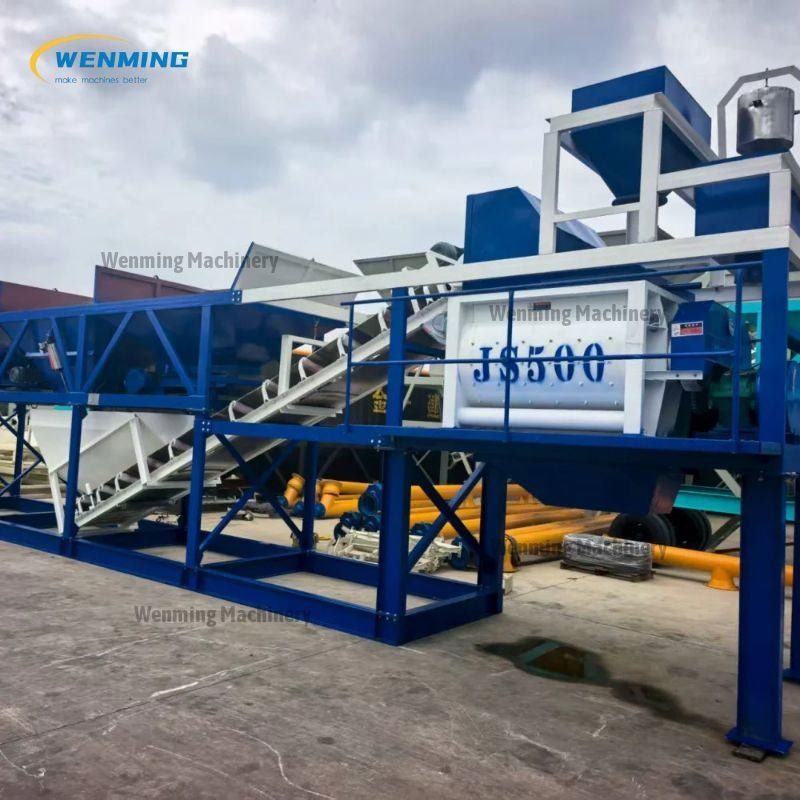

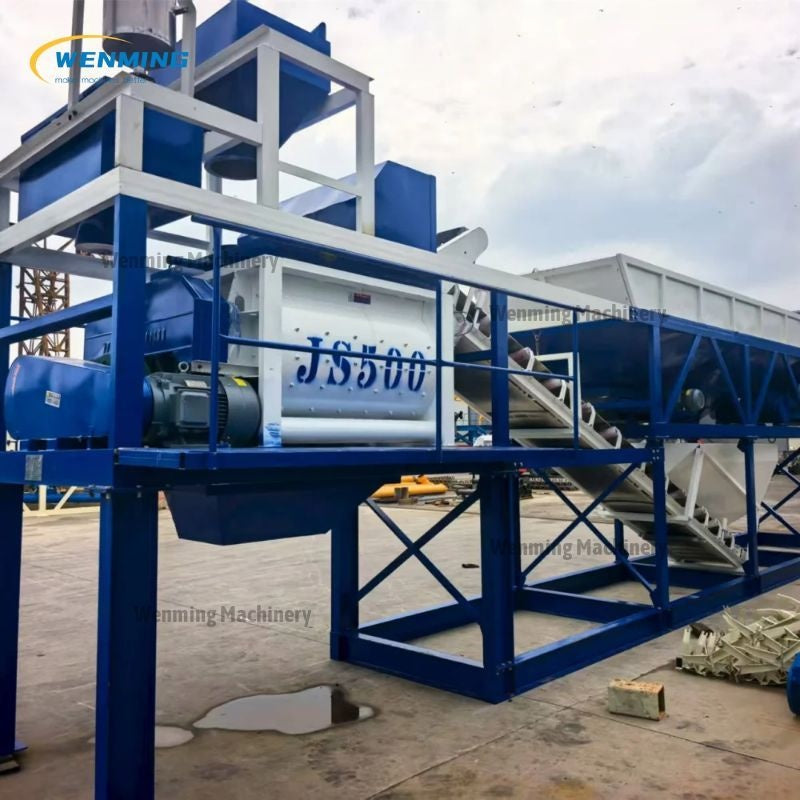

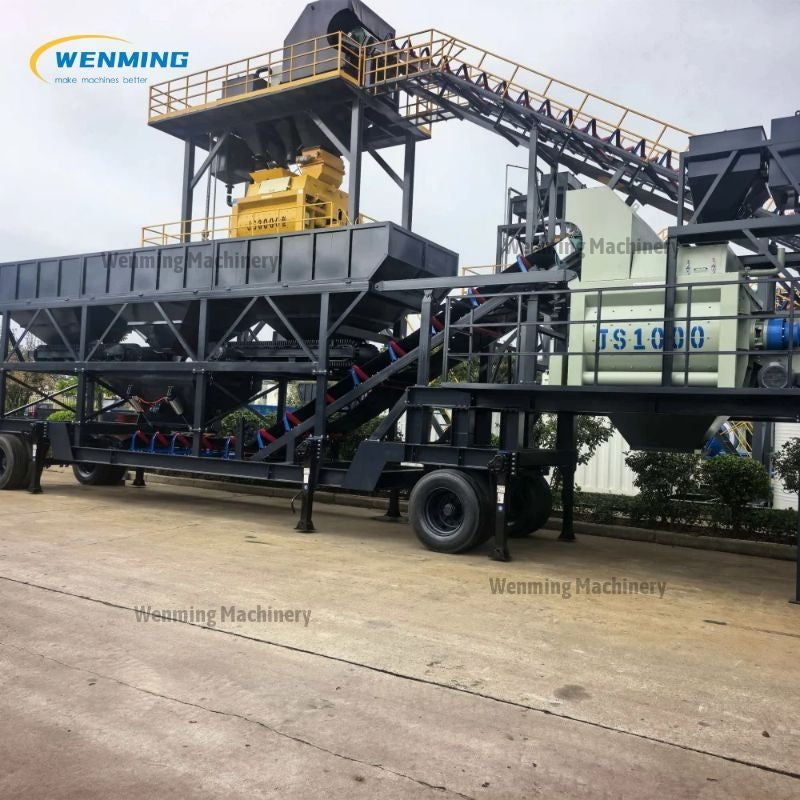

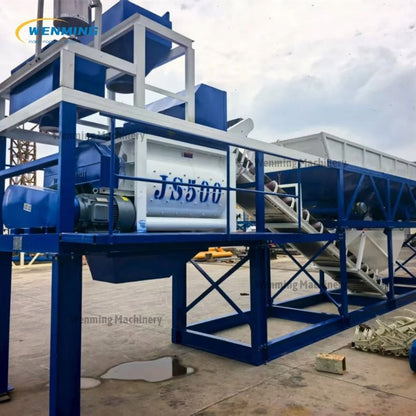

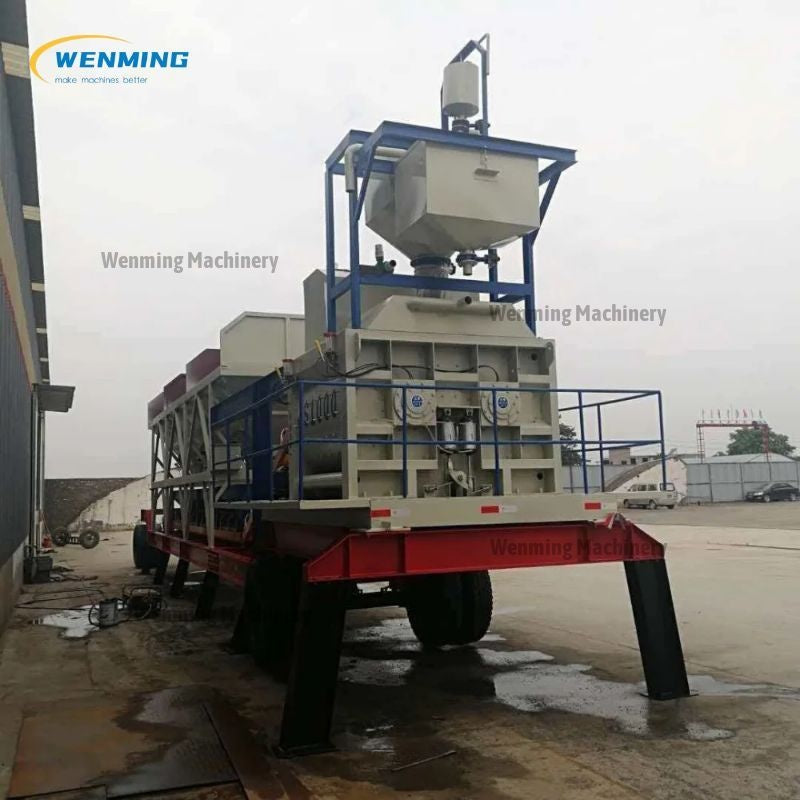

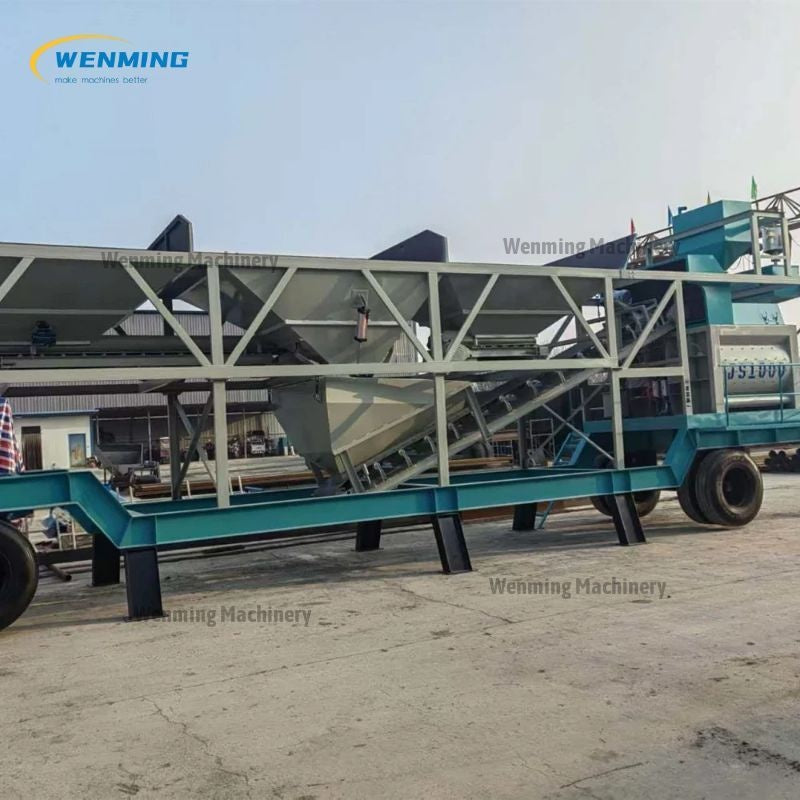

3.Pictures of Mobile Concrete Batching Plant:

mobile concrete batching plant

mobile batching plant
