CO2 Supercritical Fluid Extraction System for High-Purity Natural Extracts
1.Product introduction of Supercritical Fluid Extraction System:
CO₂ supercritical extraction is a green and efficient technology that uses carbon dioxide in its supercritical state (between gas and liquid) to extract valuable compounds from raw materials. Extracting high-purity essential oils, plant compounds, and bioactive ingredients without the use of harmful solvents. It ensures clean, solvent-free extracts with excellent purity and bioactivity retention. Designed for efficiency, safety, and precision, it is widely used in industries such as pharmaceuticals, cosmetics, food, and nutraceuticals.
Features:
Solvent-Free, Eco-Friendly Process
Temperature & Pressure Adjustable
High Extraction Efficiency & Product Purity
304/316L Stainless Steel Contact Parts
Modular Design for Easy Scale-Up
Applications:
Plant Essential Oils (CBD, Lavender, Tea Tree, etc.)
Nutraceuticals & Herbal Extracts
Spice & Flavor Industry
Pharmaceuticals & Cosmetic Actives
Food Additives & Functional Compounds
2.Technical Parameters of Supercritical Fluid Extraction System:
The size of the supercritical extraction equipment is determined by the volume of the extraction kettle; it can be configured according to customer needs, such as experimental 1L, 2L, 5L, 5L+1L, etc., experimental medium-sized 10L single extraction kettle, 20L (10L+10L), 24L single extraction kettle, etc.
Below, the standard configuration of 5L supercritical CO2 extraction equipment (WM-SFE120-50-05L) is used as an example for customers to understand the equipment configuration: (Additional configurations can be selected according to customer needs; such as PLC system, gaseous CO2 recovery system, etc.)
|
No. |
Types |
Name |
Technical Parameters |
Number |
|
No.1 |
container Valve components |
Extraction kettle |
Design pressure 50MPa, working temperature 85 ℃. The pressurized volume of the kettle body is 5L. The extraction kettle is equipped with solid and liquid material cylinders. |
1 piece |
|
|
|
Separation kettle (1, 2) |
Volume 2L, design pressure 30MPa, working temperature 85 ℃. |
1 each |
|
|
|
Filter |
0.5L, design pressure 16MPa, 304 material |
1 piece |
|
|
|
Purifier |
0.5L, design pressure 50MPa, 304 material |
1 piece |
|
|
|
Liquid CO2 storage tank |
5L, design pressure 16MPa, 304 material |
1 piece |
|
|
|
Safety relief valve |
46MPa 28MPa 20MPa |
4 piece |
|
|
|
high pressure needle valve |
50MPa |
Configure according to process |
|
|
|
check valve |
50MPa |
|
|
|
|
Electric automatic pressure regulating valve |
50MPa accuracy ± 0.5MPa |
|
|
2 |
Pipeline fittings |
piping |
φ 6 304 stainless steel |
1 batch |
|
|
|
pipe fitting |
Elbows, reducers, unions, tees, cross joints, bolts, nuts |
1 batch |
|
3 |
Pump |
CO2 booster pump |
Maximum flow rate 50L/h, outlet pressure 50MPa Power: 2.2KW |
1 unit |
|
|
|
Circulating water pump |
Power: 200W/100W |
3 unit |
|
|
|
Organic solvent pump |
Maximum flow rate 4L/h, outlet pressure 16MPa Power: 0.55KW |
1 unit |
|
4 |
Refrigeration system |
Chiller unit |
5 horsepower machine temperature control 2 ℃ to 7 ℃ |
1 unit |
|
|
|
Condenser |
Design pressure 30MPa |
1 piece |
|
|
|
Anti ice blockage device |
Design pressure 16MPa |
1 piece |
|
5 |
Heating temperature control system |
Extraction kettle heater water bath |
Design pressure 50MPa |
1 piece |
|
|
|
Separation kettle 1 heater water bath |
Design pressure 30MPa |
1 piece |
|
|
|
Separation kettle 2 heater water bath |
Design pressure 30MPa |
1 piece |
|
|
|
CO2 cylinder heating device |
|
1 set |
|
6 |
Control systems, instruments, meters |
PLC module |
|
1 set |
|
|
|
Touch Screen |
10 inches |
1 piece |
|
|
|
Frequency converter |
2.2KW、1.5KW |
2 piece |
|
|
|
Low Voltage Apparatus |
Ncluding circuit breakers, contactors, controllers, etc |
1 set |
|
|
|
Metal rotameter |
6.3-63L/h 10MPa |
1 unit |
|
|
|
Glass float flowmeter |
10L/H |
1 piece |
|
|
|
Temperature transmitter |
0~100 ℃ Accuracy ±0.5 ℃ |
According to system configuration |
|
|
|
Pressure sensor |
0~60MPa with an accuracy of 0.1MPa |
|
|
|
|
Control line |
RVVP |
1 set |
|
7 |
Distribution System |
Distribution cabinet |
Including wiring copper bars, incoming plastic casing, etc |
1 set |
|
|
|
Power cable |
V V |
1 set |
|
|
|
Cable support and installation dressing |
|
1 set |
|
8 |
Equipment rack |
|
Full 304 rack |
1 set |
|
9 |
Automatic pressure control |
Extraction kettle control pressure |
PLC control 4-20mA input 0-10V control output |
1 set |
|
10 |
Protect the safety |
Extraction kettle over pressure protection |
Differential pressure protection pressure sensor A and pressure sensor B are set with a difference in the PLC system
PLC pressure sensor and pressure relief valve with 2 channels of overpressure protection |
1 set |
|
|
|
CO2 booster pump over pressure protection |
The electric contact pressure gauge, PLC pressure sensor, and pressure relief valve have three overpressure protections. |
1 set |
Contact Us to Get a Quote

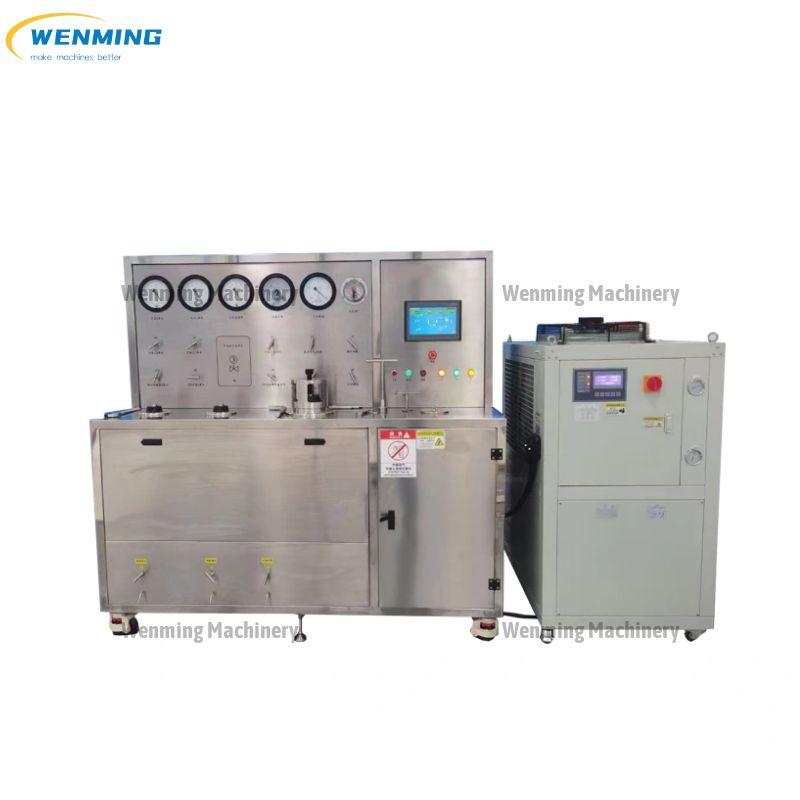

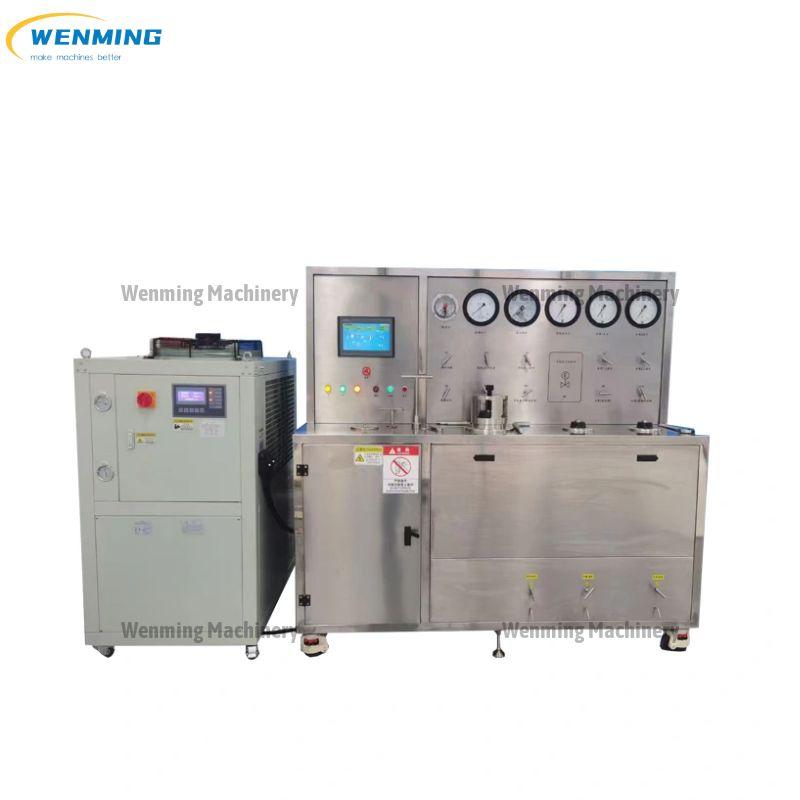

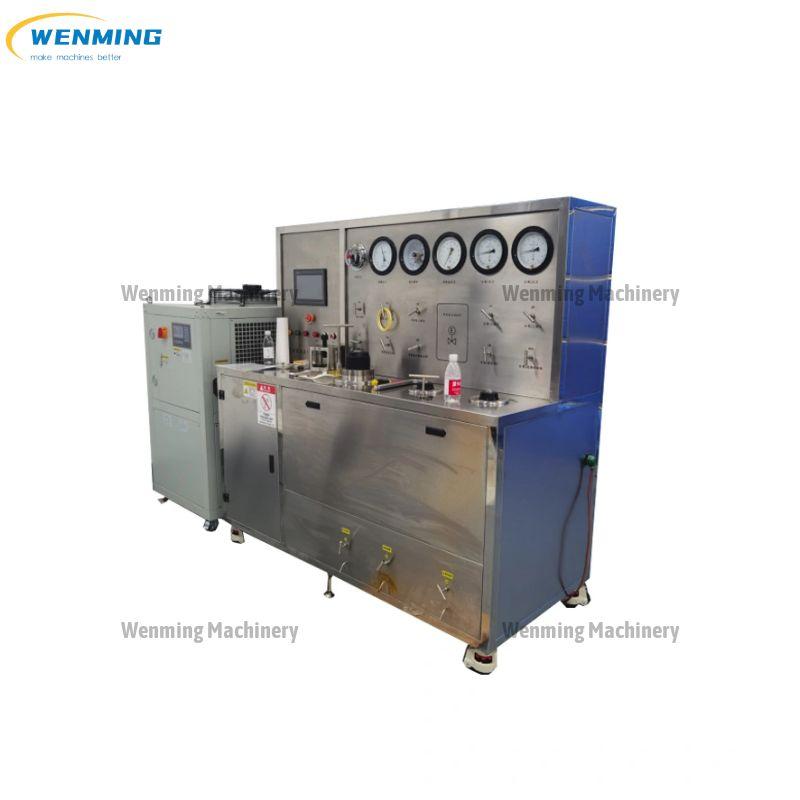

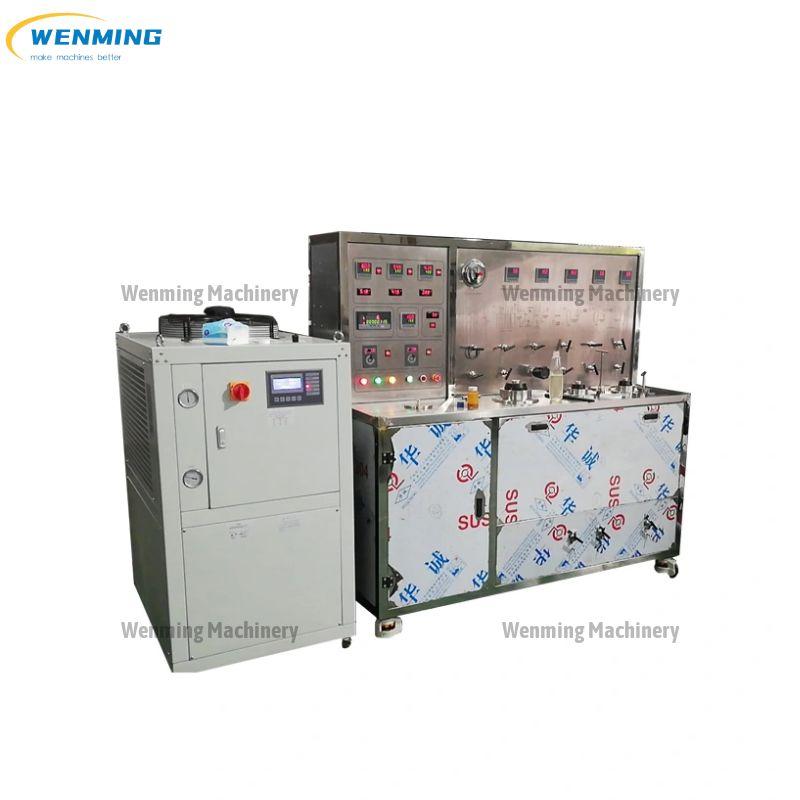

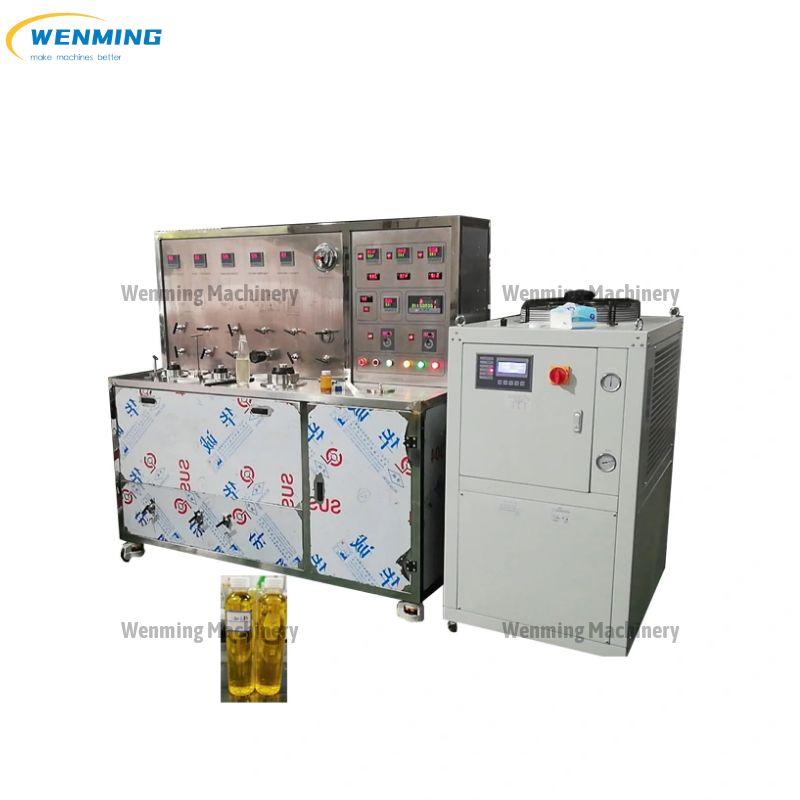

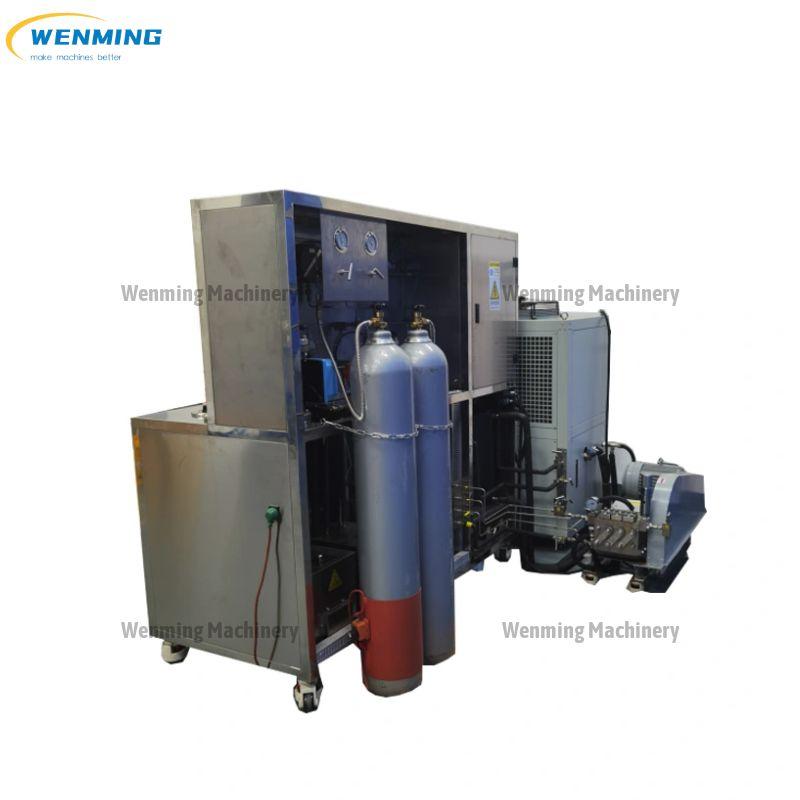

3.PIctures of Supercritical Fluid Extraction System:
 |
 |
