Commercial Freeze Dryer Food Freeze Drying Machines for sale

1.Product introduction of Commercial Freeze Dryer:

The vacuum freeze dryer is suitable for drying high-grade raw materials, traditional Chinese medicine decoction pieces, biological products, wild vegetables, dehydrated vegetables, food, fruits, chemicals, pharmaceutical intermediates and other materials. Freezing vacuum drying is a vacuum freezing and drying machine that combines a refrigeration system, a vacuum system, a heat transfer oil heating system, and a moisture discharge system to form a dry structure, which is widely used for drying and vacuum drying of the material space in the tank. Since it is dried in a frozen state, the volume is almost constant, and the original shape is maintained. The dried material is loose and porous, and has a sponge shape. After adding water, the dissolution is rapid and complete, and the original form is restored. Drying can discharge more than 95-99% of water, so that the dried materials can be stored for a long time without deterioration.

2.Technical parameters of Commercial Freeze Dryer:

Features of Small Freeze Drying Machine

1). Beautiful appearance and compact structure

2). Touch screen operation, easy to start, automatic drying process and convenient for use.

3). Key components with imported brands, small noise, large capacity, high quality and good performance.

1). Beautiful appearance and compact structure

2). Touch screen operation, easy to start, automatic drying process and convenient for use.

3). Key components with imported brands, small noise, large capacity, high quality and good performance.

4). Advanced system, with low energy consumption.

5). 304 stainless steel material food tray and inside liner, safety and easy to clean.

6). Transparent organic glass door for direct observation of food processing.

7).Automatic quick defrosting technology

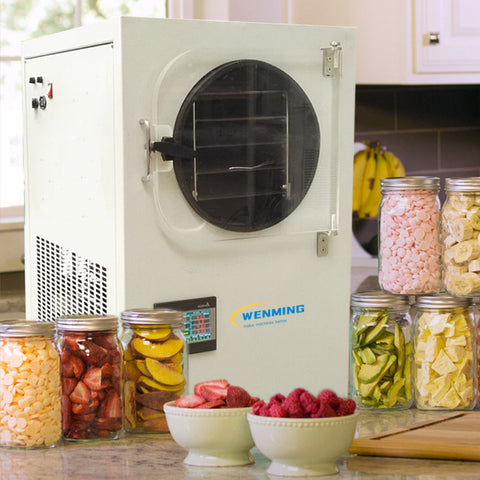

freeze dehydrator

Model

WM-FDG0.1

WM -FDG0.4

WM-FDG0.6

Dry area

0.1m2

0.4m2

0.6m2

Maximum

Vacuum degree

15Pa

15Pa

15pa

Temperature of

cold trap

-40

-40

-40

Drying temperature

-25~+60℃

-25~+60℃

-25~+60℃

Capacity

1-2kg/batch

4-6kg/batch

6-8kg/batch

Power

750w  230v/50hz

1100w 230v/50hz

2300w  230v/50hz

Net Dimension

0.4*0.55*0.7m

0.51*0.7*0.85m

0.7*0.8*1.3m

Net Weight

50kg

80kg

120kg

Features of Industrial Freeze Drying Machine

  1. The vacuum in the drying chamber is oxygen-free, so the easily oxidizable materials are protected.
  2. When drying at low temperature, some of the volatile components in the material are lost, which is suitable for the drying of some chemicals, medicines and foods, and health care products.
  3. Vertical door opening structure, which can realize in-situ lyophilization of materials;
  4. The control system takes PLC as the core and uses the touch screen as the man-machine interface to record the multi-channel temperature data in the freeze-drying process in real time, and can browse in the form of curve. The man-machine interface is clear and intuitive.
  5. The temperature control curve of the shelf can be preset to realize the automation of the sublimation process.Industrial Freeze Dryer.jpg

Model

WM-FDG5

WM-FDG10

Control Method

PLC + Touch Screen

PLC + Touch Screen

Material

304 Stainless Steel

304 Stainless Steel

Drying Area

5m2

10m2

Capacity

50kg/batch

100kg/batch

Tray Size

600*1000*25mm

800*1000*25mm

Tray Number

9

13

Partition Number

13

18

Partition Temperature

-50-120℃

-50-120℃

Vacuum Pump

Bipolar Vacuum Pump

Bipolar Vacuum Pump

Ultimate Vacuum

≤10 Pa

≤10 Pa

Defrosting Method

Hot Water Spray

Hot Water Spray

Power

16KW

28KW

Machine Dimension

3000*1500*1800

3200*1600*2100

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586
Whatsapp/Wechat:  +8615937826701 +8617505235613
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

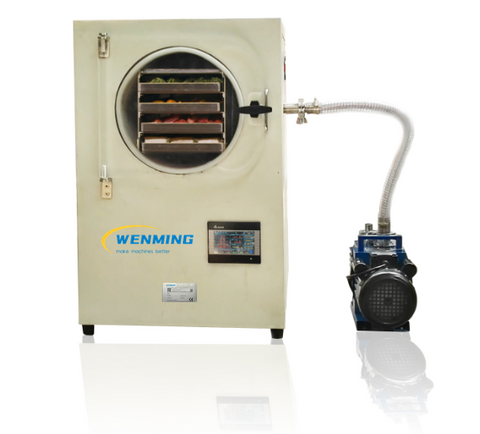

3.Commercial Freeze Dryer Machine Picturs:

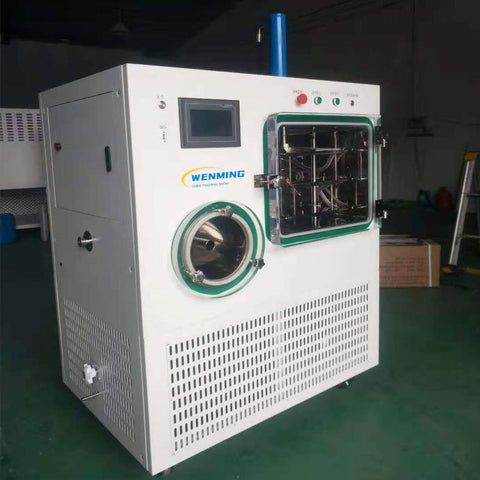

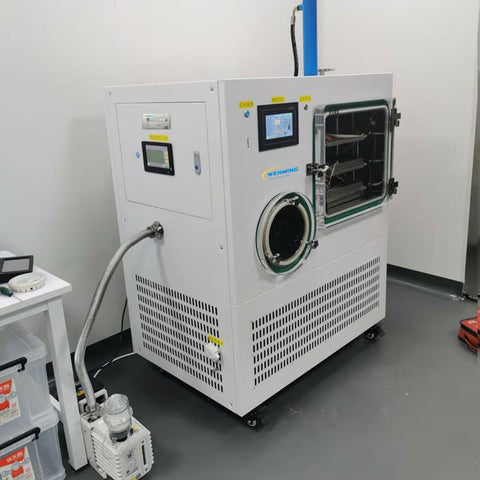

commercial freeze drying Machine food freeze drying machines

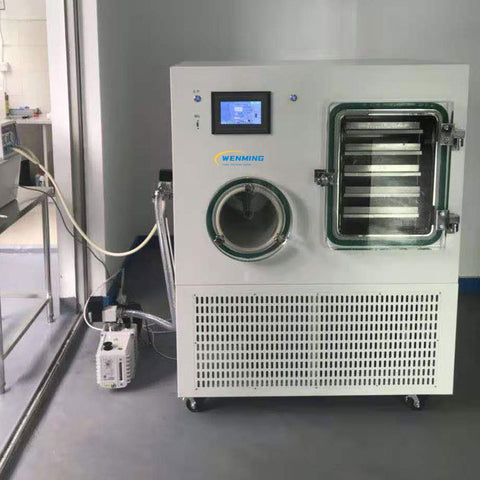

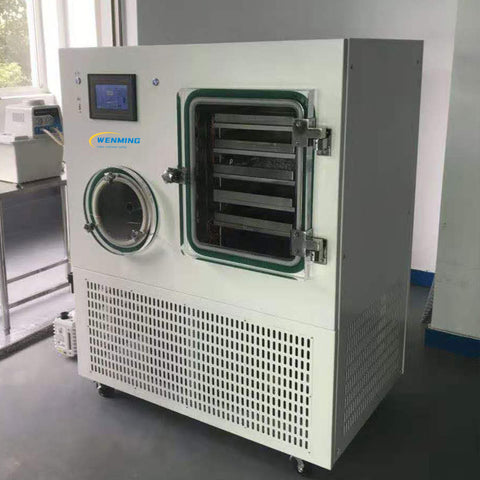

freeze drying machines industrial freeze drying Machine

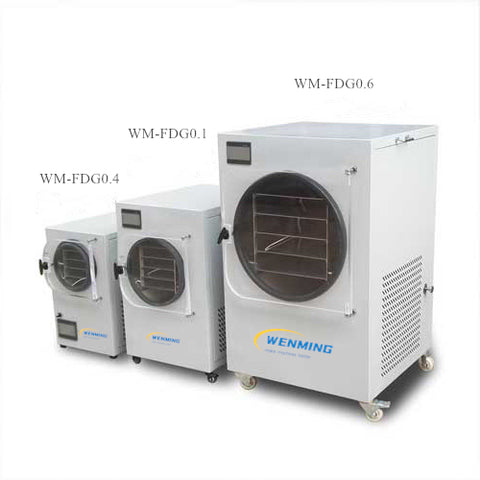

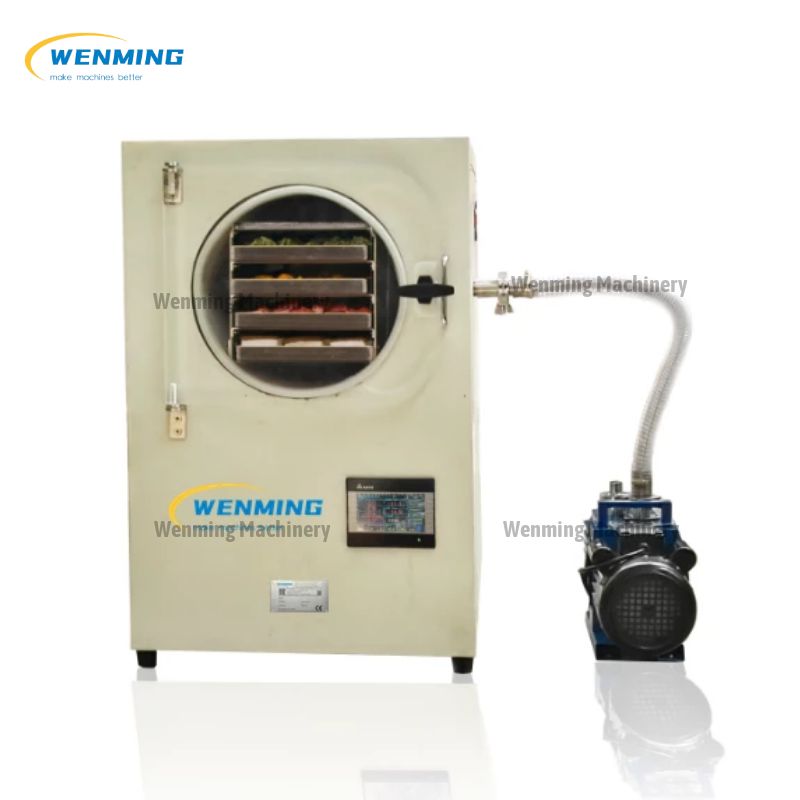

freeze drying equipment Small freeze dryer for sale
