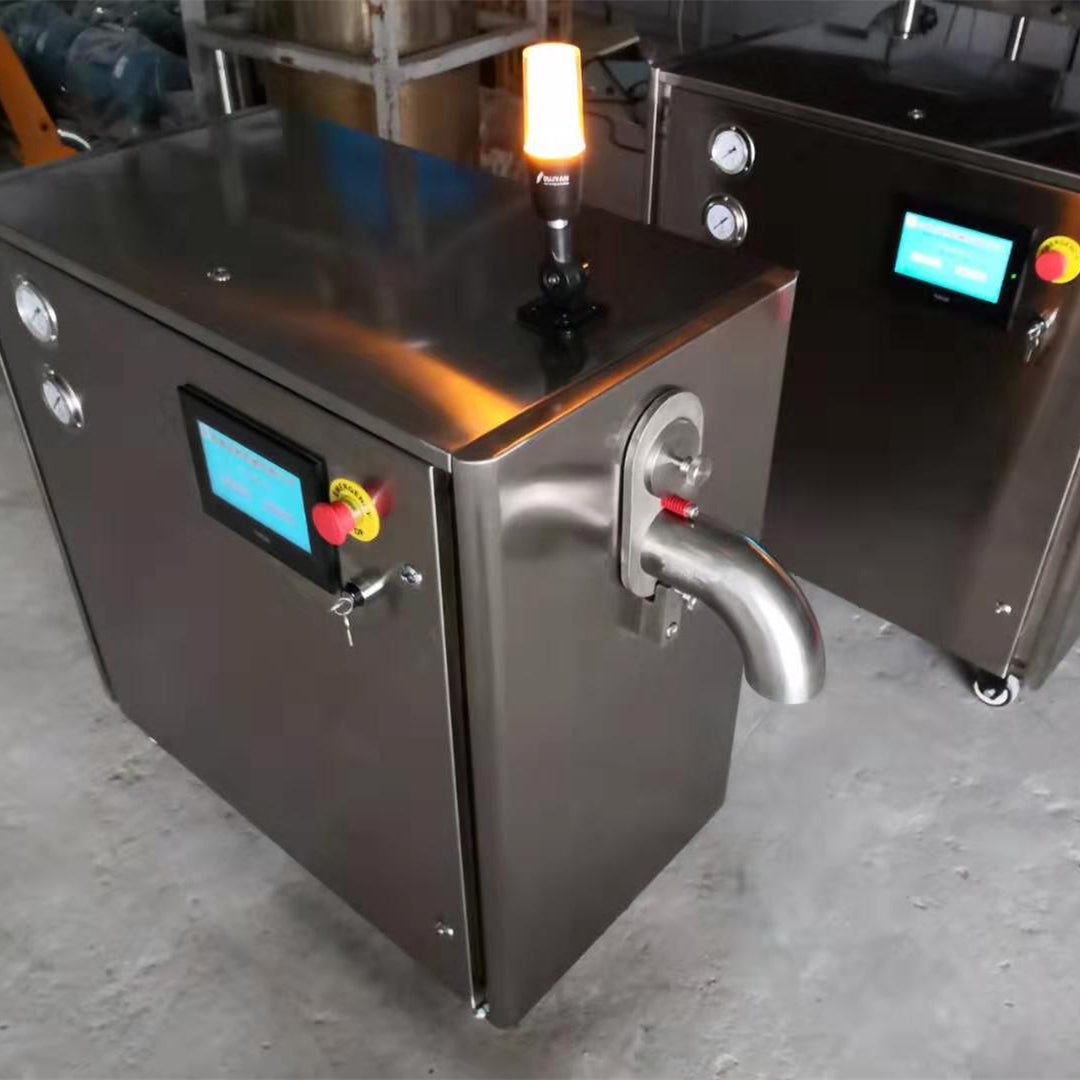

Dry Ice Making Machine dry ice pellet maker
Machine Dry Ice Making Machine Machine introduction
Granular dry ice machine can produce Φ 3mm to Φ 19 mm of high strength, particle or columnar, with its production capacity is 50 kg, 100kg/h,200kg/h different model.. The dry ice production of dry ice making machine is mainly suitable for dry ice cleaning, preservation and transportation at low temperature, stage fog, etc
Dry ice pellet maker Machine
Application:
* High-density pellet dry ice for washing.
* Pellets for cold preservation.
* Produce pellets which are used as raw material for blast cleaning in tire, print and diesel engine repairing enterprise as well as cold-storage transportation.
* Suitable for those Liquid CO2 companies and factories that are going to produce batch dry ice in pellet as well as those who are going to produce in small quantity.
Small dry ice pellet machineFeatures:
- 1.This Commercial Dry Ice Making Machine is made of stainless steel, durable in use.
- 2.The dry ice production of dry ice making machine is mainly suitable for dry ice cleaning, preservation and transportation at low temperature, stage fog etc.
- 3.Fully automatic control of oil temperature and dry ice snowing process guarantees continuous dry ice production without any supervision right from push button start.
- PLC Omron - controls the complete process, injection and hydraulic Independent performance - very constant production, independent of pressure and temperature
- Integrated production control system- definition and supervision of production quantity
- High process reliability - optimized process monitoring provides optimal performance and increases process reliability
- Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users
- Minimum floor space for high production performance
Dry ice manufacturing machine parameters：
|
Model |
WM-GBL50 |
WM-GBL100 |
WM-GBL150 |
WM-GBL200 |
|
Capacity |
50-60kg/h |
100-110kg/h |
150-170kg/h |
200-220kg/h |
|
Dry ice specification (mm) |
Φ3-Φ16 |
Φ3-Φ19 |
Φ3-Φ19 |
Φ3-Φ19 |
|
he conversion ratio of liquid and solid CO2 |
≥ 42% |
≥ 42% |
≥ 42% |
≥ 42% |
|
Power |
3kw |
4kw |
5.5kw |
6.5kw |
|
Voltage |
380v |
380v |
380v |
380v |
|
The density of dry ice(t/m³) |
≥1.55 |
≥1.55 |
≥1.55 |
≥1.55 |
|
Fluid enter pressure (Mpa) |
≤2.1 |
≤2.1 |
≤2.1 |
≤2.1 |
|
Dimension (mm) |
100*50*100cm |
128*60*138cm |
130*65*155cm |
155*70*155cm |
|
Weight |
200kg |
350kg |
600kg |
1300kg |
|
Fuel tank capacity (L) |
100 |
180 |
280 |
280 |
|
Fluid enter inner diameter (mm) |
Φ8 |
Φ10 |
Φ20 |
Φ20 |
|
Exhaust pipe diameter (mm) |
Φ50 |
Φ50 |
2*Φ50 |
2*Φ50 |
50kg per Hour Dry Ice pellet Making Machine Video
Dry ice block maker in our warehouse.
Usully our customer purhcase Co2 Tank with Steel Shelf together to shortage Co2 .
