Factory Supply 32 Trays Rotary Oven
1.Introduction of Rotary Oven:
This bread baking machine is the best baking equipment for cookies, peach cakes, bread, cakes, moon cakes, beef jerky and other food. The converter liner and the shell are stainless steel, clean and sanitary; tight insulation tightly sealed and good insulation performance, the greatest degree of heat loss; hot air convection cycle and slow rotation car combination, so that the various parts of the food in the baking process Uniform heating; furnace with a lighting system, through the door glass can clearly observe the food baking process. The device heating methods are: diesel, gas, electricity three, the user can choose according to the actual situation. Can also be customized according to the special requirements of customers.
2.Technical Parameters of Rotary Oven :
|
Model |
WM-KL12 |
WM-KL16 |
|
Production capacity |
25-35kg/h(depending on the product you baked) |
50kg/h（e.g:bread) |
|
Baking time |
12-30min |
12-30min |
|
Dimension |
1720*1200*2180 |
1850*1580*2150mm |
|
Weight |
500kg |
1000kg |
|
Heating type |
Electric |
Electric |
|
Voltage |
380v50hz 3 phase power
|
380v50hz 3 phase power |
|
Power |
35.75kw |
24KW/h |
|
Model |
WM-100D |
WM-100C |
WM-100F |
|
Heating type |
Electric |
diesel oil |
gas |
|
specified voltage |
~3N380V/50HZ |
~3N380V/50Hz |
~3N380V/50Hz |
|
power |
48KW/h |
100,000 kcal (combustion lamp power) 3KG/h (oil consumption) |
Natural gas (3.1-3.7) ㎡/h Liquefied gas (2.2-3.4) ㎡/h (3L)
gas consumption |
|
drive power |
2.5kw/h |
2.5kw/h |
2.5kw/h |
|
temperature range |
room temperature-400℃ |
room temperature-400℃ |
room temperature-400℃ |
|
production |
100kg/h（e.g:bread) |
100kg/h（e.g:bread) |
100kg/h（e.g:bread) |
|
grill size |
820*670*1700mm |
820*670*1700mm |
820*670*1700mm |
|
grill layers |
16 layers×2=32tray |
16 layers×2=32tray |
16 layers×2=32tray |
|
overall size |
2000*1800*2200mm |
2000*1800*2200mm |
2000*1800*2200mm |
|
Weight |
1300kg |
1300kg |
1300kg |
|
Baking tray size |
400*600mm |
400*600mm |
400*600mm |
Contact Us to Get a Quote
Zhengzhou Wenming Machinery Co.,Ltd
Sales Manager：Phoebe Gao
Office:0086-13-303-831586
Whatsapp/Wechat : +8618337111429
Email: wm06@wmmachinery.com
You can contact us to get more details of machines or let us know your requirement,we can design and manufacture machine according to your need.
Click to leave your information and requirements

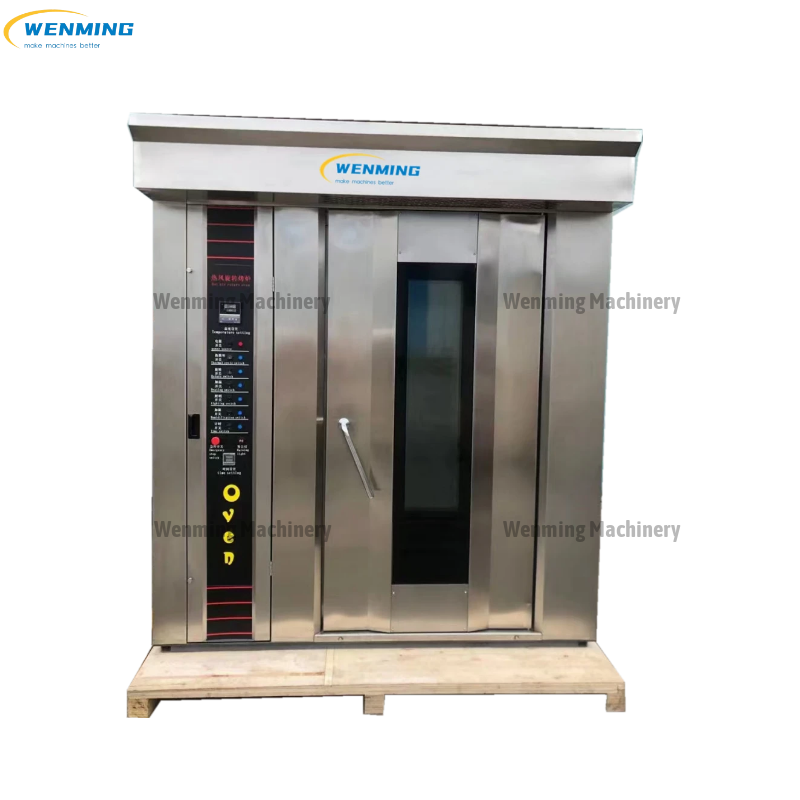

3.Pictures of Rotary Oven:
 |
 |
 |
 |
 |
 |
 |
 |
