Automatic Tortilla Making Machine for Business
1.Flour Tortilla Making Machine Introduce:
1.Pastry sheet machine may manufacture thickness 0.3-0.8millimeter spring roll skin, the curry cutie, the egg skin and the crepes , and may manufacture other laminated , food, suits in the food products factory , the hotel , the fast food restaurant and so on.
2.The Stainless Steel spring roll crepe machine is made of Stainless Steel
3.Spring roll crepe machine uses flour as material, you also can add some spice to make spring roll sheet. Operation is very easy and has high capacity!
4.Spring roll crepe machine can make round or rectangular (need Cutting Part) spring roll sheet. We can make new machines according to your sheet diameter.
Automatic Flour Tortilla Making Machine Advantages:
- Heating methord chooseable electric or gas.
- Diameter standard 150mm or 210mm one line or two line.
- Can also desgin big capacity of 3lines.
- Lumpia wrapper diameter also can do bigger according to your need
- Compact structure, small footprint.
- Easy to repair, easy to operate.
- Made of stainless steel, sturdy, beautiful and durable.
2. Automatic Flour Tortilla Making Machine Technical Parameters:
|
Model |
WM-CJP150-1G |
WM-CJP150-1E |
WM-CJP210-2G |
WM-CJP210-2E |
|
Molds line |
1line |
1line |
2lines |
2lines |
|
Heating method |
Gas |
Electric |
Gas |
Electric |
|
Diameter of spring roll |
≤150mm(also can do bigger, cost increased) |
≤150mm(also can do bigger, cost increased) |
210mm(also can do bigger, cost increased) |
210mm(also can do bigger, cost increased) |
|
The thickness of spring roll |
0.3mm-0.8mm |
0.3mm-0.8mm |
0.3mm-0.8mm |
0.3mm-0.8mm |
|
Diameter of cooking drum |
420mm |
435mm |
620mm |
635mm |
|
Rotating speed of cooking drum |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
|
Power |
0.37kw/220V |
9kw/380V |
0.37kw/220V |
15kw/380V |
|
Capacity |
1000-1200pcs/h |
1000-1200pcs/h |
2000-2800pcs/h |
2000-2800pcs/h |
|
Dimension |
870*750*1170mm |
870*790*1170mm |
1250*750*1170mm |
1250*750*1170mm |
|
Outfeed conveyor belt |
No |
No |
1200*350*700mm(with according to mold size) |
1200*350*700mm(with according to mold size) |
|
Weight |
170kg |
190kg |
270kg |
290kg |
Contact Us to Get a Quote
The one line bigger Diameter that designed for customer:
|
Model |
WM-CJP300-1G |
WM-CJP300-1E |
WM-CJP350-1G |
WM-CJP350-1E |
|
Molds line |
1line |
1line |
1lines |
1lines |
|
Heating method |
Gas |
Electric |
Gas |
Electric |
|
Diameter of spring roll |
300mm |
300mm |
350mm |
350mm |
|
The thickness of spring roll |
0.3mm-0.8mm |
0.3mm-0.8mm |
0.3mm-0.8mm |
0.3mm-0.8mm |
|
Diameter of cooking drum |
480mm |
480mm |
580mm |
580mm |
|
Rotating speed of cooking drum |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
|
Power |
0.37kw/220V |
15kw/380V |
0.37kw/220V |
15kw/380V |
|
Capacity |
1000-1200pcs/h |
1000-1200pcs/h |
1000-1200pcs/h |
1000-1200pcs/h |
|
Dimension |
870*750*1170mm |
870*790*1170mm |
1250*750*1170mm |
1250*750*1170mm |
|
Outfeed conveyor belt |
1200*350*700mm(with according to mold size) |
1200*350*700mm(with according to mold size) |
1200*350*700mm(with according to mold size) |
1200*350*700mm(with according to mold size) |
|
Weight |
300kg |
350kg |
310kg |
360kg |
The two line bigger Diameter that designed for customer:
|
Model |
WM-CJP250-2G |
WM-CJP250-2E |
WM-CJP300-2G |
WM-CJP300-2E |
|
Molds line |
2lines |
2lines |
2line |
2line |
|
Heating method |
Gas |
Electric |
Gas |
Electric |
|
Diameter of spring roll |
250mm |
250mm |
295mm |
295mm |
|
The thickness of spring roll |
0.3mm-0.8mm |
0.3mm-0.8mm |
0.3mm-0.8mm |
0.3mm-0.8mm |
|
Diameter of cooking drum |
620mm |
635mm |
620mm |
635mm |
|
Rotating speed of cooking drum |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
1.5r/min(can be adjusted) |
|
Power |
0.37kw/220V |
15kw/380V |
0.37kw/220V |
17kw /380V |
|
Capacity |
2000-2800pcs/h |
2000-2800pcs/h |
2500-2800pcs/h |
2500-2800pcs/h |
|
Dimension |
1250*750*1170mm |
1250*750*1170mm |
2370*1050*1470 |
2370*1130*1470 |
|
Outfeed conveyor belt |
1200*350*700mm(with according to mold size) |
1200*350*700mm(with according to mold size) |
1200*600*700mm(with according to mold size) |
1200*600*700mm(with according to mold size) |
|
Weight |
300kg |
330kg |
430kg |
480kg |
Aslo can do 3lines for high capacity, the cost will increase, you can let us know if you interested.

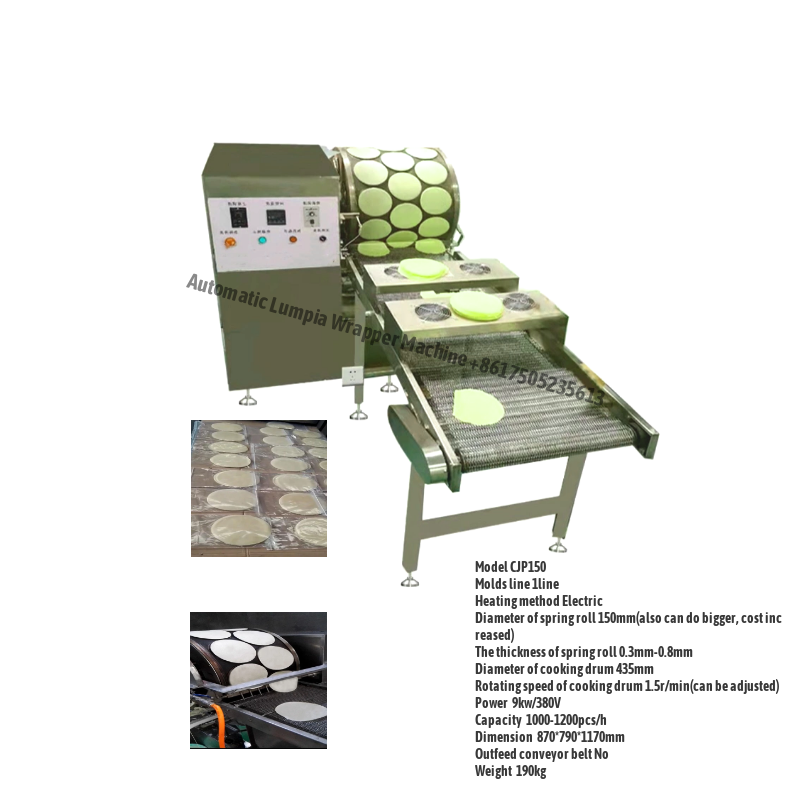

3.Flour Tortilla Making Machine Pictures:
