Leaf Vegetable Juicing Machine do curshing then juicing Machine for vegetables

1.Product introduction of Leaf Vegetable Juicing Machine

The Industrial Crushing Juicer Machine unit is suitable for all kinds of berry,kernel fruitand and vegetables, crush and juice at the same time, also can do the other larger fruit and vegetables cooked to soften for juicing. (tomato juice yield reached 45% ~ 45%).

Commercial Juicer Machine Name principal:

P   ZJ1.5    Spiral juice machine with Crusher

P stands for crushing,this machine first crush the big fruits into pieces or crush the long or high fiber content vegetables into small pieces,then more easy for juicing.

ZJ stands forSpiral juicing

1.5 means,processing Capacity    1.5T

Leaf Vegetable Juicing Machine

Apple Juicer Machine Working principle:

The main component of this equipment is the hopper installed on the crushing plant. There are four groups of fly knife on the rotor, a group dead knife. Fly knife around its own axis in the bottom of a stationary knife gap in rotation. So that fruits and vegetables get broken particle size 2-5 mm,directly into the spiral juicing system,in order to improve the juice result. Then do screw spiral juicing,Spiral path along the bottom slag is expected to export direction gradually increase and screw Distance gradually reduce. When the material is spiral propulsion, for spiral cavity volume shrinking, form for material crushing. Screw spindle rotation direction from the feed hopper to slag trough direction, as the clockwise direction.

Raw material added to the feed hopper,under the propulsion of screw press,the squeezing the juice through the filter into the bottom of the juice machine,Waste is expelled through screw and annular gap formed between the conical part  ,Regulating head along the axial movement cam adjust the gap size。Change the size of the gap,can change slag yield.

2.Technical parameters of Leaf Vegetable Juicing Machine:

Model

Capacity T/h

Power Kw

Size mm

WM-PZJ0.5

0.5

1.5

780×320×860mm

WM-PZJ 1.0

1.0

2.2

880×330×900

WM-PZJ 1.5

1.5

5.5

1500×450×1640

WM-PZJ 2.5

2.5

15

1600×700×1760

WM-PZJ 5

5

30

1900*950*1950

Video connect with the Washing machine,directly washing the fruits or Vegetables then Crushing-juicing.

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586
Whatsapp/Wechat:  +8615937826701 +8617505235613
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

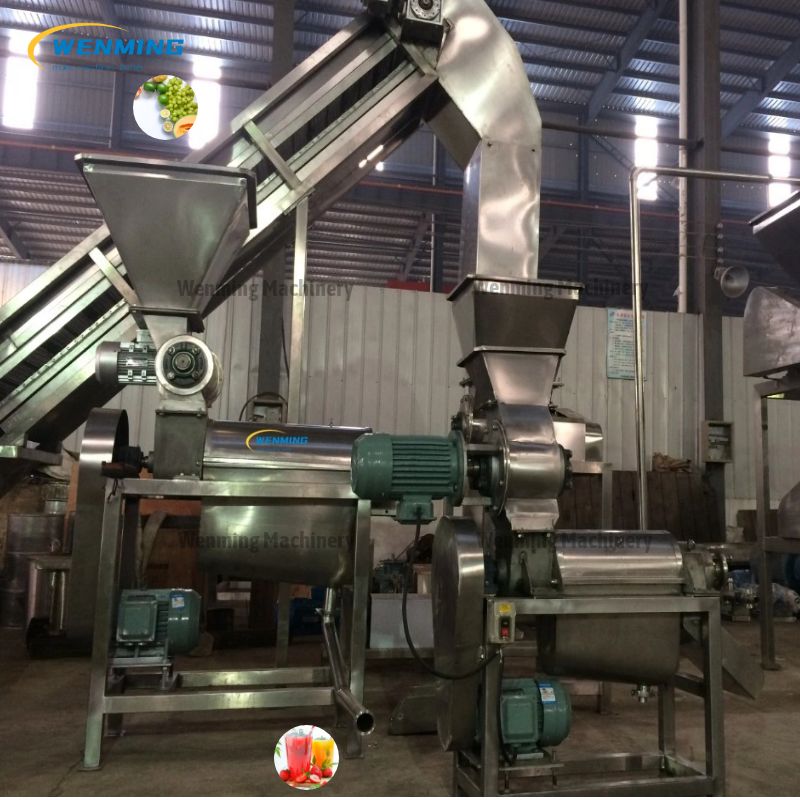

3.Pictures  of Leaf Vegetable Juicing Machine:

Leaf Vegetable Juicing Machine
Leaf Vegetable Juicing Machine
Leaf Vegetable Juicing Machine
Leaf Vegetable Juicing Machine
Leaf Vegetable Juicing Machine
Leaf Vegetable Juicing Machine
