China Supplier Cosmetics Homogenizer Vacuum Emulsifier Mixer Mayonnaise Machine
1: Product Description of Mayonnaise Machine
1: Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2: Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3: Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4:Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5:Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4000 r/min
2: Technical Parameter of Mayonnaise Machine
|
Item |
Model:WM-ZKR400 |
|
400L Main Tank |
Design Volume：500L；Working Volume：400L；minimum working volume：60L |
|
|
Material：inner: 304 with 6mmn thickness；Coil:304 with 4mm thickness；thermal insulation layer：304 with 2mm thickness |
|
|
structure： dished head（Flange connection）；Conical Head |
|
|
Mixing：Variable Frequency : 4Kw/3P 42rpm |
|
|
Mixing Method：Anchor Agitator with Scrapers |
|
|
Bottom-mounted, Split-type Emulsifying Pump (capable of both discharge and in-tank circulation |
|
|
Emulsification Power：7.5w/3P 380V/50Hz 2900rpm |
|
|
Lid Opening Method: Hydraulic Hinged Opening（power：2.2Kw） |
|
|
Heating method: Steam |
|
|
Nozzle Function / Service：Liquid Feed Inlet Sterile Vent Filter (or Breathing Device) Light Glass / Sight Port Sight Glass with Scraper (or Agitated Sight Glass） Vacuum Inlet Spare Connection / Auxiliary Nozzl Vacuum Gauge |
|
|
Temperature Measurement Range: 0~150°C Sensor Type: 4-20mA Temperature Probe |
|
|
Vacuum Pump：3Kw/3P |
|
|
Design Pressure：inner：-0.09Mpa；Coil：0.35Mpa |
|
Discharge Pump |
Rotary Pump：2.2Kw/3P 350rpm（Flow：3T/H） |
|
Control system |
Simens: PLC（Screen: 10inch）；Emergency Stop Switch Pump Switch |
Zhengzhou Wenming Machinery Co.,Ltd
Sales Manager：Ms. Audrey
Office:0086-13-303-831586
Whatsapp/Wechat： +8618703678018
Email: wm18@wmmachinery.com
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.
Click to leave your information and requirements

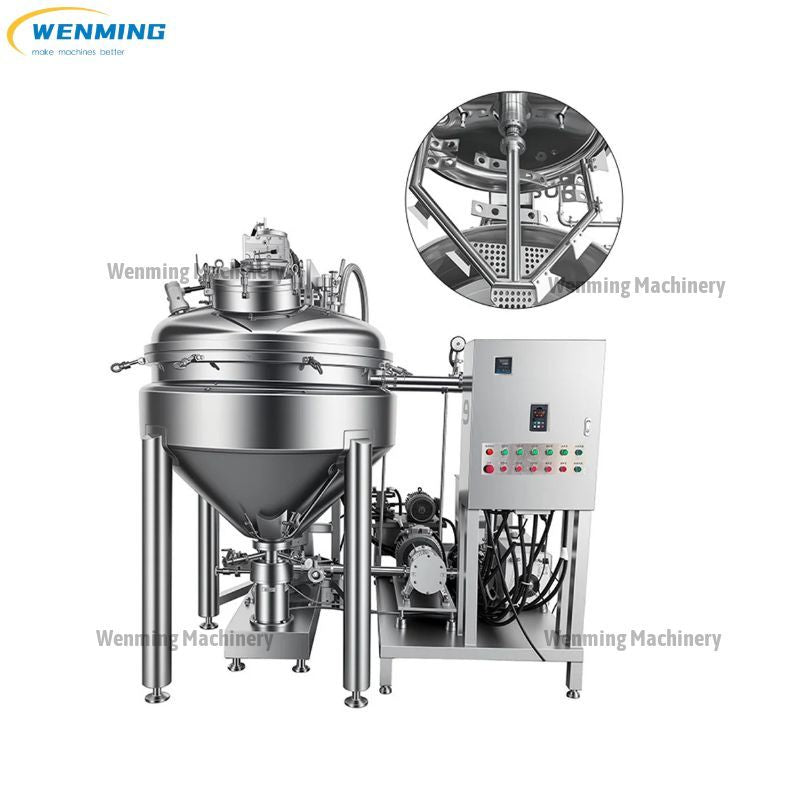

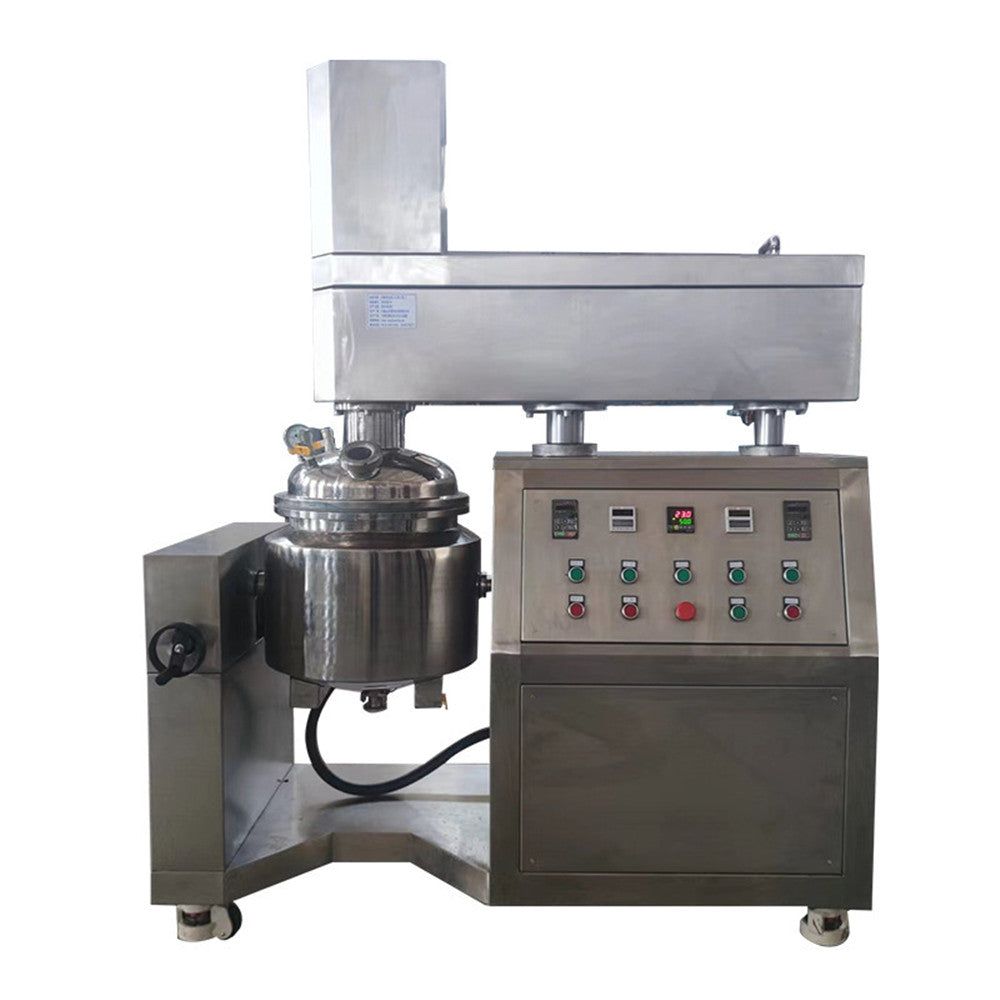

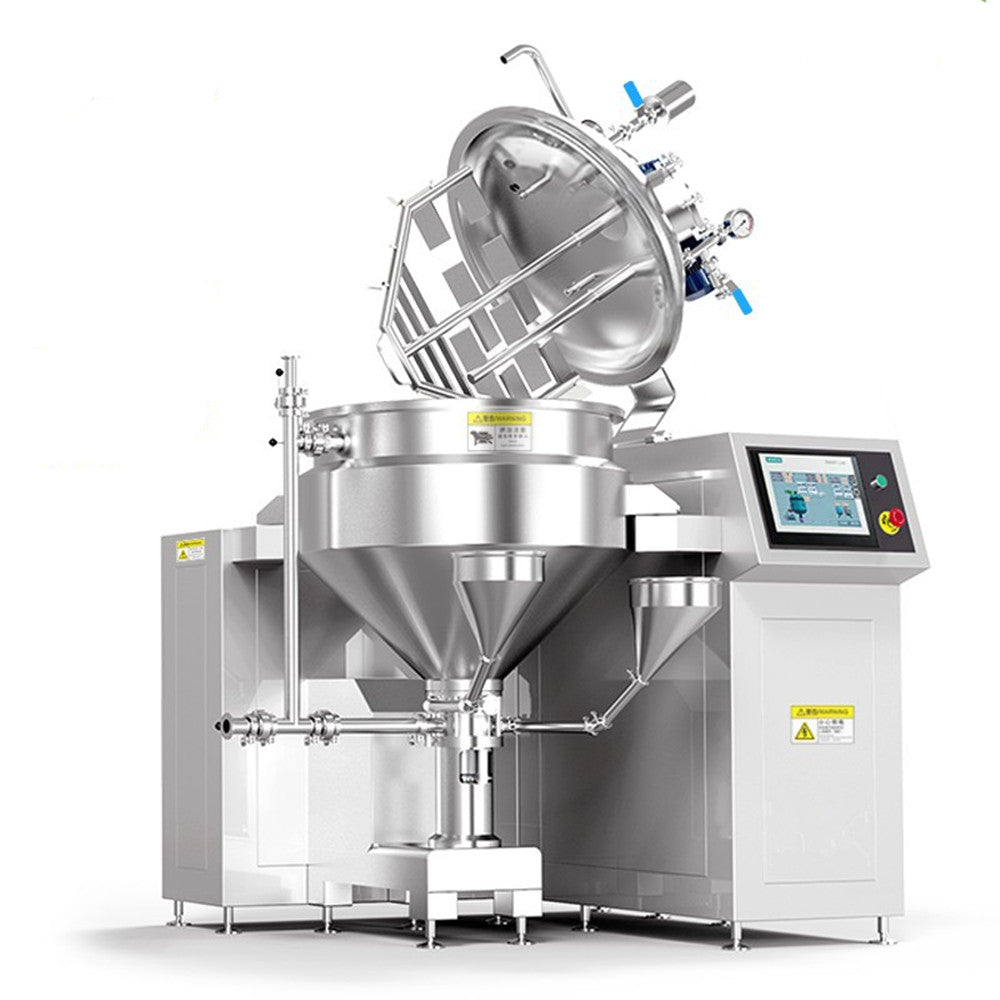

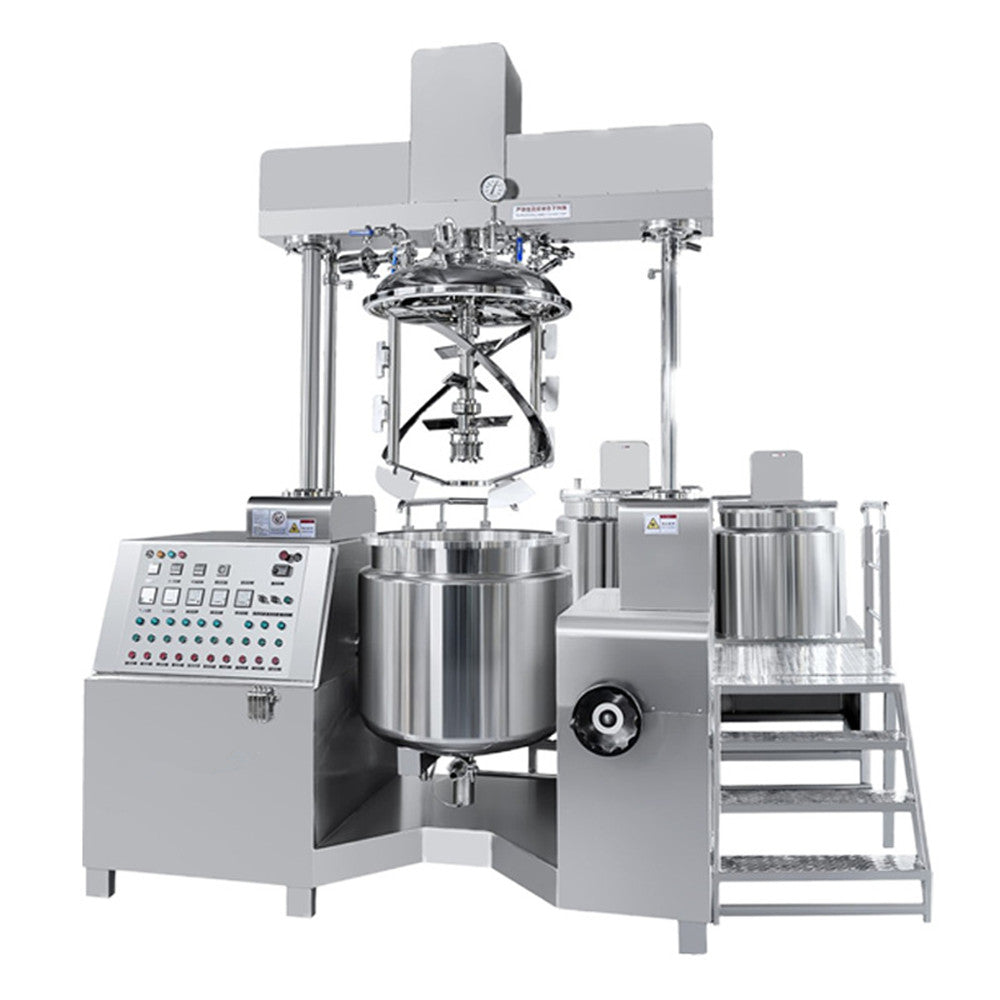

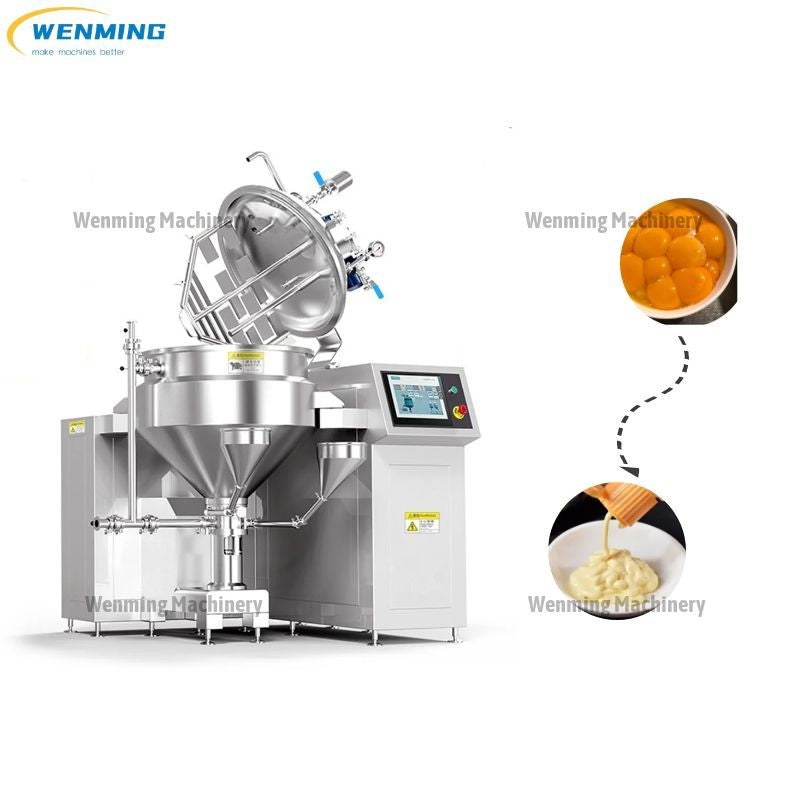

3: Picture of Mayonnaise Machine
 |
 |
 |
