Min Dry Ice Blaster Dry Ice Cleaning Machine for Cars dry ice blasting machine for PCB board

1.Machine Introduce:

The Dry Ice Cleaning does not cause any damage to the surface of the cleaning object, especially the metal surface, nor does it affect the smoothness of the metal surface.

the dry ice blast cleaning machine is mainly used: 1. In automotive industry - to clean carbon deposits inside the engine, mold, as well as wax and polyurethane residue on the car seat tooling. 2. In tire industry - to clean tire mold. 3. In power industry - to clean generator housings, fan blades and power distribution systems, as well as the surface of stators and rotors. 4. In food industry - to clean carbon deposits on conveyor belts, furnaces, baking trays, rollers, and other transport devices. 5. In printing industry - to clean ink and fuel deposits on gears, guides and nozzle.

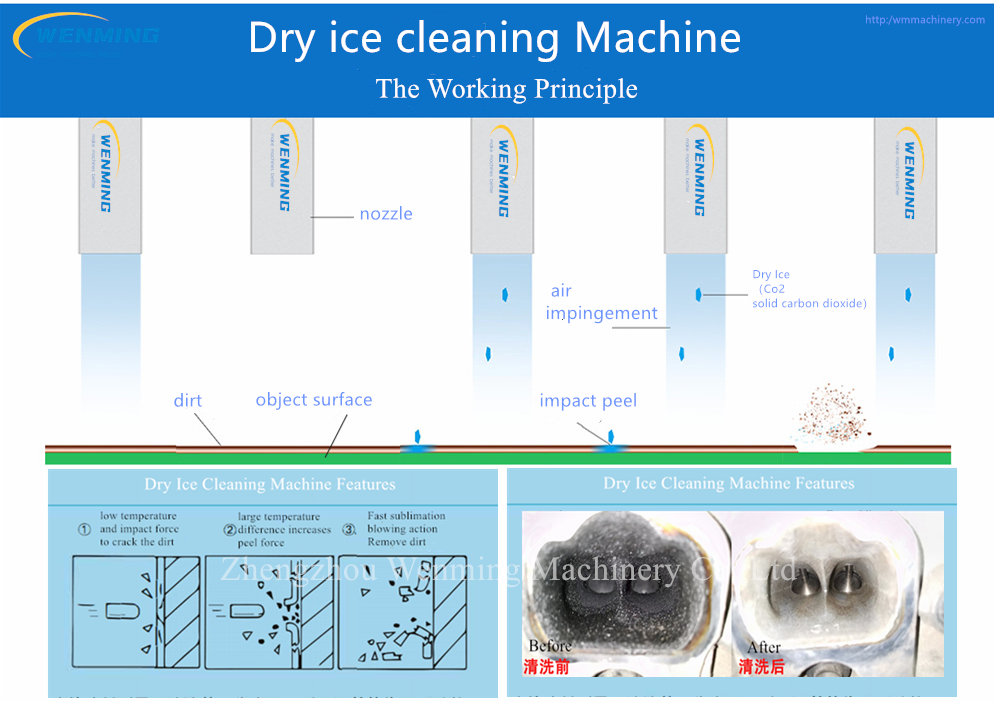

Dry Ice Cleaning Machine Principle

When the equipment is working, the dry ice is transferred into the ice mixing chamber at the discharge port of the funnel. There are grooves on the circumference of the ice cutter wheel inside the ice mixing chamber. The grooves can hold dry ice pellets,The mixed popsicle is driven by the motor to rotate,Dry ice is brought into a relatively closed space by rotating motion, mixed with high-pressure air flow, and then pushed by the air flow through the ice conveying pipe, and is constrained to a specific air flow line by the handle spray gun and sprayed out.It hits the dirt surface and instantly expands about 800 times.After its own volume peels the dirt ff the surface of the object, it is taken away by the airflow.Adjust the appropriate amount of ice output according to the strength of dirt adhesion.

Dry Ice cleaning principle

2.Machine Technical Parameters:

GBQ700 dry ice cleaning machine for cars (Click to see more detsails of this model )

dry ice cleaning machine

GBQ750  Dry Ice Cleaning Machine (Click to see more detsails of this model

dry ice blaster

Model

WM-GBQ700

WM-GBQ750

Voltage

AC220V-50/60HZ

AC220V-50/60HZ

Power

0.375Kw

0.375Kw

Air consumption

28-106CFM

adjustable-80PSI

(0.8-3.0cbm/min

adjustable-5.5 bar)



28-106CFM

adjustable-80PSI

(0.8-3.0cbm/min

adjustable-5.5 bar)



Air supply

0.1-0.9Mpa (1-9bar ) adjustable



0.1-0.8Mpa (1-8bar ) adjustable



Dry Ice in speed

0-1.65 lbs/min (0-0.75Kg/min) adjustable

0-1.2 lbs/min (0-0.55Kg/min) adjustable

Storage of

dry ice hopper

23.5 lbs (10.5Kg)



28.5 lbs (13Kg)

Dry ice state

2.5-3mm(granular)



2.5-3mm(granular)



Protection class

IP54

IP54

Drive Mold

Direct drive

Direct drive

Dimension

(L)510x(W)460x(H)960mm

(L)600x(W)400x(H)850mm

Net Weight

55kg(121lbs)

45kg(100lbs)

GBQ760 dry ice blaster for Cars and industrial (Click to see more detsails of this model)

dry ice blaster machine



GBQ770 dry ice blasting machine dry ice car cleaner (Click to see details of this model)

dry ice engine cleaning



Model

WM-GBQ760

WM-GBQ770

Voltage

AC220V-50/60HZ

AC220V-50/60HZ

Power

0.75Kw

0.75Kw

Air consumption

106-283CFM

adjustable-80PSI

(3-8cbm/min

adjustable-5.5 bar)



141-283CFM

adjustable-80PSI

(4-8cbm/min

adjustable-5.5 bar)



Air supply

0.1-1.6Mpa (1-16bar) adjustable



0.1-1.6Mpa (1-16bar) adjustable



Dry Ice in speed

0-5.5 lbs/min (0-2.5Kg/min) adjustable

0-6.6 lbs/min (0-3Kg/min) adjustable

Storage of

dry ice hopper

33lbs (15Kg)

44lbs (20Kg)

Dry ice state

2.5-3mm(granular)



2.5-3mm(granular)



Protection class

IP54

IP54

Drive Mold

Direct drive

Direct drive

Dimension

(L)400x(W)770x(H)920mm

(L)400x(W)770x(H)920mm

Net Weight

65kg(143lbs)

70kg(154lbs)

GBQ860 Automatic dry ice blaster machine for 3C industry and molds industry(Click to see more detsails of this model)

Pcb cleaning Machine



Model

WM-GBQ860

Feature

Voltage

AC220V-50/60HZ

This Dry Ice cleaning system sprays the dry ice of 0.1-0.2mm diameter, is equipped with the function of pressure adjustment and ice volume adjustment. It is special designed for fine operation condition, widely used in deburring of 3C industry and molds industry.

It has a high degree of modification, connect with the manipulator, it can realize automatic spraying operation, then cleaning more reliable, more sophisticated

Power

0..37Kw

Air consumption

28-141CFM adjustable(4-12cbm/min

adjustable-) -80PSI 5.5 bar

Air supply

0.1-0.8Mpa (1-8bar) adjustable



Dry Ice in speed

0-1.2 lbs/min (0-0.55Kg/min) adjustable

Storage of

dry ice hopper

22lbs (10Kg)

Dry ice state

125*125*250mm(blocks)



Protection class

IP54

Drive Mold

Direct drive

Dimension

(L)510x(W)300x(H)710mm

Net Weight

55kg(121lbs)

GBQ880 Multifunction Dry Ice Cleaning Machine for dry ice engine cleaning and 3c cleaning can do same time (Click to see more detsails of this model)

dry ice blaster dry ice cleaning machine price

Model

WM-GBQ880

Feature

Voltage

AC220V-50/60HZ

Both block&granular dry ice ok,and at the same time. Dual-purpose and can work online at the same time. Spray gently or strongly according to needs.

can use any series of dry ice cleaner nozzles as:







Power

1.85Kw

Air consumption

141-424CFM(4-12cbm/min)adjustable Or 28-141CFM(0.8-4cbm/min) adjustable under  80PSI( 5.5 bar)

Air supply

0.1-1.6Mpa (1-16bar) adjustable



Dry Ice in speed

0-1.2lbs/min (0-0.55Kg/min) adjustable or 2.8-8.8lbs/min(1-4g/min) adjustable

Storage of

dry ice hopper

132lbs(60kg) blocks &22lbs (10Kg) granular

Dry ice state

125*125*250mm(blocks) 2.5-3mm(granular)



Protection class

IP54

Drive Mold

Direct drive

Dimension

(L)1155x(W)7550x(H)1255mm

Net Weight

226kg(498lbs)

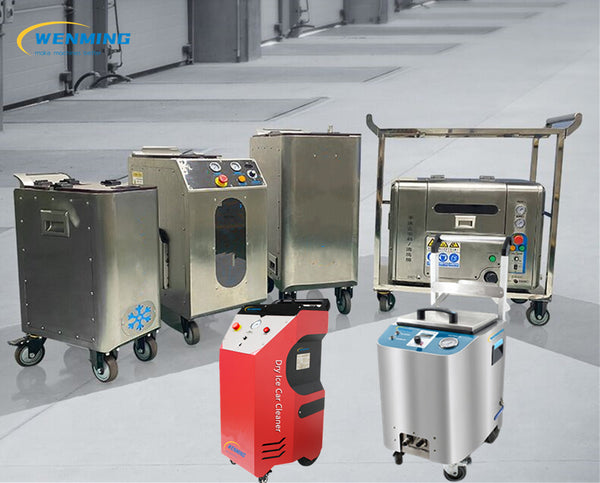

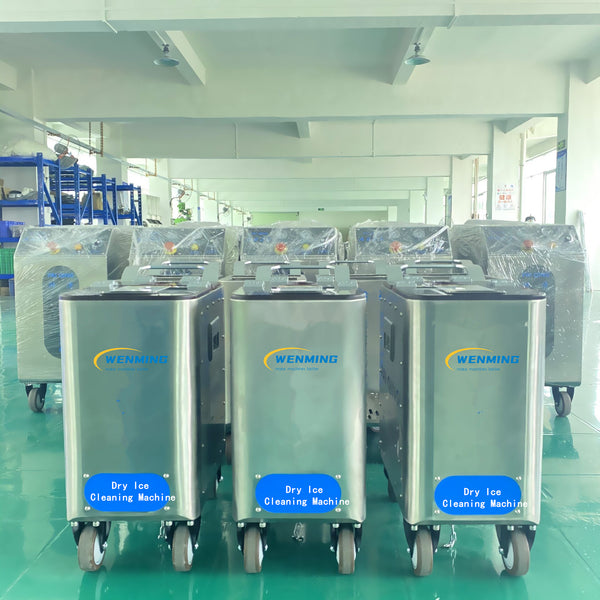

Dry Ice Cleaning Machine in our warehouse

dry ice cleasning machine wmmachinery
Dry Ice Cleaning Machine in our warehouse
