Fully Automatic Modified Atmosphere Vacuum Box Packaging Machine Vacuum Box Packaging Machine
1.Product introduction of Modified Atmosphere Vacuum Box Packaging Machine:
The modified atmosphere box packaging and sealing machine is a device used for modified atmosphere packaging and sealing of boxed products. The following is an introduction to it:
Working principle
● Vacuuming: Put the box with the product into the device, and the device uses a vacuum pump to extract the air in the box to form a certain vacuum degree.
● Inflation: Inflate with nitrogen, carbon dioxide, oxygen and other mixed gases according to the set ratio. Nitrogen can protect the product and prevent oxidation, carbon dioxide can inhibit the growth of microorganisms, and an appropriate amount of oxygen can help some products maintain their color.
● Sealing: After the gas is filled, the box cover and the box body are sealed and combined by heat pressing and other methods to complete the packaging.
2.Technical parameters & Quotation of Modified Atmosphere Vacuum Box Packaging Machine:
|
Model |
Parameter |
|
WM-QDB260-1 |
Power / Voltage: 220V/50Hz Machine Power: 1300W Heat Sealing Power: 1200W Working Air Pressure: 0.6-0.8 Mpa Gas Filling Pressure: 0.5-0.7 Mpa Mold Size: 410*260mm Packing Speed: 3-5 times/min Dimensions: 750*600*1100mm Net weight: 95kg |
|
WM-QDB260-2 |
Power / Voltage: 220V/50Hz Machine Power: 1300W Heat Sealing Power: 1200W Working Air Pressure: 0.6-0.8 Mpa Gas Filling Pressure: 0.5-0.7 Mpa Mold Size: 410*260mm Packing Speed: 3-5 times/min Dimensions: 750*600*1100mm Net weight: 95kg |
|
WM-QDB410-1 |
Power/ Voltage: 220V/50Hz Machine Power: 3500-4000W Heat Sealing Power: 2400W Working Air Pressure: 0.6-0.8 Mpa Gas Filling Pressure: 0.5-0.7 Mpa Mold Size: 590*410mm Packing Speed: 3-5 times/min Dimensions: 1200*1360*1500mm Net weight: 340kg |
|
WM-QDB410-2 |
Power/ Voltage: 220V/50Hz Machine Power: 3500-4000W Heat Sealing Power: 2400W Working Air Pressure: 0.6-0.8 Mpa Gas Filling Pressure: 0.5-0.7 Mpa Mold Size: 590*410mm Packing Speed: 3-5 times/min Dimensions: 1200*1360*1500mm Net weight: 340kg |
|
WM-QDB410-4 |
Power/ Voltage: 220V/50Hz Machine Power: 3500-4000W Heat Sealing Power: 2400W Working Air Pressure: 0.6-0.8 Mpa Gas Filling Pressure: 0.5-0.7 Mpa Mold Size: 590*410mm Packing Speed: 3-5 times/min Dimensions: 1200*1360*1500mm Net weight: 340kg |
|
WM-QDB520 |
Maximum width of roll film：440MM Maximum diameter of roll film:220MM Gas replacement rate:≥99% Gas distribution accuracy :Volatility±2% Packaging speed:5~6times/min Production Capacity Output 1:240box/h Production Capacity Output 2 :400box/h Production Capacity Output 4:700box/h Vacuum Pump Displacement :100㎡/h Source:380V/50hz Total Power:5.3KW Working air pressure:0.6~0.8Mpa Equipment Weight:340KG Equipment Size:1210X1140x1510mm Conversion of packaging gross weight and volume:510KG Packaging box size:1250X1260X1620 aximum size of tray (mm) out of 1:260X170X110mm(x4) 出2Maximum size of tray (mm) out of 2: 260X170X110mm(x4) Maximum size of tray (mm) out of 4: 260X170X110mm(x4) Actual gross weight:407kg Outer hair size:1290*1250*1650mm |
Contact Us to Get a Quote

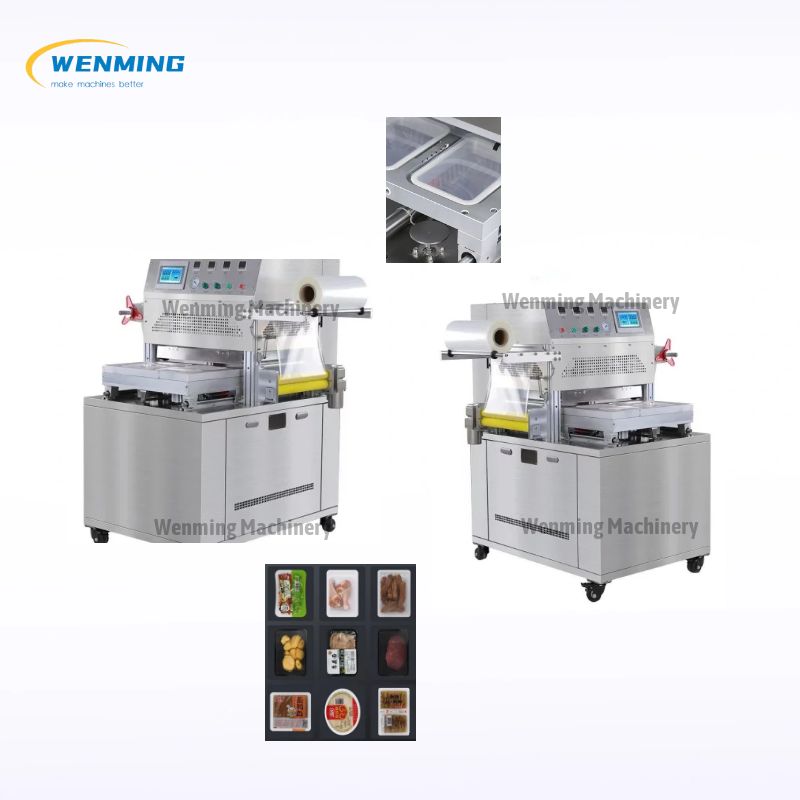

3.Pictures of Modified Atmosphere Vacuum Box Packaging Machine :
|
 |
|
 |
|
 |
