High Quality Paper Bag Making Machine Fully Automatic Handbag Making Machine
1.Product introduction of Paper Bag Making Machine:
This machine can process very thin paper, as well as produce paper bags very fast, thus is especially suitable for being applied in food industries. This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
This machine is used for primary color paper or printed web paper. It is used to make paper bags with pointed bottom at one time.
The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production.
This machine is composed of drum feeding (hydraulic feeding, automatic deviation correction, tension adjustment), side gluing,printing paper electric eye tracking,
base paper into cylinder, fixed-length drawing cutting, bag bottom indentation opening, bag bottom gluing forming, bag out finishing and so on.
The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
2.Technical parameters & Quotation of Paper Bag Making Machine:
Paper Bag Machine Parameter
|
WM-NPZ650 |
|
|
Paper bag length |
150-750mm(L) |
|
Paper bag width |
70-350mm(W) |
|
Paper thickness |
40-80g/㎡ |
|
Machine Speed |
60-400pcs/min |
|
Paper roll width |
220-960mm |
|
Insert Paper Edge |
20-120mm（2M） |
|
Machine power |
8kw |
|
Machine weight |
3500kg |
|
Machine size |
5500x2100x1800mm (L*W*H) |
Fully Automatic Roll Feeding Handle Paper Bag Machine
|
Model |
WM-260T |
WM-290T |
WM-330T |
WM-460T |
WM-680T |
|
Cutting Length (mm) |
190-370 190-260 (T) |
270-520 270-410(T) |
270-520 270-410(T) |
270-520 270-410(T) |
370-760 370-660(T) |
|
Bag Width (mm) |
860-260 150-260（T） |
110-280 180-280(T) |
150-330 200-330(T) |
260-450 260-450(T) |
220-450 240-450(T) |
|
Bottom Width (mm) |
50-100 |
60-180 |
60-180 |
80-180 |
80-220 100-220(T) |
|
Paper Thickness (g/㎡) |
60-150 80-150（T） |
60-150 80-150（T） |
60-150 80-150（T） |
80-150 80-150（T） |
80-160 80-160（T） |
|
Paper Roll Width (mm) |
290-750 430-750(T) |
360-1050 500-1050(T) |
440-1050 620-1050(T) |
700-1300 700-1300(T) |
630-1370 670-1370(T) |
|
Paper Roll Diameter(mm) |
1200 |
1500 |
1500 |
1500 |
1500 |
|
Paper Core(mm) |
76 |
76 |
76 |
76 |
76 |
|
Patch Length(mm) |
114.3 |
152 |
152 |
152/190 |
190 |
|
Patch Width(mm) |
45-50 |
45-50 |
45-50 |
45-50 |
45-50 |
|
Handle Length (mm) |
320 |
320/340 |
320/340 |
320/340 |
320/340 |
|
Handle Distance (mm) |
57.15 |
72 |
72 |
72/85 |
85/92 |
|
Rope Dimension (mm) |
4-5 |
4-5 |
4-5 |
4-5 |
4-5 |
|
Patch Paper Roll Width (mm) |
90-100 |
90-100 |
90-100 |
90-100 |
90-100 |
|
Patch Paper Roll Diameter(mm) |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Patch Paper Thickness (g/㎡) |
100-135 |
100-135 |
100-135 |
100-135 |
100-135 |
|
Mechanical Speed (bags/min) |
30-200min |
30-200 |
30-200 |
30-200 |
30-200 |
|
Production Speed (bags/min) |
30-200 30-160(T) |
30-180 30-150(T) |
30-180 30-150(T) |
30-150 30-130(T) |
30-130 30-120(T) |
|
Power(kw) |
30 |
38 |
38 |
38 |
43 |
|
Weight |
11T |
13.5T |
14T |
15T |
16T |
|
Machine Dimension |
11.6*5*2.4m |
14*5*3.4m |
14*6*2.7m |
15*6*2.7m |
16*6*2.7m |
|
Model |
WM-XKFD330 |
|
Paper Roll Length |
270-530mm（C） |
|
Paper Bag Length |
225-470mm （L） |
|
Paper Bag Width |
120-330mm （W） |
|
Paper Bag Bottom Width |
60-180mm （H） |
|
Paper Thickness |
60-160g/m2 |
|
Max Bag Making Speed |
30-160pcs/min |
|
Paper Roll Width |
385-1050mm |
|
Roll Paper Diameter |
1300mm |
|
Diameter Of Paper Core |
76mm（3”） |
|
Machine Power |
3phase,380v ,12kw |
|
Machine Weight |
8000kg |
|
Machine Size |
9800x3050x1900mm |
|
Model |
WM-XKFD450BT |
|
Cutting Length |
420-760mm |
|
CuttingLength(Ful) |
420-660mm |
|
Bag Width |
200-450mm |
|
Bag Width(Ful) |
250-450mm |
|
Bag Length |
320-680mm |
|
Bag Length(Ful) |
320-600mm |
|
Bottom Width |
80-240mm |
|
Paper Thickness |
80-160g/㎡ |
|
Paper Thickness(Ful) |
80-160g/㎡ |
|
Paper Roll Width |
590-1410mm |
|
Paper Roll Width(Ful) |
690-1410mm |
|
Roll Paper Diameter |
ф1300mm |
|
Paper Core |
ф76mm |
|
Handle Height |
100mm |
|
Patch Length |
190.8mm |
|
Patch Width |
40-50mm |
|
Handle Distance |
95mm |
|
Rope Diameter |
Ф4-6mm |
|
Patch Paper Roll Width |
80-100mm |
|
patch Paper Roll Diameter |
ф1000mm |
|
Patch Paper Thickness |
100-135g/㎡ |
|
Machine Speed |
30-200bags/min |
|
Production Speed for Bags Without Handles |
30-150bags/min |
|
Production Speed for Bags With Handles |
30-100bags/min |
|
Cutting Knife |
Sawtooth cutting |
|
Power Supply |
380V 3Phase 25.5KW |
|
Machine Weight |
17000kg |
|
Machine Size |
13500x5300x2550mm |
Contact Us to Get a Quote

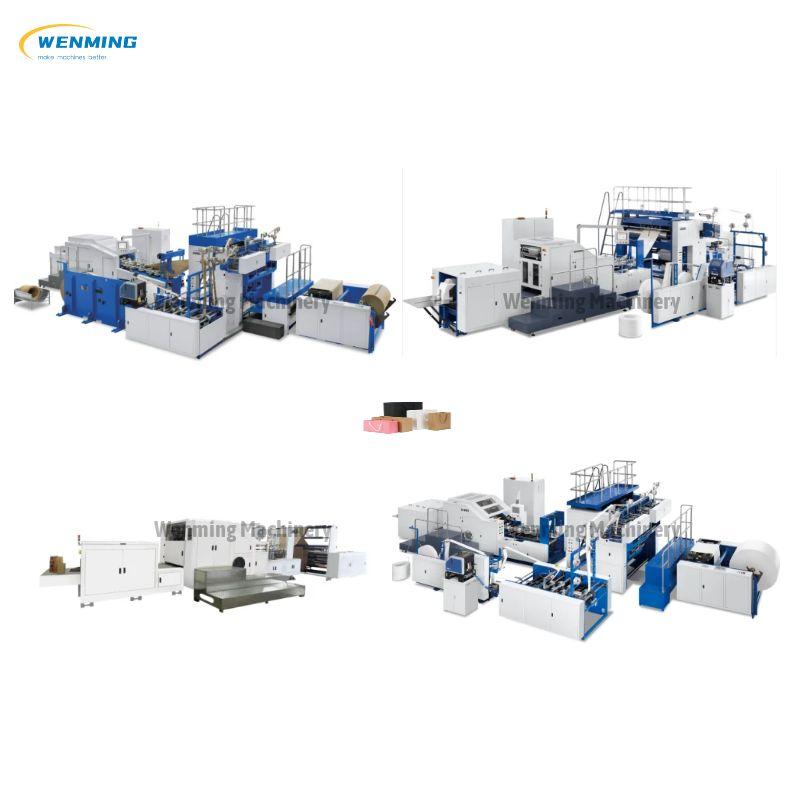

3.Pictures of Paper Bag Making Machine:
 |
 |
 |
 |
 |
 |
