Pneumatic Air Rivet Nut Gun Riveting Machine
1.Introduction of Rivet Nut Gun Riveting Machine:
1. When purchasing a feeder, you must provide the actual nuts. Each machine can only lock nuts of one specification.
2. Delivery date will be determined by mutual agreement.
3. The feeder's cylinder, solenoid valve, and filter are AirTac brand.
4. The feeder's nut output is very stable.
External Unit Buttons:
1. Feeding Port: Opens the transparent acrylic window to access the feeding window.
2. Cable Outlet: Outlet for air pipes and electrical wires.
3. Display: Displays various parameters.
4. Nail Feed Pressure Gauge: Displays the air pressure for feeding and blowing nuts (this gauge only controls the air pressure for blowing nuts, typically set to 0.5 MPa).
5. Test Button: Press this button to automatically feed nuts, typically for testing purposes.
Nut Feed Pressure Regulator: Adjusts the air pressure for feeding nuts (pull the regulator cap clockwise to increase, counterclockwise to decrease). (Press the adjusting cap after adjustment.)
6. Total Air Pressure Regulator: Adjusts the total air pressure (pull the adjusting cap clockwise to increase, counterclockwise to decrease, and press the adjusting cap after adjustment.)
7. Start Switch: Turns the device on (the switch has an indicator light).
8. Total Air Pressure Gauge: Displays the total air pressure (the pressure must not be less than 0.5 MPa).
9. Power Supply: Connect to a 220V power supply (the power supply must be grounded) at the lower left corner of the back of the device.
10. Air Supply: Connect to a 10.0 mm diameter air pipe at the lower left corner of the back of the device.
2.Technical Parameters of Rivet Nut Gun Riveting Machine:
|
Model |
WM-RN100 |
|
Power |
100w |
|
Voltage |
220V |
|
Nut application range |
M3-M6 |
|
Remarks:the machine need to work with air compressor, 750w air compressor is enough, you can buy it at your local side |
|
Contact Us to Get a Quote
Zhengzhou Wenming Machinery Co.,Ltd
Sales Manager：Phoebe Gao
Office:0086-13-303-831586
Whatsapp/Wechat : +8618337111429
Email: wm06@wmmachinery.com
You can contact us to get more details of machines or let us know your requirement,we can design and manufacture machine according to your need.
Click to leave your information and requirements

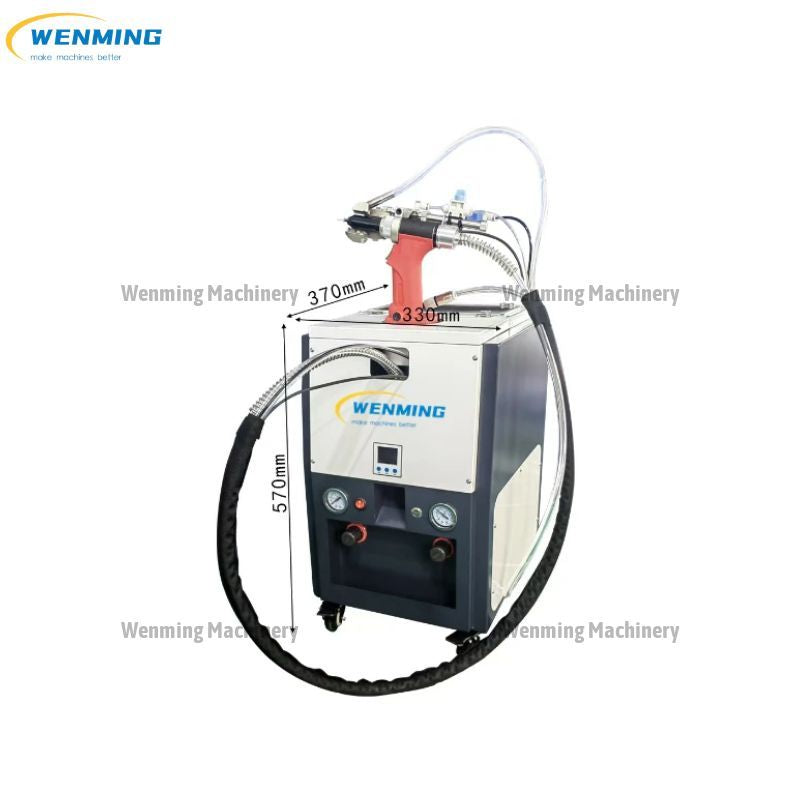

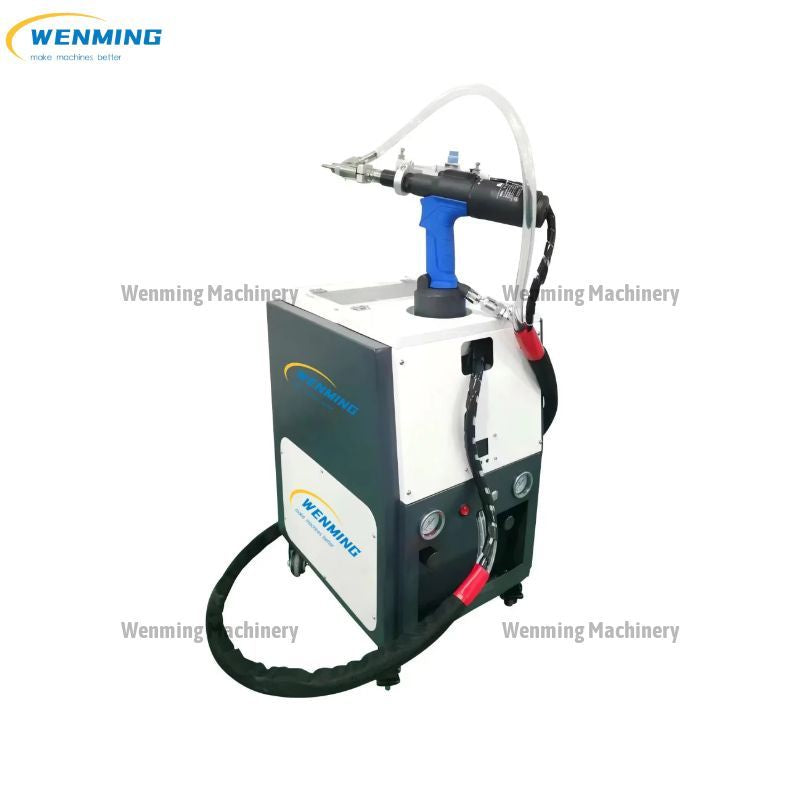

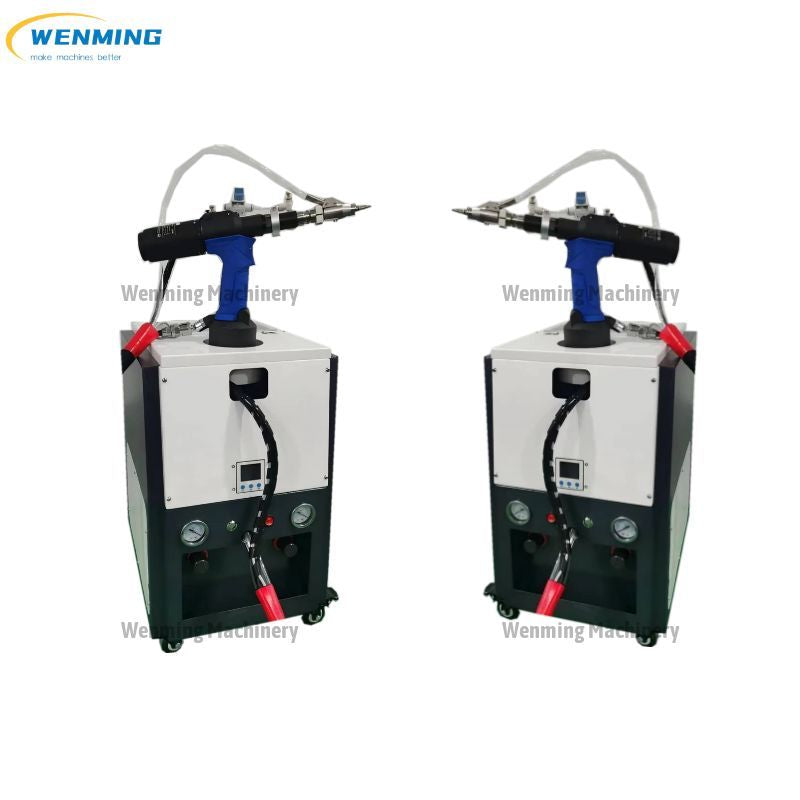

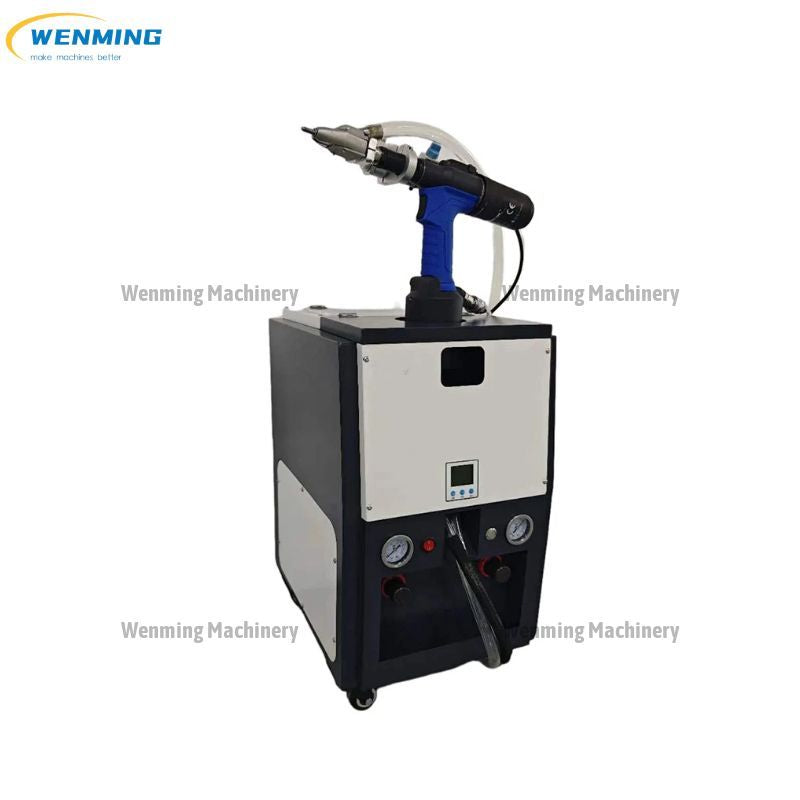

3.Pictures of Rivet Nut Gun Riveting Machine:
 |
 |
 |
 |
