Practical Multifunctional Seedling Planter Machine hot sale best price

Agricultural machine-WM machinery

Regular price $4,550.00 USD
Regular price Sale price $4,550.00 USD
Sale Sold out
Shipping calculated at checkout.
model
wenming-machinery-payment-guarantee

Tell us your requirements to get best quote

Mobile/Wechat/Whatsapp:+8618838002509

Email: wm21@wmmachinery.com;

Lexie Han--Sales Manager

Zhengzhou Wenming Machinery Co.,Ltd

Office: 0086-1330-3831-586

You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

Click to leave your information and requirements.

Warranty of our machines

All WM Machines will pass strict inspection before shipping, the guarantee period is two years, any part broken we can offer for free. And we will offer lifetime technical support.

Click to check details:Warranty.

Shipping cost checking.

Because machines are with bigger size and weight,
different machine modify, different Packing size and weight. Both the size/weight, and delivery address will affect much to the shipping cost.  Please confirm the shipping cost with us, we
will recommend you the best shipping methods and costs for choose.

Whatsapp/Wechat:+8615937826701

Email:wm21@wmmachinery.com

             Practical Multifunctional Seedling Planter Machine hot sale best price

1.Product introduction of Seedling Planter Machine:

The loading and conveying device has a frequency conversion speed control system, which matches the speed of the next process. With automatic photoelectric induction detection system, no soil is loaded and no seeds are sown. With the one-button operation system, the soil spreading, hole pressing and seeding are integrated to complete a simple, practical and fast seed recovery device, so that the seeds are not wasted. It is applicable to seeds between 0.3-12mm, with unlimited seed shape and wide application range. You can choose to add soil loader and sprinkler.



1. All are made of stainless steel.

2. According to different seeds and seeding requirements, corresponding seeding plates and seed suction nozzles shall be equipped. The minimum size of seeds shall be greater than 0.3mm and the maximum size shall not exceed the size of soybeans. Conventional pepper, tomato and grass flower seeds are applicable.

3. It can be equipped with 21, 32, 50, 72,105,128,200 holes of seeding plate. The seeding plate is matched with the hole plate, and the hole plate must be 540 * 280mm in size.

4. The depth of seed insertion into the substrate can be adjusted according to the growth requirements of different varieties.

5. One plate at a time when seeding, and the seeding speed is more than 600 plates per hour.

6. The machine is small in size, light in weight, flexible in operation and simple in structure.

2.Technical parameters & Quotation of Seedling Planter Machine:

                       Small one-size-fits-all seedling machine

Model

WM-YM300

Dimension

2000*900*1100mm

Weight

80kg

Capacity

200-300plate/h

Voltage

220V

Power

265W

Air compressor power

4kw

work process

Pressing holes - sowing - covering soil

Seeding accuracy

95%-98%

working principle

Electric and Air Compressor



WM-YM800 Automatic Seedling System Production Line

Product

Specification











Matrix Tray Loading Machine

①  Dimensions (mm): 1200*900*1400;

② Machine power/voltage: 265W/220V;

③ Maximum size of applicable plug tray (mm): 600*400;

④ The feeding and conveying device is equipped with a variable frequency speed regulation system, which fully matches the speed of the next process;

⑤ It has an automatic detection photoelectric sensing system, and it will not feed if there is no tray. When the soil is full, it will automatically detect and stop











Needle suction seeder/stand-alone

① Overall dimensions (mm): 1200*900*1100;

② Machine power/voltage: 120W/220V;

③ The equipment is equipped with a needle unblocking function to ensure that the needle is unblocked during operation;

④ High-precision infrared sensing system is used for precise positioning;

⑤ The equipment is equipped with a customized mesh seed bucket, which plays a role in filtering impurities during operation to ensure the sowing rate;

⑥ High-precision electrical control system to ensure that seeds can be accurately sown into the holes;

⑦ Special seed recovery device to prevent seed waste;

⑧ Suitable for seeds between 0.3-15mm, with no restrictions on seed shape.







Soil Covering Machine

①  Dimensions (mm): 1200*900*1400;

② Machine power/voltage: 120W/220V;

③ The conveying device is equipped with a variable frequency speed regulation system to ensure the synchronous operation of the assembly line;

④ It has a photoelectric sensing system to automatically complete the soil covering operation;

⑤ Simply adjust the upper and lower scraper brushes to meet the required soil covering amount of the hole tray.









Sprinkler

① Dimensions (mm): 1200*900*1400;

② Power/voltage: 120W/220V;

③ The conveying device is equipped with a variable frequency speed regulation system to ensure synchronous operation of the assembly line;

④ It has a photoelectric sensing system to automatically complete the water spraying and atomization operation;





Conveyor Belt

① Dimensions (mm): 1200*900*1400

② Power/voltage: 120W/220V;

③ The conveying device is equipped with a variable frequency speed regulation system to ensure synchronous operation of the assembly line;

Air Compressor

① 3kw; 0.36m³/min; 8HP

② Capacity 80L, weight 80kg,

Feeder

① Dimensions (mm): 2200*900*400;

② Power/voltage: 120W/220V;

Blender

① Overall dimensions (mm): diameter 1200, height 1200, single 150 kg ② Machine power/voltage: 3.3KW/380V

Decompression machine

① Dimensions (mm): Length, width and height 2000*900*1000, capacity 300 liters

② Power/voltage: 4KW/380V

 Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586
Whatsapp/Wechat: +8618838002509
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

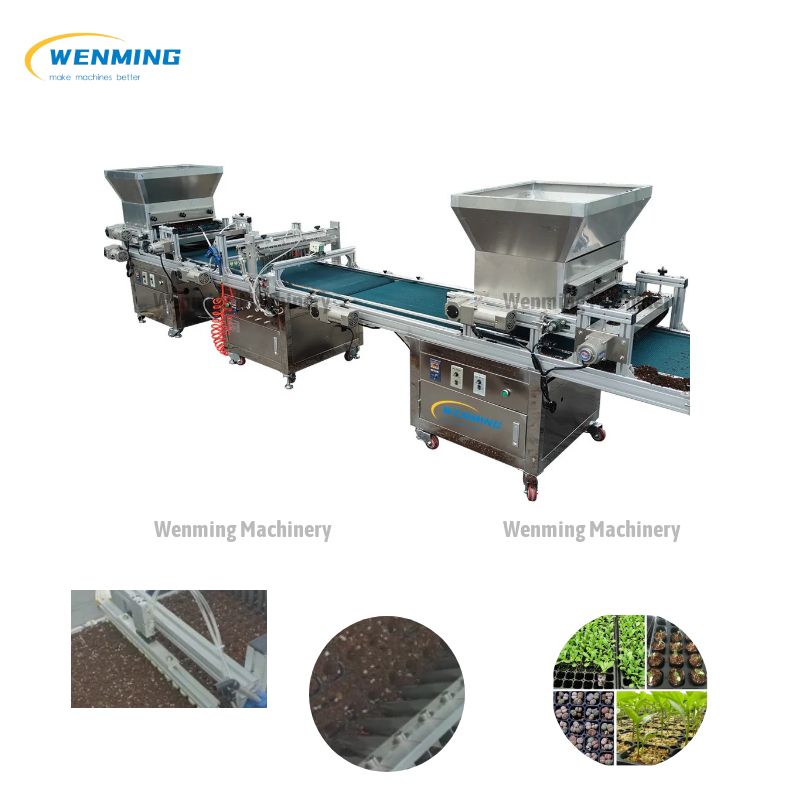

3.Pictures  of Seedling Planter Machine:

Seedling Planter Machine
Seedling Planter Machine
Seedling Planter Machine
Seedling Planter Machine
Seedling Planter Machine
Seedling Planter Machine
