High Quality Motar Spraying Machine Hot Sale Best Price
1.Product introduction of Motar Spraying Machine：
Mortar Spraying Machine
Mortar spraying machine is mainly used for building internal and external wall surface goods mixed mortar, putty powder, refractory coating and pressure grouting.Highway, railway tunnel, urban subway, hydraulic power station underground caverns, such as grouting engineering, can be used in dam, slope, soft rock reinforcement soil grouting engineering.
Motar Spraying Machine is mainly a mechanical device that disperses mortar into a mist and sprays it onto the surface of the coated object. The materials are connected through pipes such as screw pumps and plunger pumps and transported to the front end. Through high-pressure gas blowing, the materials are evenly sprayed onto the surface of the object.
2.Technical parameters & Quotation of Motar Spraying Machine：
|
Model |
WM-PTJ311 |
WM-PTJ511 |
WM-PTJ711 |
|
Conveying Pipe Diameter |
32mm |
38mm |
38mm |
|
Air Pump Power |
2.2kw |
2.2kw |
3kw |
|
Motor Power |
4kw |
7.5kw |
9kw |
|
Voltage |
380V Three Phase Electric/Diesel Engine |
380V Three Phase Electric/Diesel Engine |
380V Three Phase Electric/Diesel Engine |
|
Spraying Area |
150-170 ㎡/h |
180-200 ㎡/h |
220 ㎡/h |
|
Working Pressure |
5-8mpa |
5-8mpa |
5-8mpa |
|
Conveying Flow |
3m³/h |
4m³/h |
4m³/h |
|
Water:Cement:Sand |
1:01:03 |
1:01:03 |
1:01:03 |
|
The Maximum Passing Particle |
4mm |
7mm |
7mm |
|
Maximum Vertical Distance |
10-15m |
15-20m |
20-25m |
|
Maximum Horizontal Distance |
25-35m |
30-40m |
40-50m |
|
Overall Dimensions |
1600*450*900mm |
1700*600*1100mm |
1800*650*1000mm |
|
Total Weight |
150kg |
300kg |
320kg |
|
Scope of Application |
motar,putty,paint,etc |
motar ,putty,paint,etc |
motar ,putty,paint,etc |
Contact Us to Get a Quote

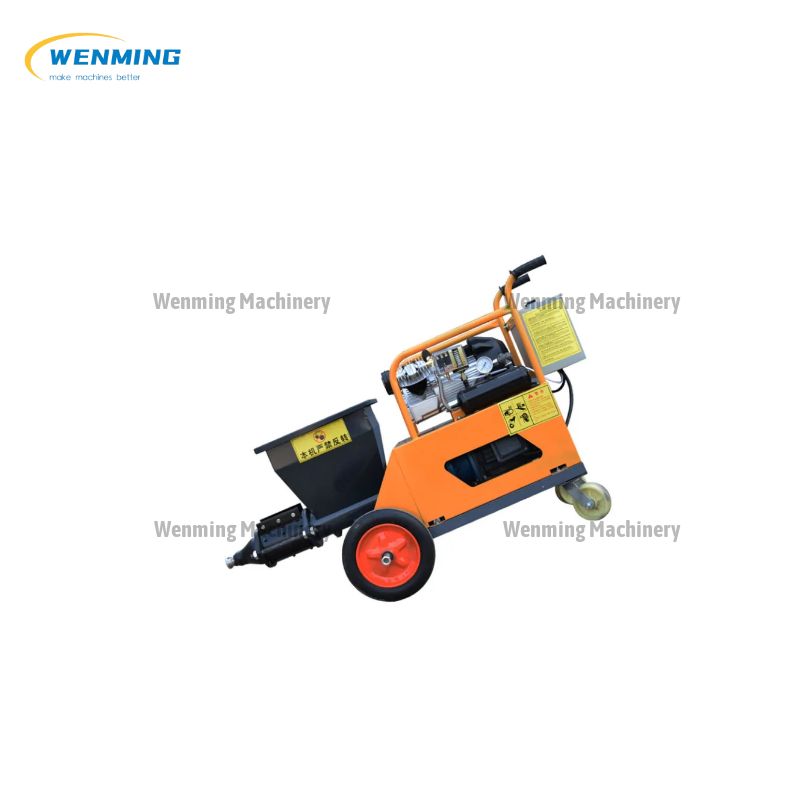

3.Pictures of Motar Spraying Machine:
 |
|
 |
 |
