High Quality Steel Bar Straightening And Cutting Machine Hot Sale
1.Product introduction of Steel Bar Straightening And Cutting Machine：
Steel Bar Straightening And Cutting Machine is a machine used in the construction and hardware industries, mainly used to straighten and cut bent steel bars into the required length.
1. Basic Overview
Steel Bar Straightening And Cutting Machine also known as the straightening and cutting machine, is a mechanical equipment specially used for straightening and cutting steel bars.
Alias: In addition to the steel bar straightening machine, it is also called the straight wire machine, straight line machine, etc.
2. Working principle
Straightening principle: The steel bar passes through the high-speed rotating straightening cylinder, and the angle is adjusted by the straightening die to achieve the straightening effect.
Cutting principle: When the steel bar reaches the predetermined length, the upper knife holder is hammered by the up and down movement of the hammer head to achieve the fixed length cutting of the steel bar
3. Steel Bar Straightening And Cutting Machine Main features
Reasonable structure: The machine is compact in design, easy to operate, safe and reliable.
High degree of automation: Equipped with an automatic counting and stopping device to improve work efficiency and safety Cutting principle: When the steel bar reaches the predetermined length, the upper knife holder is hammered by the up and down movement of the hammer head to achieve the fixed length cutting of the steel bar
2.Technical parameters & Quotation of Steel Bar Straightening And Cutting Machine：
|
Model |
WM-GQ40 |
|
Cutting range |
A3 round steel: 4-12mm |
|
Grade III threaded steel :4-10mm |
|
|
Cutting frequency :25-35m /min |
|
|
Straightening wheel size |
48*57mm |
|
Motor power |
7.5kw |
|
Voltage |
380V, 50Hz |
|
Motor speed |
1440rpm |
|
Blade size |
83 * 83 * 26mm |
|
Weight: |
350kg |
|
Dimensions |
1500*660*910mm |
Contact Us to Get a Quote
Zhengzhou Wenming Machinery Co.,Ltd

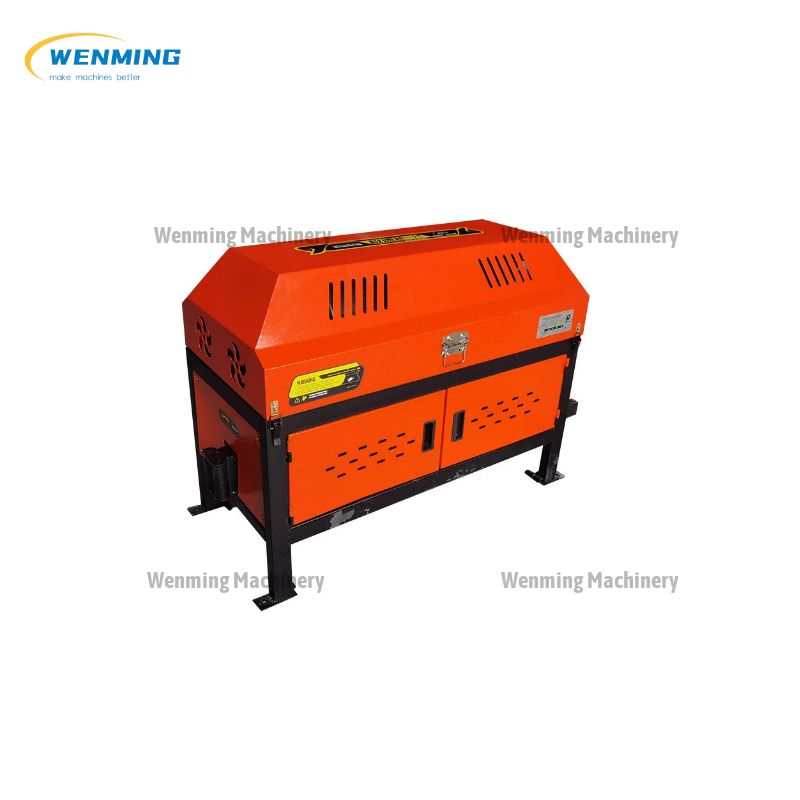

3.Pictures of Steel Bar Straightening And Cutting Machine :
|
 |
 |
 |
 |
 |
